Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console)

Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console)

  1. Disable the SIR system. SIR Disabling and Enabling
Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console) — figure 1
Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console) — figure 1
  1. Floor Rear Air Outlet Duct Adapter - Right Side (1) » Remove
  2. Remove the passenger seat. Front Seat Removal and Installation
Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console) — figure 2
Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console) — figure 2

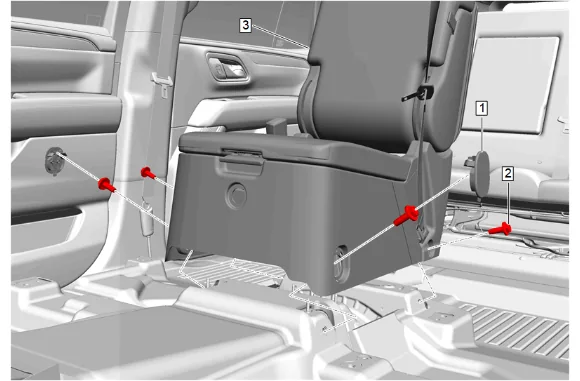

  1. { If equipped } Front Center Seat (3) » Remove — Front Center Seat Removal and Installation
Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console) — figure 3
Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console) — figure 3

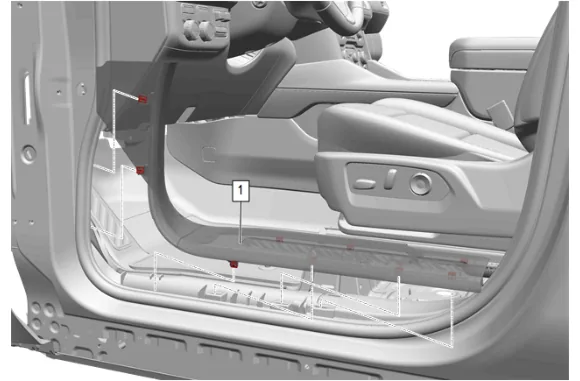

  1. Starting at the rear of the right front side door sill garnish molding (1) pull upward at the B- pillar joint to disengage the garnish molding.
  2. Work your way forward disengaging all the front side door sill garnish molding retaining clips and then pull rearward to disengage the 2 retaining clips on the forward vertical wall.
  3. Front Side Door Sill Garnish Molding - Right Side (1) » Remove
Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console) — figure 4
Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console) — figure 4

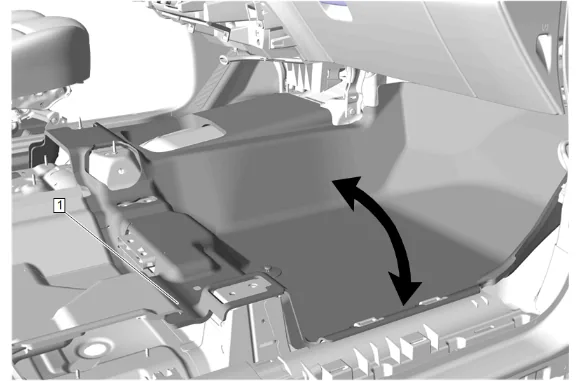

  1. Reposition the right side of the front floor panel mat (1) towards the left side to access the floor rear air outlet duct.
Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console) — figure 5
Floor Rear Air Outlet Duct Replacement - Right Side (9C1, BG9, without Front Floor Console) — figure 5

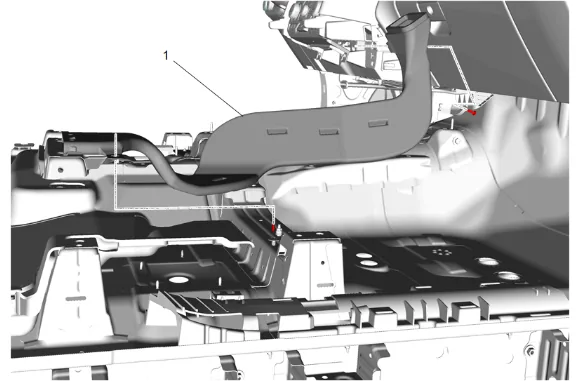

  1. Floor Rear Air Outlet Duct - Right Side (1) » Remove Installation Procedure

  2. Floor Rear Air Outlet Duct - Right Side (1) » Install

  3. Return the right side of the front floor panel mat (1) back to the carpet original position.

  1. Starting at the front of the right front side door sill garnish molding (1) engage the 2 retaining clips on the forward vertical wall.

  2. Work your way rearward engaging all the front side door sill garnish molding retaining clips.

  3. Front Side Door Sill Garnish Molding - Right Side (1) » Install

  4. { If equipped } Front Center Seat (3) » Install — Front Center Seat Removal and Installation

  5. Install the passenger seat. Front Seat Removal and Installation

  6. Floor Rear Air Outlet Duct Adapter - Right Side (1) » Install

  7. Enable the SIR System. SIR Disabling and Enabling
