Clutch Components

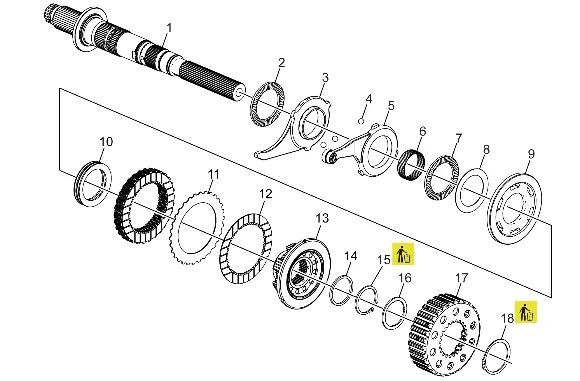

Clutch Components — figure 1

(1) Transfer Case Rear Output Shaft (2) Transfer Case Control Actuator Thrust Bearing (3) Transfer Case Scissor Mechanism Lever (4) Transfer Case Scissor Lever Ball[3x] (5) Transfer Case Scissor Mechanism Lever (6) Transfer Case Control Actuator Lever Bearing (7) Transfer Case Control Actuator Thrust Bearing (8) Transfer Case Control Actuator Lever Washer (9) Transfer Case Four Wheel Drive Clutch Pressure Plate– Apply Plate (10) Transfer Case Four Wheel Drive Clutch Pressure Plate Spring[4x] (11) Transfer Case Four Wheel Drive Clutch Pressure Plate– Steel Plate [7x] (12) Transfer Case Four Wheel Drive Clutch Pressure Plate—Friction[8x] (13) Transfer Case Four Wheel Drive Clutch Hub (14) Transfer Case Four Wheel Drive Clutch Shim (15) Transfer Case Two/Four Wheel Drive Clutch Retaining Ring (16) Transfer Case Front Output Shaft Driven Sprocket Spacer– Front (17) Transfer Case Four Wheel Drive Clutch Housing (18) Transfer Case Four Wheel Drive Clutch Housing Retaining Ring
