Sunroof Housing Replacement (Long Wheel Base)

Warning

Refer to Glass and Sheet Metal Handling Warning.

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. Removal Procedure

1. Disable the SIR system. SIR Disabling and Enabling
2. Open the sunroof sunshade.

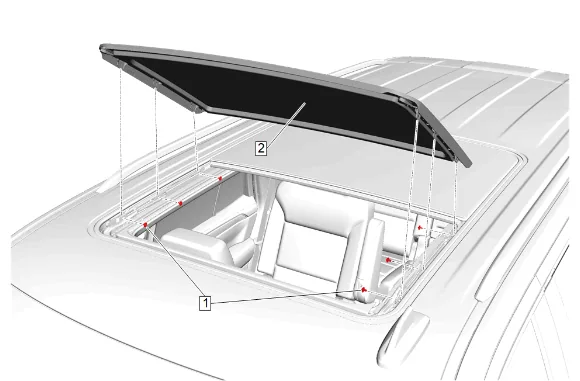

Sunroof Housing Replacement (Long Wheel Base) — figure 1

3. Reposition the sunroof opening trim finish lace to gain access to the bolts.
4. Sunroof Window Bolt (1) » Remove [6x]
5. Sunroof Window (2) » Remove

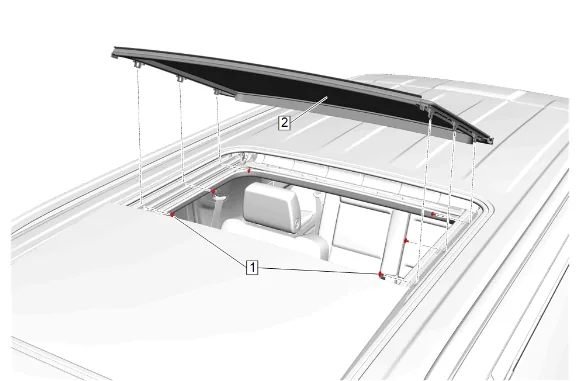

Sunroof Housing Replacement (Long Wheel Base) — figure 2

6. Reposition the sunroof opening trim finish lace to gain access to the bolts.
7. Sunroof Window Bolt (1) » Remove [6x]
8. Roof Stationary Window (2) @ Sunroof Window Seal » Disconnect
9. Roof Stationary Window (2) » Remove

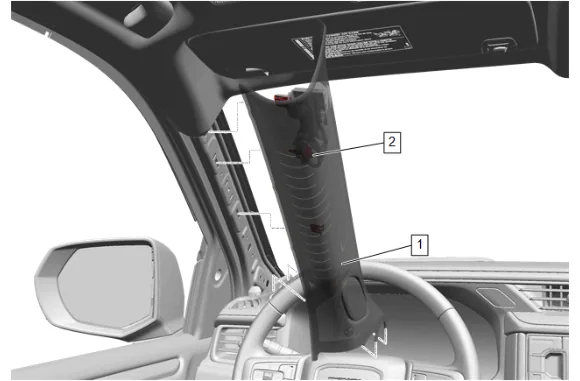

Sunroof Housing Replacement (Long Wheel Base) — figure 3

10. Reposition the weatherstrip as necessary.
11. Pull down the windshield garnish molding (1) rearwards to release the tether from the A pillar.
12. Access the windshield garnish bolt (2) on the backside of the windshield garnish molding (1).
13. Windshield Garnish Molding Bolt (2) » Remove
14. Windshield Garnish Molding - Left Side (1) » Remove

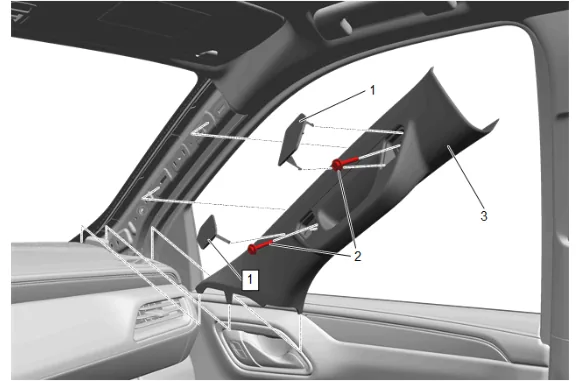

Sunroof Housing Replacement (Long Wheel Base) — figure 4

15. Reposition the weatherstrip as necessary.
16. Windshield Pillar Assist Handle Cover (1) » Remove [2x]
17. Windshield Pillar Assist Handle Bolt (2) » Remove [2x]
18. Windshield Garnish Molding - Right Side (3) » Remove

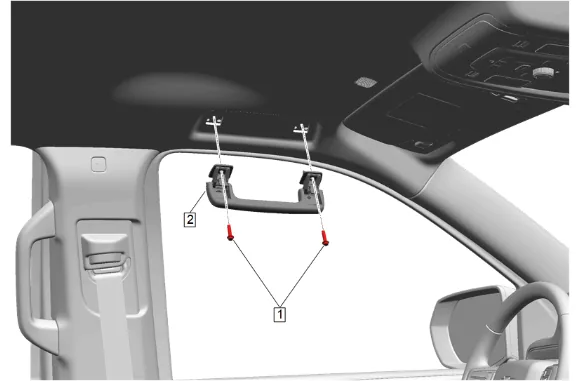

Sunroof Housing Replacement (Long Wheel Base) — figure 5

19. Fold the assist handle downward and hold. (2)
20. Use a small flat-bladed tool to open the assist handle covers to access the bolts.
21. Roof Rail Assist Handle Bolt (1) » Remove [4x]
22. Roof Rail Assist Handle (2) » Remove [2x]

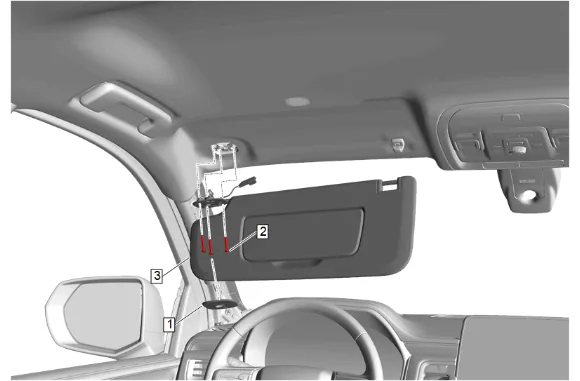

Sunroof Housing Replacement (Long Wheel Base) — figure 6

23. Sunshade Retainer Bolt Cover (1) » Remove
24. Sunshade Bolt (2) » Remove [3x]
25. Squeeze the tabs at the base of the sunshade (3) to detach it from the roof panel and allow the headliner with the sunshade attached to be lowered.

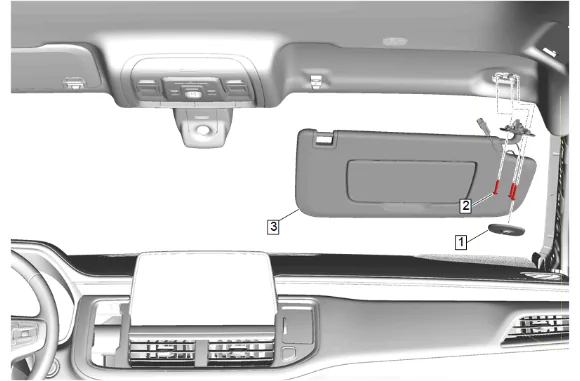

Sunroof Housing Replacement (Long Wheel Base) — figure 7

26. Sunshade Retainer Bolt Cover (1) » Remove
27. Sunshade Bolt (2) » Remove [3x]
28. Squeeze the tabs at the base of the sunshade (3) to detach it from the roof panel and allow the headliner with the sunshade attached to be lowered.

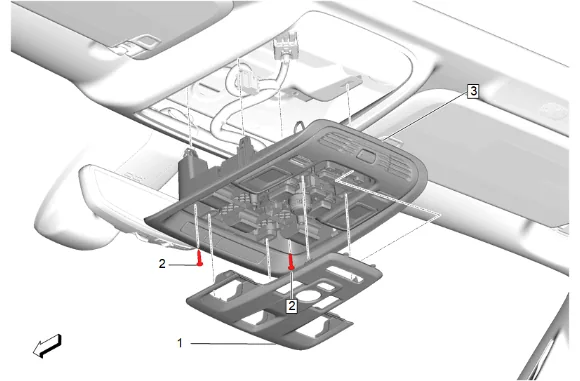

Sunroof Housing Replacement (Long Wheel Base) — figure 8

29. Using a flat-bladed plastic trim tool, release the retaining clips.
30. Roof Console Opening Trim Plate (1) » Remove
31. Roof Console Bolt (2) » Remove [2x]
32. Roof Console (3) » Remove
33. Disconnect the electrical connectors.

Sunroof Housing Replacement (Long Wheel Base) — figure 9

34. Open the sunshade support bolt access covers with an appropriate tool on both sides of vehicle.
35. Sunshade Support Bolt (1) » Remove [2x]

Sunroof Housing Replacement (Long Wheel Base) — figure 10

36. Insert a suitable flat-bladed plastic trim tool between the windshield multifunction sensor mount bracket cover insert (1) and windshield multifunction sensor mount bracket cover (2).
37. Separate the windshield multifunction sensor mount bracket cover insert (1) from the windshield multifunction sensor mount bracket cover (2).

Sunroof Housing Replacement (Long Wheel Base) — figure 11

38. Windshield Multifunction Sensor Mount Bracket Cover Insert (1) » Remove

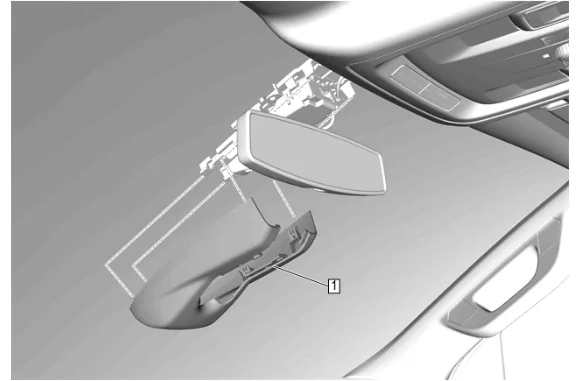

Sunroof Housing Replacement (Long Wheel Base) — figure 12

39. Using a suitable plastic trim tool, carefully pry downward on the windshield multifunction sensor mount bracket cover (1) to release it from the windshield.
40. Pull downward to remove the windshield multifunction sensor mount bracket cover (1) from the windshield.

Sunroof Housing Replacement (Long Wheel Base) — figure 13

41. Using a suitable plastic trim tool, release the retaining tabs on the rear seat position center reading and courtesy lamp (1).

Sunroof Housing Replacement (Long Wheel Base) — figure 14

42. Place the coat hook (2) in the open position.
43. Coat Hook Bolt (1) » Remove [2x]
44. Coat Hook (2) » Remove [2x]

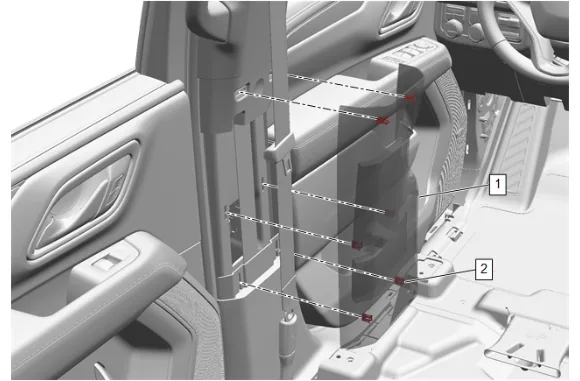

Sunroof Housing Replacement (Long Wheel Base) — figure 15

45. Move both front seats fully forward.
46. Use a flat bladed plastic tool between the center pillar center trim panel (1) and the center pillar upper trim panel to disengage the upper retaining clips (2) on both sides of the vehicle.
47. Pull from both sides of the center pillar center trim panel (1) to release the middle and lower retaining clips (2) on both sides of the vehicle.
48. Center Pillar Center Trim Panel (1) » Remove [2x]

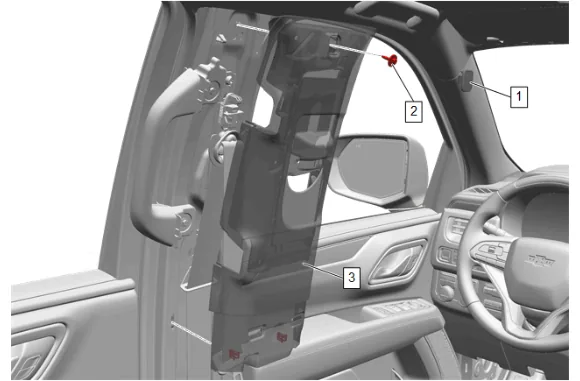

Sunroof Housing Replacement (Long Wheel Base) — figure 16

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

49. Center Pillar Upper Trim Panel Bolt Cap (1) » Remove [2x]
50. Center Pillar Upper Garnish Molding Bolt (2)» Remove [2x]
51. Pull the center pillar upper trim panel (3) toward the inside of the vehicle to disengage the retaining clips on both sides of the vehicle.

Note

The Center Pillar Upper Trim Panel does not need to be fully removed from the vehicle.

52. Center Pillar Upper Trim Panel (3) » Reposition [2x]

Sunroof Housing Replacement (Long Wheel Base) — figure 17

53. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
54. Quarter Window Trim Finish Panel Bolt (2) » Remove

Sunroof Housing Replacement (Long Wheel Base) — figure 18

55. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

The Body Lock Pillar Upper Trim Panel does not need to be fully removed from the vehicle.

56. Body Lock Pillar Upper Trim Panel (1) » Reposition

Sunroof Housing Replacement (Long Wheel Base) — figure 19

57. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
58. Quarter Window Trim Finish Panel Bolt (2) » Remove

Sunroof Housing Replacement (Long Wheel Base) — figure 20

59. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

The Body Lock Pillar Upper Trim Panel does not need to be fully removed from the vehicle.

60. Body Lock Pillar Upper Trim Panel (1) » Reposition

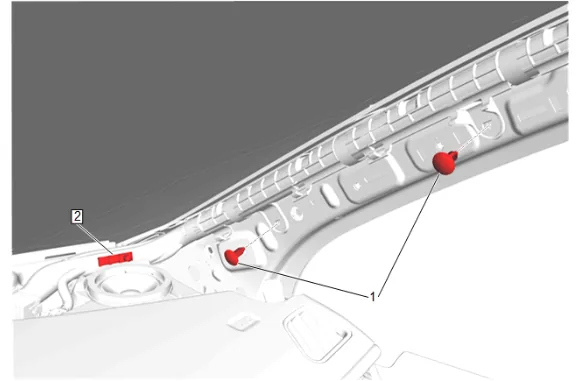

Sunroof Housing Replacement (Long Wheel Base) — figure 21

61. Reposition the sunroof housing front drain hose.
62. Retaining Clip (1) » Remove [2x]
63. Place all the rear seats in the fully stowed position.
64. Place the front seats in the fully reclined position.
65. Disconnect the electrical connectors at the windshield module.
66. Lower the headlining trim panel.

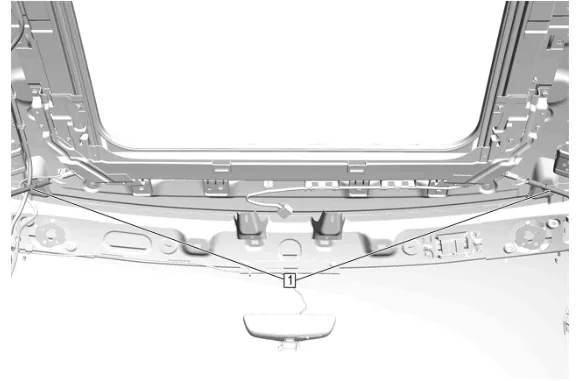

Sunroof Housing Replacement (Long Wheel Base) — figure 22

67. Disconnect the sunroof housing front drain hoses (1) from the front sunroof housing drain gutters.

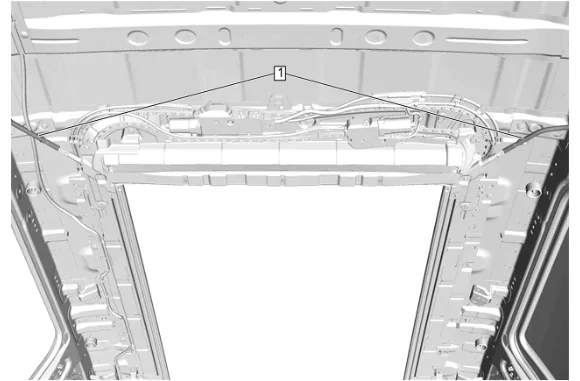

Sunroof Housing Replacement (Long Wheel Base) — figure 23

68. Disconnect the sunroof housing rear drain hoses (1) from the rear sunroof housing drain gutters.

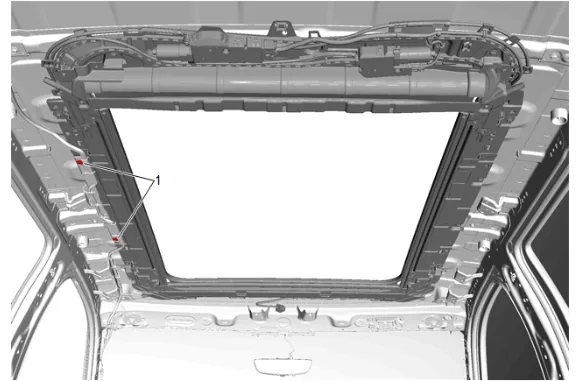

Sunroof Housing Replacement (Long Wheel Base) — figure 24

69. Remove the 2 sunroof housing wiring harness retaining tabs (1).
70. Disconnect the electrical connectors.

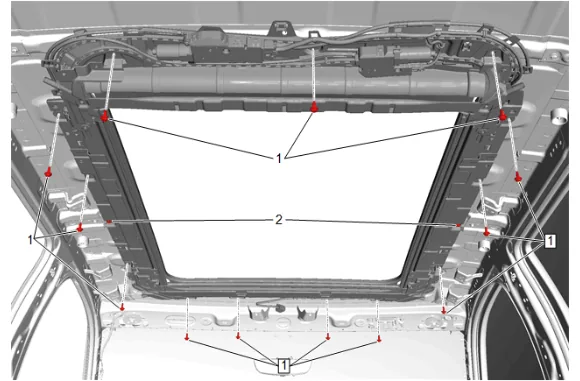

Sunroof Housing Replacement (Long Wheel Base) — figure 25

71. Remove the 13 sunroof module bolts (1), leaving the side 2 centermost sunroof module bolts  (2) installed.

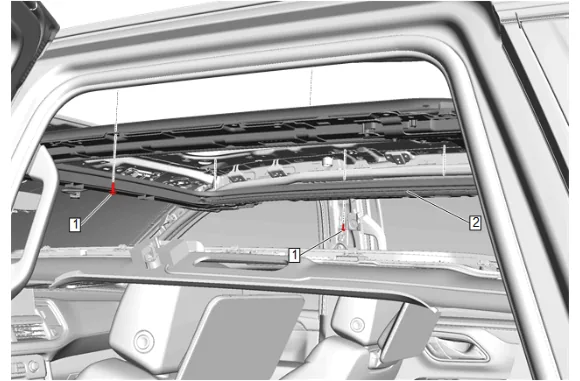

Sunroof Housing Replacement (Long Wheel Base) — figure 26

72. With the aid of an assistant, remove the 2 remaining sunroof module bolts (1) and gently lower the sunroof housing (2).
73. With the aid of an assistant, carefully remove the sunroof housing (2) and place on a clean prepared surface.

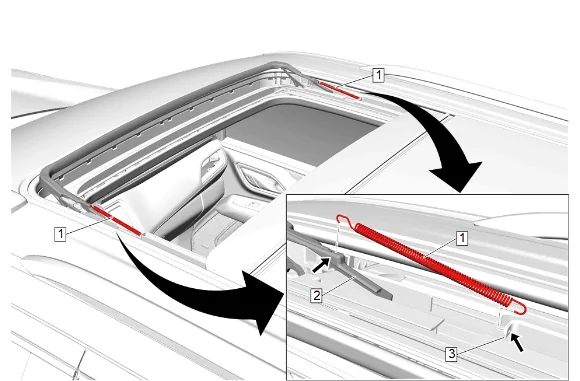

Sunroof Housing Replacement (Long Wheel Base) — figure 27

74. Using a suitable tool, remove the sunroof air deflector springs (1) from the sunroof air deflector (2) and the sunroof channel side guides (3).

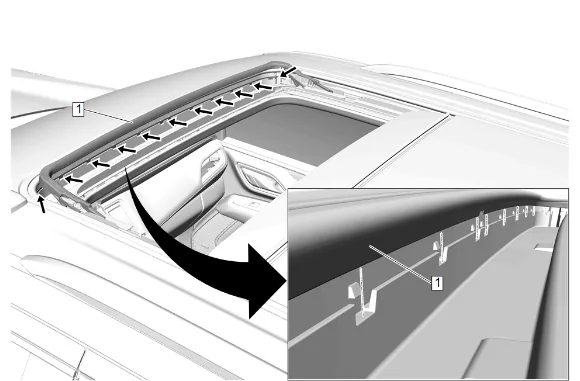

Sunroof Housing Replacement (Long Wheel Base) — figure 28

Note

Observe the seat of the sunroof air deflector fabric stiffener in the locking guide.

75. Release the retainers at the sunroof air deflector (1).

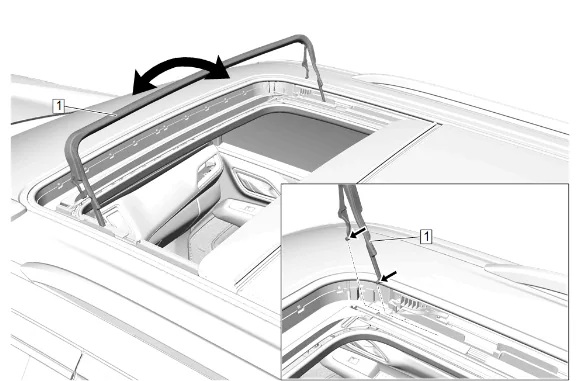

Sunroof Housing Replacement (Long Wheel Base) — figure 29

76. Pivot the sunroof air deflector (1) toward the rear end of the vehicle.

Note

Observe the mounting and location of the sunroof air deflector in the sunroof channel side guides.

77. Sunroof Air Deflector (1) » Remove

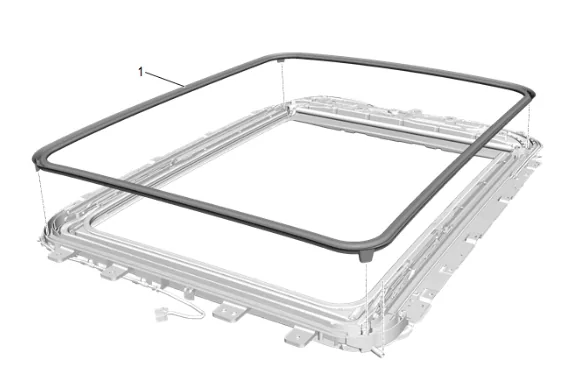

Sunroof Housing Replacement (Long Wheel Base) — figure 30

Note

Observe the mounting and location of the sunroof window seal to ensure proper reinstallation.

78. Starting at one end of the sunroof window seal (1), pull up and away from the frame.
79. Sunroof Window Seal (1) » Remove
80. Clean the mounting area using a lint-free cloth dampened with a 50/50 mixture of isopropyl alcohol and water.

Note

Observe the mounting and location of the sunroof wiring harness to ensure proper reinstallation.

81. Sunroof Wiring Harness (3) » Remove

Sunroof Housing Replacement (Long Wheel Base) — figure 31

Note

Observe the mounting and location of sunroof sunshade stiffener to sunroof sunshade side guides to ensure proper reinstallation.

82. Pull rearward to unlock the sunroof sunshade stiffener (1) from the sunroof sunshade side guides (2) at both side of the sunroof sunshade.
83. Using a rolling motion, remove the sunroof sunshade stiffener (1) from the sunroof sunshade side guides (2) at both side of the sunroof sunshade.

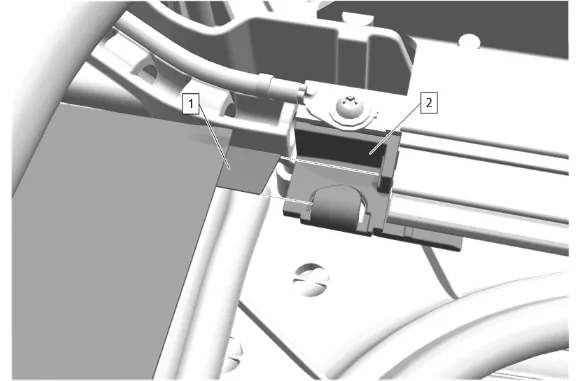

Sunroof Housing Replacement (Long Wheel Base) — figure 32

84. Feed the sunshade fabric (1)  rearward from the fabric guide (2).

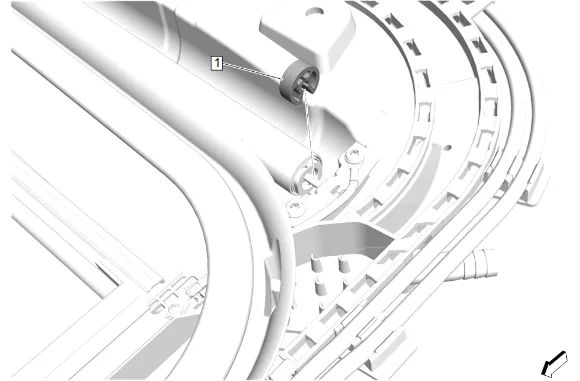

Sunroof Housing Replacement (Long Wheel Base) — figure 33

85. Using a suitable plastic trim tool, remove the sunshade spacer (1).

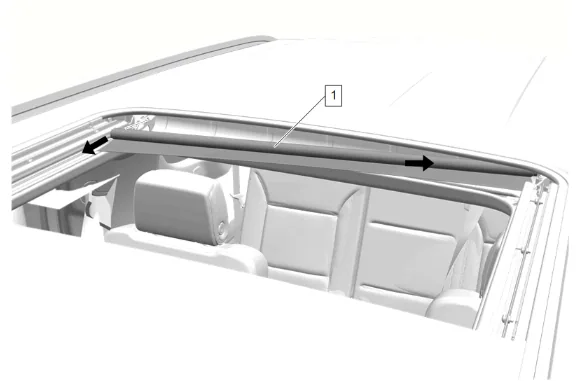

Sunroof Housing Replacement (Long Wheel Base) — figure 34

Note

Observe the mounting and location of sunroof sunshade to sunroof housing to ensure proper reinstallation. Observe the mounting and location of sunroof sunshade to sunroof housing to ensure proper reinstallation. Ensure sunroof sunshade is in a locked position while removing.

86. Push the sunroof sunshade (1)  toward the drivers side of the vehicle pull the passenger end of the sunroof sunshade forward to release and remove.
87. Insert a locking pin to hold the spring tension of the sunroof sunshade (1).

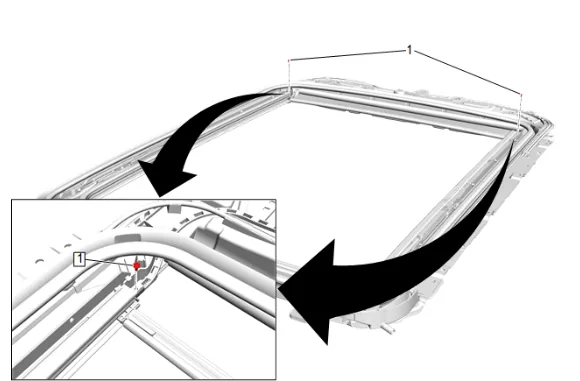

Sunroof Housing Replacement (Long Wheel Base) — figure 35

88. Sunshade Bolt (1) » Remove [2x]

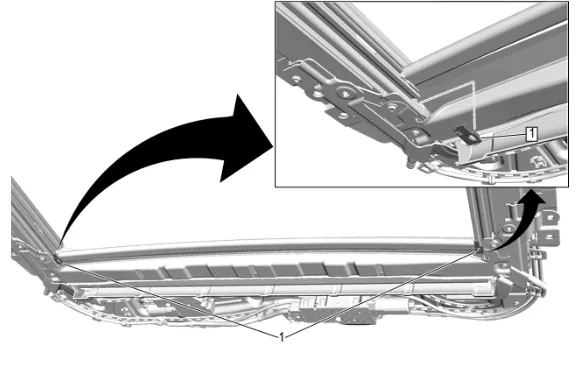

Sunroof Housing Replacement (Long Wheel Base) — figure 36

Note

Use extra care when removing the fabric guides.

89. Sunroof Sunshade Fabric Guide (1) » Remove [2x]

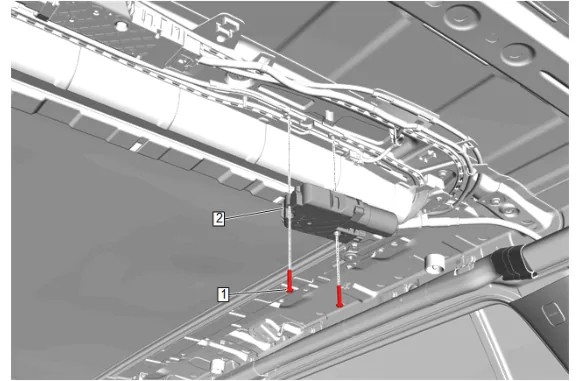

Sunroof Housing Replacement (Long Wheel Base) — figure 37

90. Sunroof Actuator Motor Bolt (1) » Remove [2x]
91. Sunroof Sunshade Motor (2) » Remove

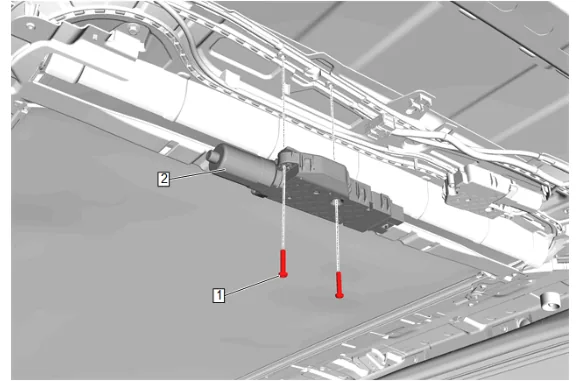

Sunroof Housing Replacement (Long Wheel Base) — figure 38

92. Sunroof Actuator Motor Bolt (1) » Remove [2x]
93. Sunroof Control Module (2) » Remove

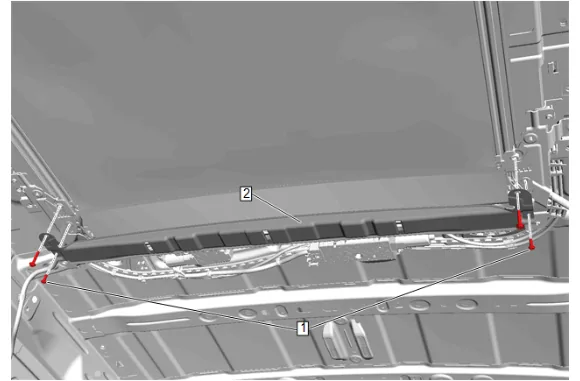

Sunroof Housing Replacement (Long Wheel Base) — figure 39

94. Sunshade Support Bolt (1) » Remove [4x]

95. Sunroof Housing Bracket (2) » Remove Installation Procedure

96. Sunroof Housing Bracket (2) » Install

Caution

Refer to Fastener Caution.

2. Sunshade Support Bolt (1) » Install and tighten [4x] — Fastener Specifications

3. Sunroof Control Module (2) » Install

4. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 4.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 4.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 4.3. Remove loose debris from internal and external threads using compressed air. 4.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

5. Sunroof Actuator Motor Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Sunroof Sunshade Motor (2) » Install

7. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 7.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 7.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 7.3. Remove loose debris from internal and external threads using compressed air. 7.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

8. Sunroof Actuator Motor Bolt (1) » Install and tighten [2x] — Fastener Specifications

Note

Use extra care when installing the fabric guides.

9. Sunroof Sunshade Fabric Guide (1) » Install [2x]

10. Sunshade Bolt (1) » Install and tighten [2x] — Fastener Specifications

Sunroof Housing Replacement (Long Wheel Base) — figure 40

Note

A new sunroof sunshade comes with a pre-loaded locking pin to hold the sunshade fabric steady. If the sunroof sunshade becomes unwound a new sunshade is required. DO NOT attempt to rewind sunshade. Ensure sunroof sunshade fabric is properly rolled before installing.

11. Remove the locking pin from the sunroof sunshade.

12. Align the driver side end of the sunroof sunshade (1) with the slot on the sunroof frame and insert the end of the shaft into the slot.

13. Push the sunroof sunshade (1) toward the driver side of the vehicle, maintain pressure while swinging the sunroof sunshade into position aligning the pin with the pivot hole and install the sunroof sunshade.

14. Install the sunshade spacer (1).

Note

If the sunroof sunshade fabric is not fed correctly into the sunshade fabric guide the fabric will droop and not be firm.

15. Feed the sunshade fabric (1)  forward into the fabric guide (2).

Sunroof Housing Replacement (Long Wheel Base) — figure 41

16. Using a rolling motion, install the sunroof sunshade stiffener (1) from the sunroof sunshade side guides (2) at both side of the sunroof sunshade.
17. Push forward to lock the sunroof sunshade stiffener (1) into the sunroof sunshade side guides  (2) at both side of the sunroof sunshade.

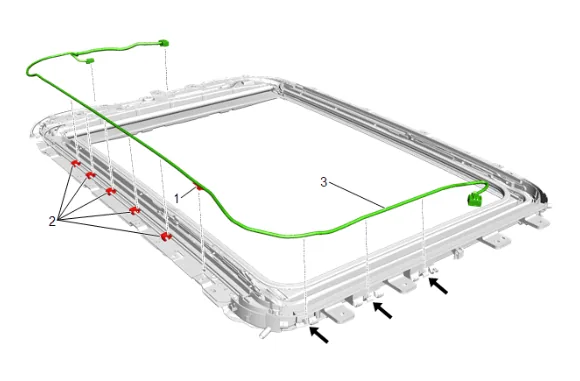

Sunroof Housing Replacement (Long Wheel Base) — figure 42

18. Sunroof Wiring Harness (3) » Install

19. Secure the 5 sunroof wiring harness retaining clips (2).

20. Secure the sunroof wiring harness retaining tab (1).

21. Connect the electrical connectors.

22. Sunroof Window Seal (1) » Install

23. Starting at one end of the sunroof window seal (1), seat the sunroof window seal at all contact points around the frame.

24. Sunroof Air Deflector (1) » Install

25. Pivot the sunroof air deflector (1) toward the front end of the vehicle and hold in place.

26. Secure the retainers at the sunroof air deflector (1).

Note

It will be necessary to hold the sunroof air deflector in place due to spring tension.

27. Install the sunroof air deflector springs (1) to the sunroof channel side guides (3) and the sunroof air deflector (2).

28. With the aid of an assistant, carefully install the sunroof housing (2).

29. With the aid of an assistant, install and hand tighten the side 2 centermost sunroof module bolts (1).

30. Sunroof Module Bolt (1) » Install and tighten [13x] — Fastener Specifications

31. Sunroof Module Bolt (2) » Tighten [2x] — Fastener Specifications

32. Connect the electrical connectors.

33. Install the 2 sunroof housing wiring harness retaining tabs (1).

34. Connect the sunroof housing rear drain hoses (1) to the rear sunroof housing drain gutters.

35. Connect the sunroof housing front drain hoses (1) to the front sunroof housing drain gutters.

36. Headlining Trim Panel » Install

37. Connect the electrical connectors at the windshield module.

38. Place the front seats in the fully upright position.

39. Place all the rear seats in the fully upright and locked position.

40. Retaining Clip (1) » Install [2x]

41. Reposition the sunroof housing front drain hose.

42. Body Lock Pillar Upper Trim Panel (1) » Reposition

43. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

44. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

45. Body Lock Pillar Upper Trim Panel (1) » Reposition

46. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

47. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

48. Center Pillar Upper Trim Panel (3) » Install [2x]

49. Center Pillar Upper Garnish Molding Bolt (2)» Install and tighten [2x] — Fastener Specifications

50. Center Pillar Upper Trim Panel Bolt Cap (1) » Install [2x]

51. Align the retaining clips (2) with the upper and lower trim panels on both sides of the vehicle.

52. Center Pillar Center Trim Panel (1) » Install [2x]

53. Coat Hook (2) » Install [2x]

54. Coat Hook Bolt (1) » Install and tighten [2x] — Fastener Specifications

55. Apply pressure upward on the rear seat position center reading and courtesy lamp (1) to engage the retaining tabs.

56. Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.

57. Windshield Multifunction Sensor Mount Bracket Cover Insert (1) » Install

58. Apply pressure upward on the windshield multifunction sensor mount bracket cover insert (1)  to engage the retaining tabs.

59. Sunshade Support Bolt (1) » Install and tighten [2x] — Fastener Specifications

60. Close the sunshade support bolt access covers.

61. Connect the electrical connectors.

62. Roof Console (3) » Install

63. Roof Console Bolt (2) » Install and tighten [2x] — Fastener Specifications

64. Roof Console Opening Trim Plate (1) » Install

65. Sunshade Bolt (2) » Install and tighten [3x] — Fastener Specifications

66. Sunshade Retainer Bolt Cover (1) » Install

67. Sunshade Bolt (2) » Install and tighten [3x] — Fastener Specifications

68. Sunshade Retainer Bolt Cover (1) » Install

69. Roof Rail Assist Handle (2) » Install [2x]

70. Roof Rail Assist Handle Bolt (1) » Install and tighten [4x] — Fastener Specifications

71. Windshield Garnish Molding - Right Side (3) » Install

72. Windshield Pillar Assist Handle Bolt (2) » Install and tighten [2x] — Fastener Specifications

73. Windshield Pillar Assist Handle Cover (1) » Install [2x]

74. Reposition the weatherstrip as necessary.

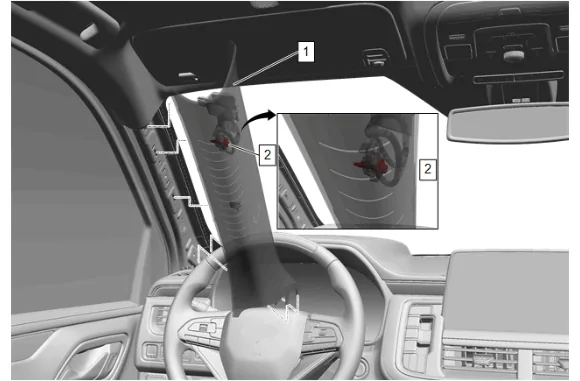

Sunroof Housing Replacement (Long Wheel Base) — figure 43

75. Windshield Garnish Molding Bolt (2) » Install and tighten — Fastener Specifications

76. Align the retainer clips with the slots in the A pillar and press the windshield garnish molding  (1) into place.

77. Windshield Garnish Molding - Left Side (1) » Install

78. Reposition the weatherstrip as necessary.

79. Roof Stationary Window (2) » Install

80. Roof Stationary Window (2) @ Sunroof Window Seal » Connect

81. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 81.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 81.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 81.3. Remove loose debris from internal and external threads using compressed air. 81.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

82. Sunroof Window Bolt (1) » Install and hand tighten [6x]

83. Sunroof Window (2) » Install

84. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 84.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 84.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 84.3. Remove loose debris from internal and external threads using compressed air. 84.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

85. Sunroof Window Bolt (1) » Install and hand tighten [6x]

86. Ensure the proper sunroof window and roof stationary window height and opening fit. Sunroof Window Height and Opening Fit Adjustment

87. Perform the necessary initialization procedure. Sunroof/Sunshade Motor Initialization

88. Enable the SIR System. SIR Disabling and Enabling
