Rear Seat Belt Buckle Replacement (Bucket without UH5)

Removal Procedure

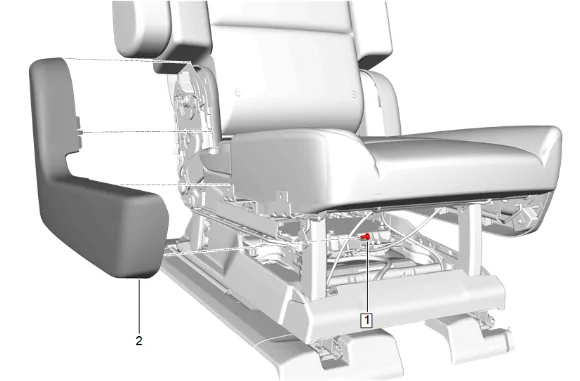

Rear Seat Belt Buckle Replacement (Bucket without UH5) — figure 1

1. Front Seat Bolt (1) » Remove
2. Using a suitable plastic trim tool, release the retaining tabs.
3. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Remove

Rear Seat Belt Buckle Replacement (Bucket without UH5) — figure 2

4. Rear Seat Belt Buckle Bolt (1) » Remove

5. Rear Seat Belt Buckle (2) » Remove Installation Procedure

6. Rear Seat Belt Buckle (2) » Install

Caution

Refer to Fastener Caution.

2. Rear Seat Belt Buckle Bolt (1) » Install and tighten — Fastener Specifications

3. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Install

4. Front Seat Bolt (1) » Install and tighten — Fastener Specifications
