Front Seat Center Belt Retractor Replacement

Removal Procedure

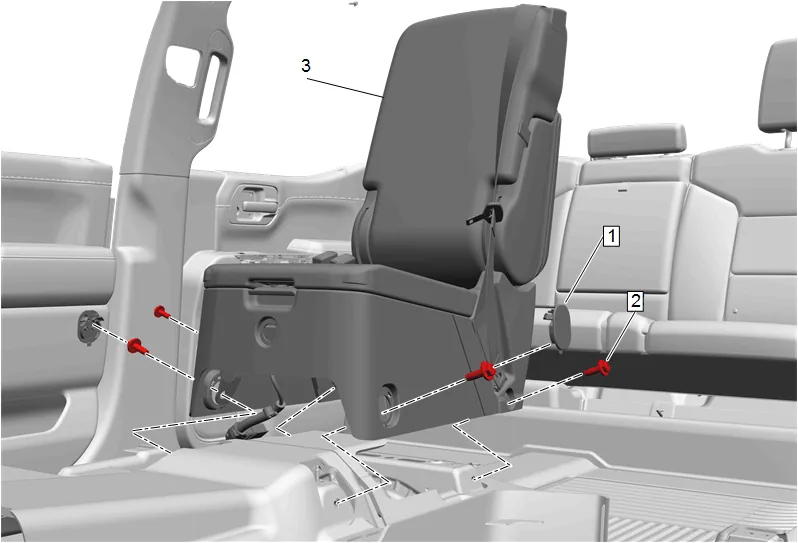

Front Center Seat (3) » Remove — Front Center Seat Removal and Installation

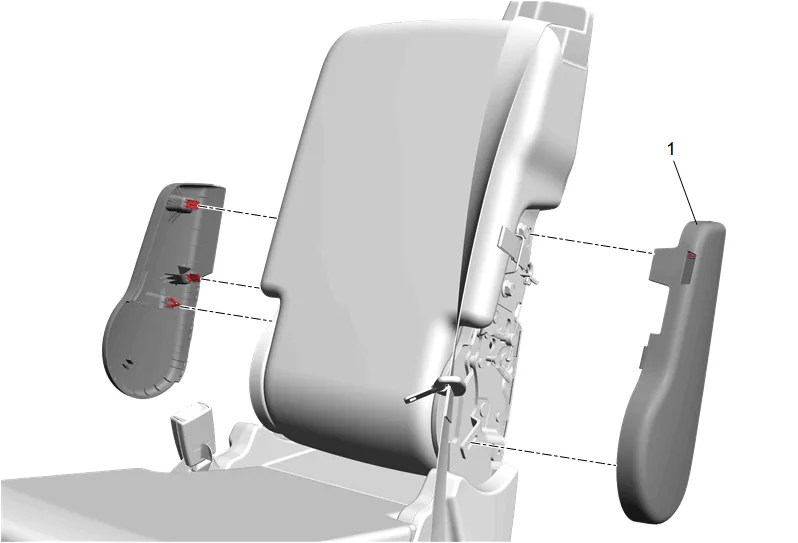

Front Seat Center Belt Retractor Replacement — figure 2

Using a suitable trim tool, release the retaining clips.
Front Seat Center Armrest Hinge Finish Cover - Upper (1) » Remove [2x]

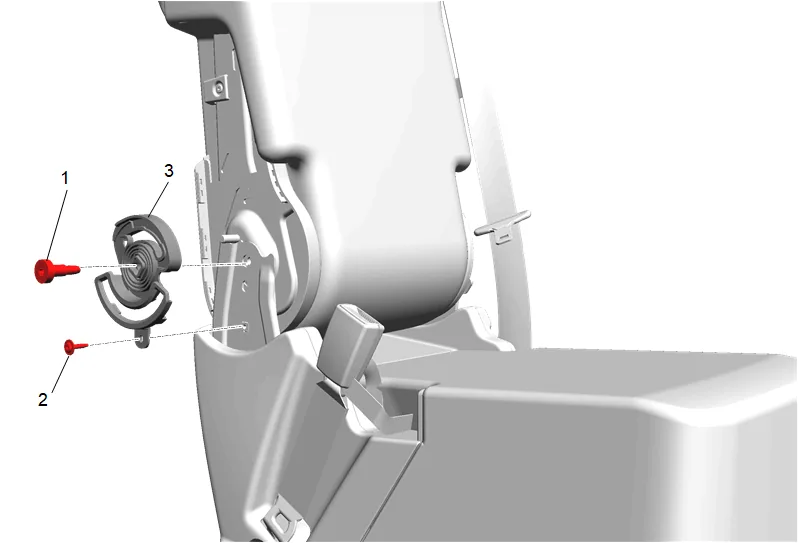

Front Seat Center Belt Retractor Replacement — figure 3

Front Seat Center Armrest Pivot Bolt (1) » Remove
Front Seat Armrest Adjust Retainer Bolt (2) » Remove
Front Seat Armrest Adjust Retainer (3) » Remove

Front Seat Center Belt Retractor Replacement — figure 4

Using a suitable plastic trim tool, release the front seat center armrest hinge finish cover - lower retaining clips.

Remove and DISCARD seat belt retaining bushings.
Front Seat Center Belt Anchor Plate » Remove
Front Seat Center Armrest Hinge Finish Cover - Lower (1) » Remove

Front Seat Center Belt Retractor Replacement — figure 5

Disconnect the latch release cable.
Front Seat Center Armrest Bolt (1) » Remove [2x]
Front Center Seat Armrest (2) » Remove

Front Seat Center Belt Retractor Replacement — figure 6

Using a suitable trim tool, release the retaining clip.
Front Seat Center Armrest Hinge Finish Inner Cover (1) » Remove [2x]

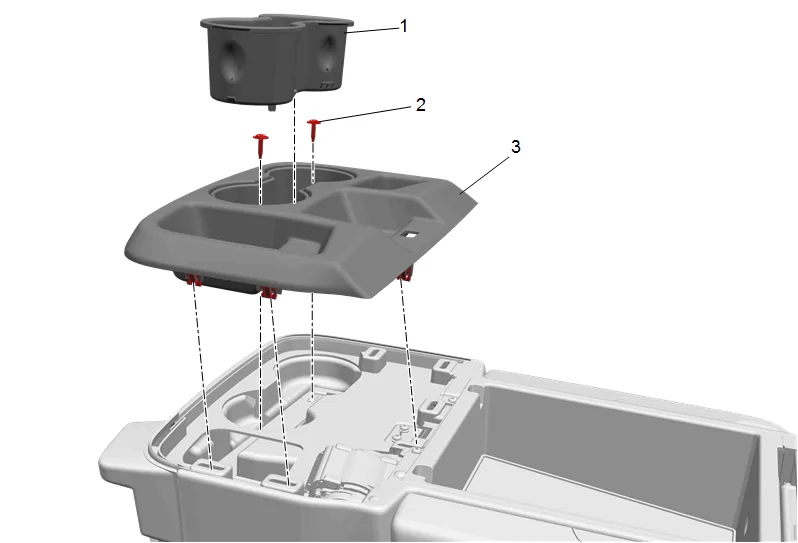

Front Seat Center Belt Retractor Replacement — figure 7

Front Center Seat Cup Holder (1) » Remove
Front Seat Armrest Cup Holder Bolt (2) » Remove [2x]
Using a suitable trim tool, release the front seat armrest cup holder retainers.
Front Seat Armrest Cup Holder (3) » Remove

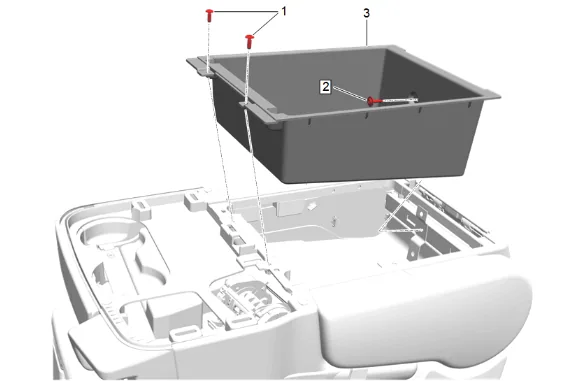

Front Seat Center Belt Retractor Replacement — figure 8

Front Seat Stowage Compartment Bolt - Front (1) » Remove [2x]
Front Seat Stowage Compartment Bolt - Rear (2) » Remove
Front Seat Stowage Compartment (3) » Remove

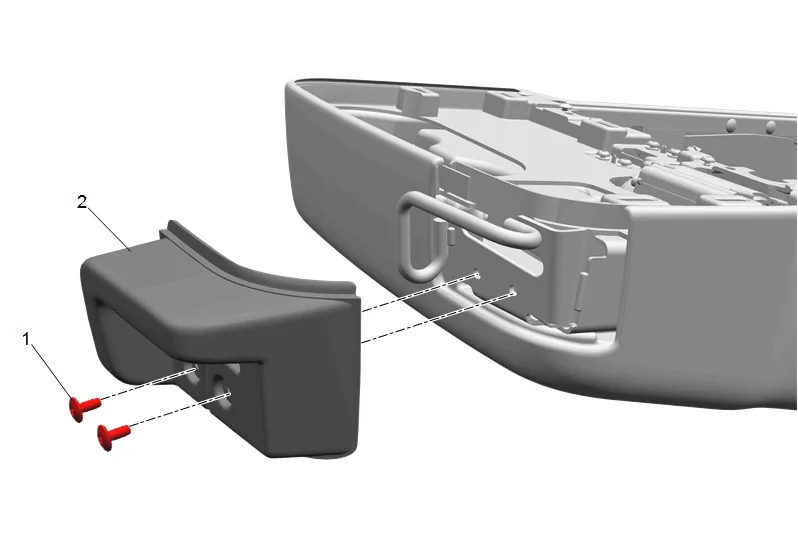

Front Seat Center Belt Retractor Replacement — figure 9

Front Seat Belt Opening Bezel Bolt (1) » Remove [2x]
Front Seat Belt Opening Bezel (2) » Remove

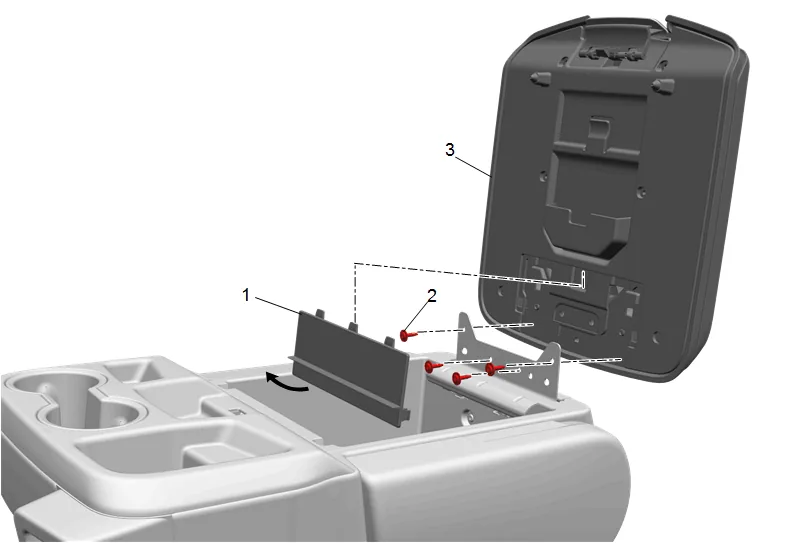

Front Seat Center Belt Retractor Replacement — figure 10

Pull outward and down on the bottom of the front seat armrest hinge finish cover to release the retaining tabs.
Front Seat Armrest Hinge Finish Cover (1) » Remove
Front Seat Armrest Lid Bolt (2) » Remove [4x]
Front Seat Armrest Lid (3) » Remove

Front Seat Center Belt Retractor Replacement — figure 11

Disengage the J-channel retainers from the seat back cushion frame.
Disconnect the retainers from the seat back cushion frame.
Front Seat Back Cover (1) » Remove
Front Seat Back Pad (2) » Remove
Front Seat Back Pad - Upper (3) » Remove

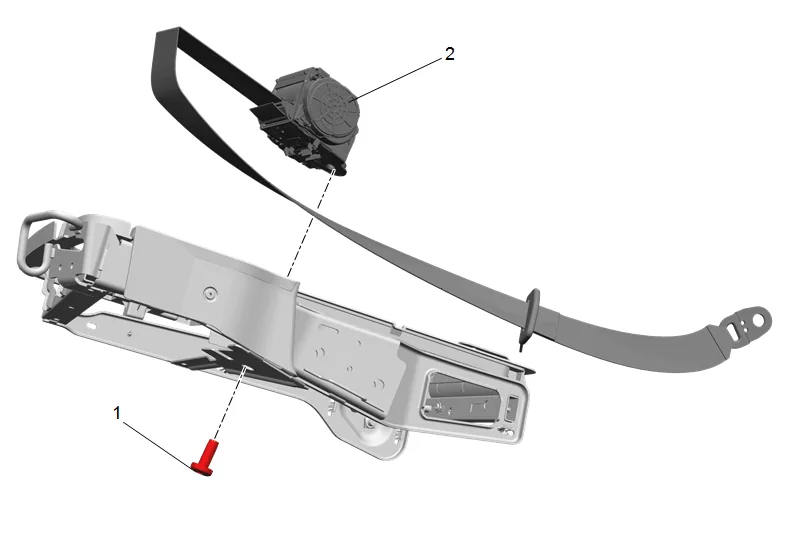

Front Seat Center Belt Retractor Replacement — figure 12

Front Seat Belt Retractor Bolt (1) » Remove
Front Seat Center Belt Retractor (2) » Remove Installation Procedure
Front Seat Center Belt Retractor (2) » Install

Front Seat Belt Retractor Bolt (1) » Install and tighten — Fastener Specifications
Front Seat Back Pad - Upper (3) » Install
Front Seat Back Pad (2) » Install
Front Seat Back Cover (1) » Install
Connect retainers to the seat back cushion frame.
Connect the J-channel retainers.
Front Seat Armrest Lid (3) » Install
Front Seat Armrest Lid Bolt (2) » Install and tighten [4x] — Fastener Specifications
Front Seat Armrest Hinge Finish Cover (1) » Install
Front Seat Belt Opening Bezel (2) » Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 12.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 12.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 12.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 12.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Front Seat Belt Opening Bezel Bolt (1) » Install and tighten [2x] — Fastener Specifications
Front Seat Stowage Compartment (3) » Install
Front Seat Stowage Compartment Bolt - Rear (2) » Install and tighten — Fastener Specifications
Front Seat Stowage Compartment Bolt - Front (1) » Install and tighten [2x] — Fastener Specifications
Front Seat Armrest Cup Holder (3) » Install
Front Seat Armrest Cup Holder Bolt (2) » Install and tighten [2x] — Fastener Specifications
Front Center Seat Cup Holder (1) » Install
Front Seat Center Armrest Hinge Finish Inner Cover (1) » Install [2x]
Front Center Seat Armrest (2) » Install
Front Seat Center Armrest Bolt (1) » Install and tighten [2x] — Fastener Specifications
Connect the latch release cable.
Front Seat Center Armrest Hinge Finish Cover - Lower (1) » Install
Front Seat Center Belt Anchor Plate » Install
Front Seat Armrest Adjust Retainer (3) » Install
Front Seat Armrest Adjust Retainer Bolt (2) » Install and tighten — Fastener Specifications
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 28.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 28.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 28.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 28.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Front Seat Center Armrest Pivot Bolt (1) » Install and tighten — Fastener Specifications
Front Seat Center Armrest Hinge Finish Cover - Upper (1) » Install [2x]
Front Center Seat (3) » Install — Front Center Seat Removal and Installation
