Rear Seat Armrest Replacement (60 Percent)

Removal Procedure

Rear Seat Armrest Replacement (60 Percent) — figure 1

1. Place the rear seat armrest in the full down position.
2. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [2x]
3. Push down on the rear seat armrest mount panel (2) then pull outward and upward to release the retaining tabs.
4. Rear Seat Armrest Mount Panel (2) » Remove

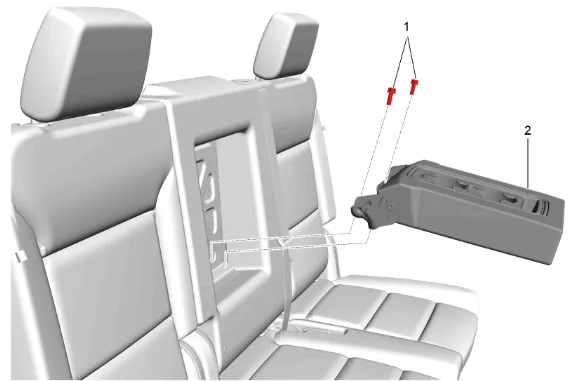

Rear Seat Armrest Replacement (60 Percent) — figure 2

5. Rear Seat Riser Bolt (1) » Remove [2x]

6. Rear Seat Armrest (2) » Remove Installation Procedure

7. Rear Seat Armrest (2) » Install

Caution

Refer to Fastener Caution.

2. Rear Seat Riser Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Rear Seat Armrest Mount Panel (2) » Install

4. Rear Seat Back Opening Finish Cover Retainer (1) » Install

5. Return the rear seat armrest to the original position.
