Engine Cooling Fan Motor Replacement (L84, L87)

Single Use Fasteners and Components Engine Oil Cooler Retainer [2x] Removal Procedure

1. Drain the cooling system. Cooling System Draining and Filling
2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

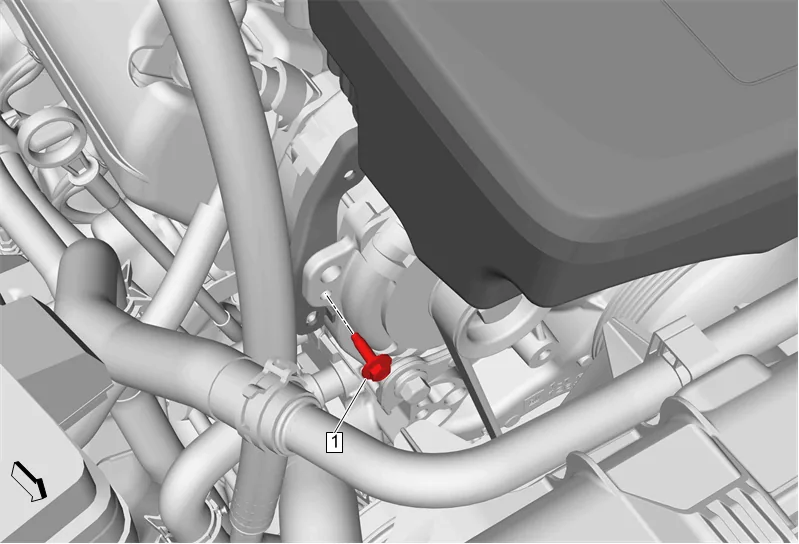

Engine Cooling Fan Motor Replacement (L84, L87) — figure 1

3. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
4. Remove the engine wiring harness from the air cleaner outlet duct bracket.

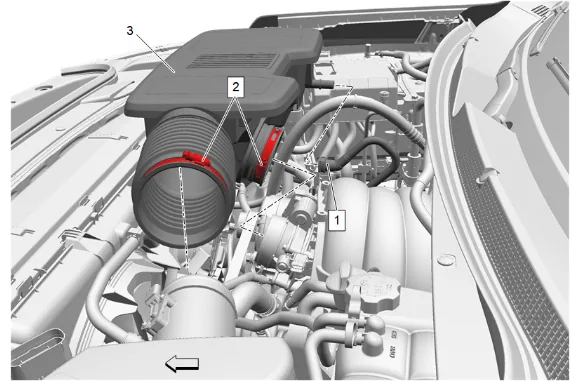

Engine Cooling Fan Motor Replacement (L84, L87) — figure 2

5. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
6. Air Cleaner Outlet Duct Clamp (2) » Loosen [2x]
7. Air Cleaner Outlet Duct (3) » Remove

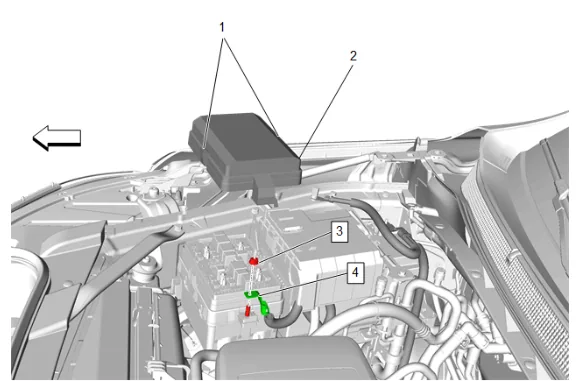

Engine Cooling Fan Motor Replacement (L84, L87) — figure 3

8. Retaining Tab (1) » Disengage [2x]
9. Engine Wiring Harness Junction Block Cover (2) » Remove
10. Battery Positive Cable Nut (3) » Remove
11. Starter Solenoid Cable (4) » Remove

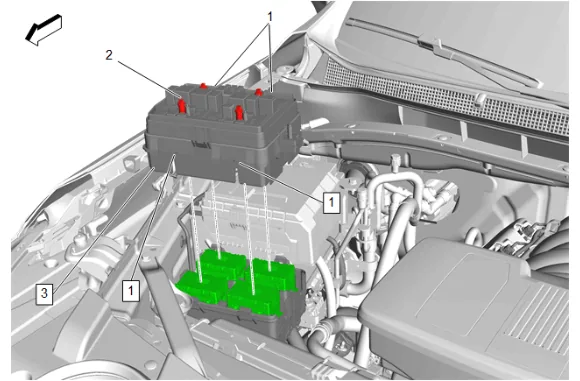

Engine Cooling Fan Motor Replacement (L84, L87) — figure 4

12. Engine Wiring Harness Junction Block Bolt (2) » Loosen [4x]
13. Retaining Tab (1) » Disengage [4x]
14. Engine Wiring Harness Junction Block (3) » Remove

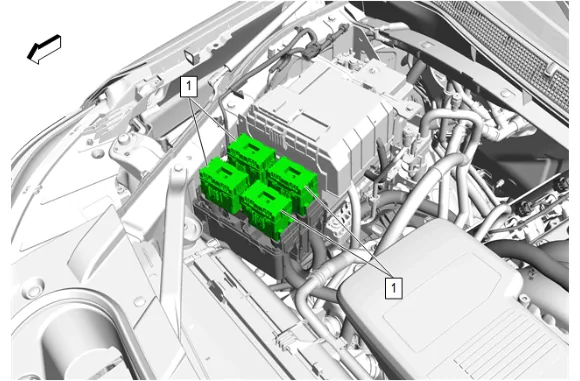

Engine Cooling Fan Motor Replacement (L84, L87) — figure 5

15. Electrical Connector (1) » Remove [4x]

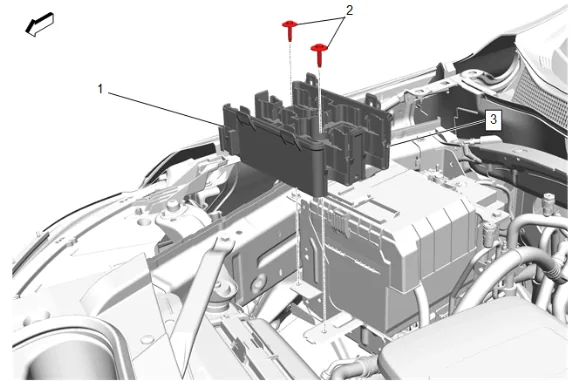

Engine Cooling Fan Motor Replacement (L84, L87) — figure 6

16. Engine Wiring Harness Fuse Block Bracket Bolt (2) » Remove [2x]
17. Retaining Tab (1) » Disengage
18. Engine Wiring Harness Fuse Block Bracket (3) » Remove

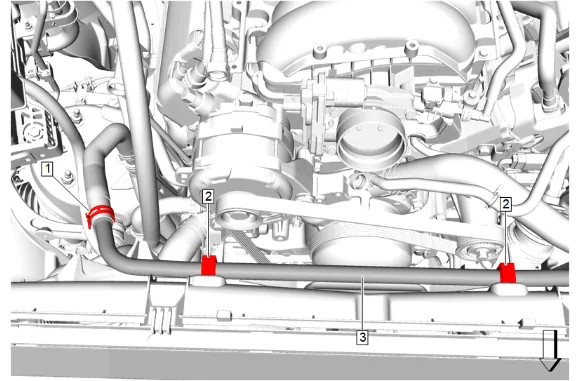

Engine Cooling Fan Motor Replacement (L84, L87) — figure 7

19. Radiator Surge Tank Outlet Hose Clip (2) » Remove [2x]
20. Radiator Surge Tank Outlet Hose (3) » Position aside

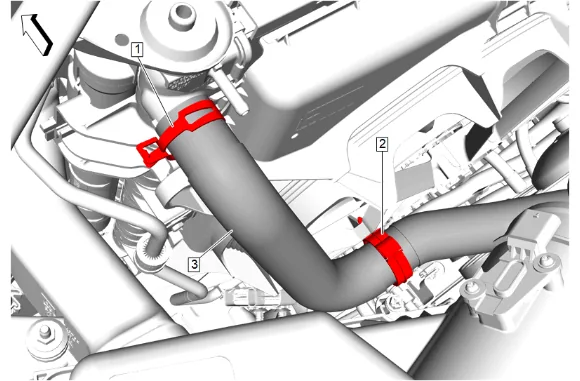

Engine Cooling Fan Motor Replacement (L84, L87) — figure 8

Note

Some components not shown for graphic clarity.

21. Radiator Inlet Hose Clip (2) » Remove
22. Radiator Inlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
23. Radiator Inlet Hose (3) @ Engine Radiator » Remove and position aside

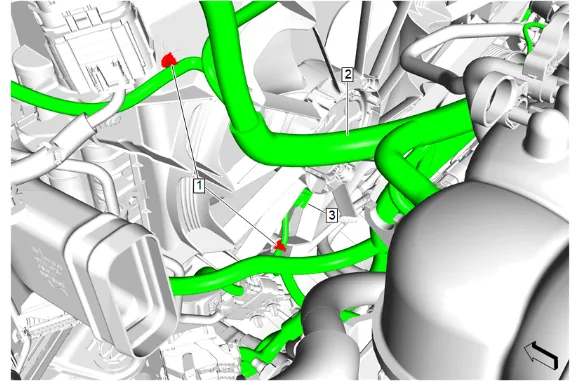

Engine Cooling Fan Motor Replacement (L84, L87) — figure 9

Note

Some components not shown for graphic clarity.

24. Wiring Harness Retainer (1) » Remove [2x]
25. Electrical Connector (3) » Disconnect
26. Wiring Harness (2) » Position aside

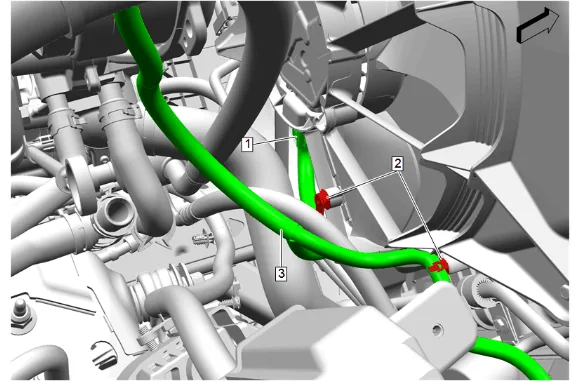

Engine Cooling Fan Motor Replacement (L84, L87) — figure 10

Note

Some components not shown for graphic clarity.

27. Wiring Harness Retainer (2) » Remove [2x]
28. Electrical Connector (1) » Disconnect
29. Wiring Harness (3) » Position aside

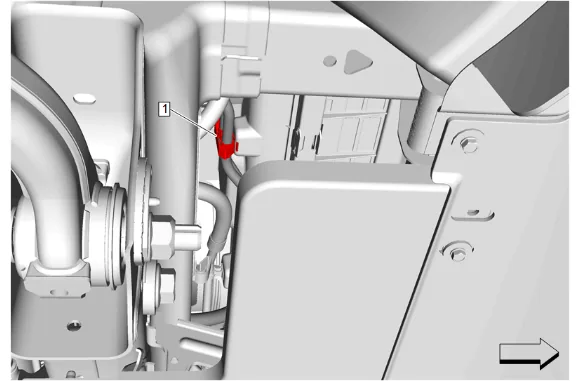

Engine Cooling Fan Motor Replacement (L84, L87) — figure 11

30. Engine Oil Cooler Hose Clip (1) » Release

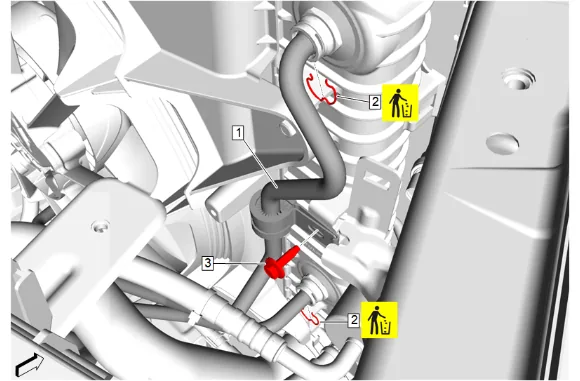

Engine Cooling Fan Motor Replacement (L84, L87) — figure 12

31. Engine Oil Cooler Retainer (2) » Remove and DISCARD [2x]
32. Engine Oil Cooler Pipe Bracket Bolt (3) » Remove
33. Engine Oil Cooler Hose (1) @ Engine Radiator » Remove [2x]

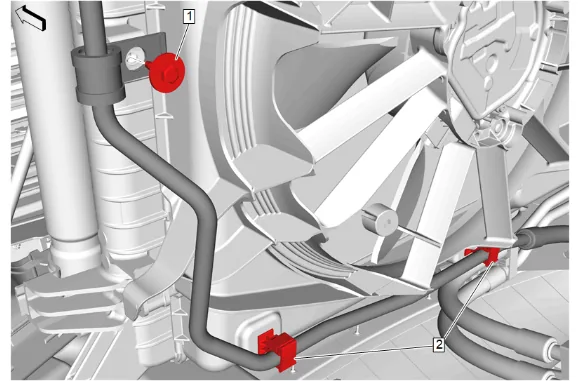

Engine Cooling Fan Motor Replacement (L84, L87) — figure 13

34. Transmission Fluid Cooler Pipe Bolt (1) » Remove
35. Transmission Fluid Cooler Pipe Clip (2) » Remove [2x]

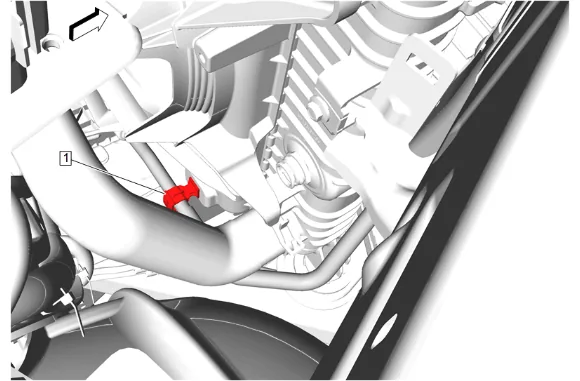

Engine Cooling Fan Motor Replacement (L84, L87) — figure 14

36. Transmission Fluid Cooler Pipe Clip (1) » Release

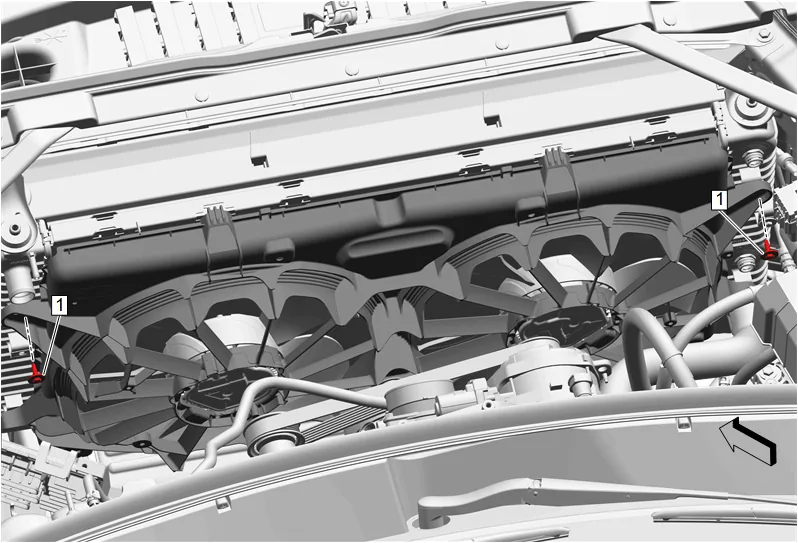

Engine Cooling Fan Motor Replacement (L84, L87) — figure 15

37. Engine Coolant Fan Bracket Bolt (1) » Remove [2x]

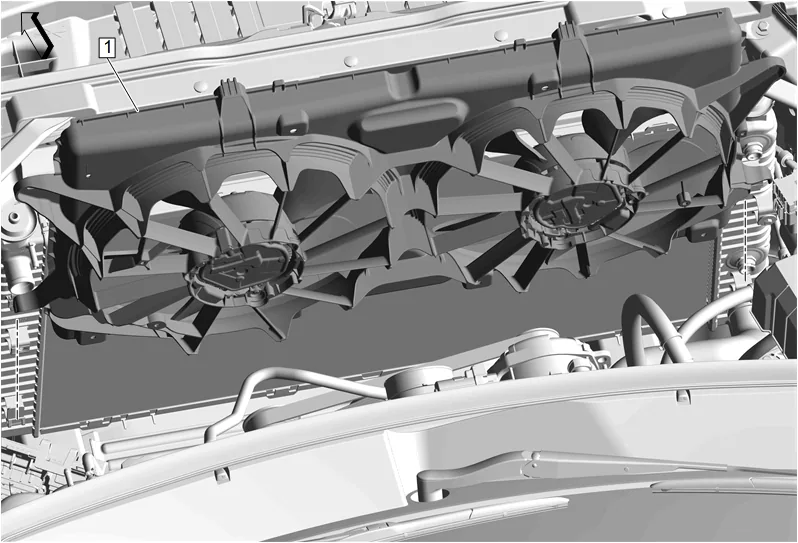

Engine Cooling Fan Motor Replacement (L84, L87) — figure 16

38. Engine Cooler Fan (1) @ Engine Radiator » Remove

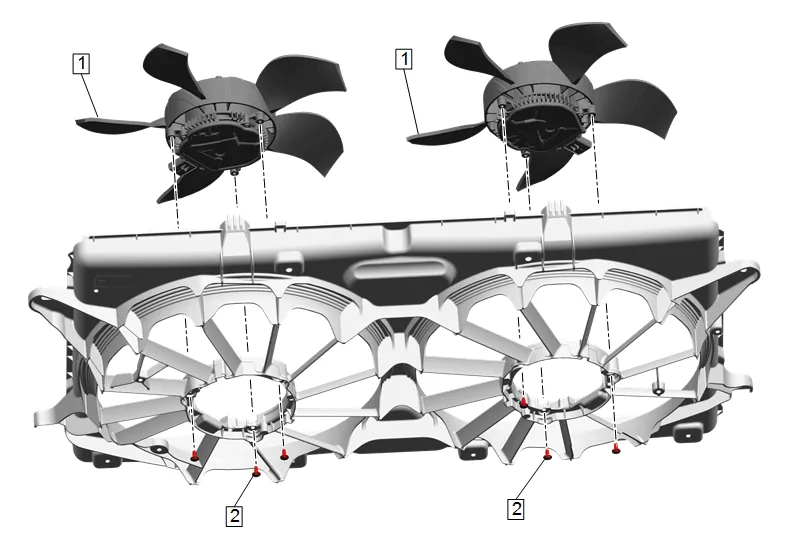

Engine Cooling Fan Motor Replacement (L84, L87) — figure 17

39. Fan Blade Bolt (2) » Remove [6x]

40. Engine Cooling Fan Motor (1) @ Engine Coolant Fan Rear Shroud » Remove [2x] Installation Procedure

41. Engine Cooling Fan Motor (1) @ Engine Coolant Fan Rear Shroud » Install [2x]

Caution

Refer to Fastener Caution.

2. Fan Blade Bolt (2) » Install and tighten [6x] — Fastener Specifications

3. Engine Cooler Fan (1) @ Engine Radiator » Install

4. Engine Coolant Fan Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

5. Transmission Fluid Cooler Pipe Clip (1) » Secure

6. Transmission Fluid Cooler Pipe Clip (2) » Install [2x]

7. Transmission Fluid Cooler Pipe Bolt (1) » Install and tighten — Fastener Specifications

8. Engine Oil Cooler Hose (1) @ Engine Radiator » Install [2x]

9. Engine Oil Cooler Pipe Bracket Bolt (3) » Install and tighten — Fastener Specifications

10. Engine Oil Cooler Retainer (2) » Install NEW [2x]

11. Engine Oil Cooler Hose Clip (1) » Secure

Note

Some components not shown for graphic clarity.

12. Position the wiring harness. (3)
13. Electrical Connector (1) » Connect
14. Wiring Harness Retainer (2) » Install [2x]

Note

Some components not shown for graphic clarity.

15. Position the wiring harness. (2)
16. Electrical Connector (3) » Connect
17. Wiring Harness Retainer (1) » Install [2x]

Note

Some components not shown for graphic clarity.

18. Radiator Inlet Hose (3) @ Engine Radiator » Install

19. Radiator Inlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

20. Radiator Inlet Hose Clip (2) » Install

21. Radiator Surge Tank Outlet Hose (3) » Move into position

22. Radiator Surge Tank Outlet Hose Clip (2) » Install [2x]

23. Engine Wiring Harness Fuse Block Bracket (3) » Install

24. Retaining Tab (1) » Engage

25. Engine Wiring Harness Fuse Block Bracket Bolt (2) » Tighten [2x] — Fastener Specifications

26. Electrical Connector (1) » Install [4x]

27. Engine Wiring Harness Junction Block (3) » Install

28. Retaining Tab (1) » Engage [4x]

29. Engine Wiring Harness Junction Block Bolt (2) » Tighten [4x] — Fastener Specifications

30. Starter Solenoid Cable (4) » Install

31. Battery Positive Cable Nut (3) » Install and tighten — Fastener Specifications

32. Engine Wiring Harness Junction Block Cover (2) » Install

33. Retaining Tab (1) » Engage [2x]

34. Air Cleaner Outlet Duct (3) » Install

Caution

Refer to Component Fastener Tightening Caution.

35. Air Cleaner Outlet Duct Clamp (2) » Tighten [2x] — Fastener Specifications

36. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

37. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

38. Install the engine wiring harness to the air cleaner outlet duct bracket.

39. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

40. Fill the cooling system. Cooling System Draining and Filling

41. Start the engine and check for coolant leaks.
