Tahoe / Yukon Service Manual

Front Floor Rear Console Trim Plate Replacement (DCH)

Removal Procedure

Front Floor Rear Console Trim Plate Replacement (DCH) — figure 1
Front Floor Rear Console Trim Plate Replacement (DCH) — figure 1
  1. Front Floor Console Rear Cup Holder Liner (1) » Remove
  2. Front Floor Console Cup Holder Bolt (2) » Remove
  3. Using a flat-bladed plastic trim tool, release the retaining clips.
  4. Front Floor Console Rear Cup Holder (3) » Remove

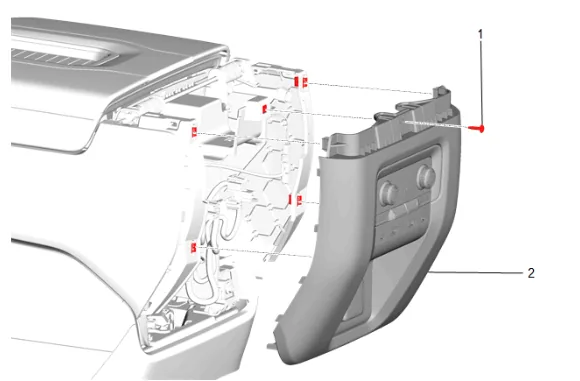

Front Floor Rear Console Trim Plate Replacement (DCH) — figure 2
Front Floor Rear Console Trim Plate Replacement (DCH) — figure 2
  1. Front Floor Console Rear Cover Bolt (1) » Remove
  2. Using a flat-bladed plastic trim tool, release the retaining clips.
  3. Front Floor Console Rear Trim Panel (2) » Remove
  4. Disconnect the electrical connectors.

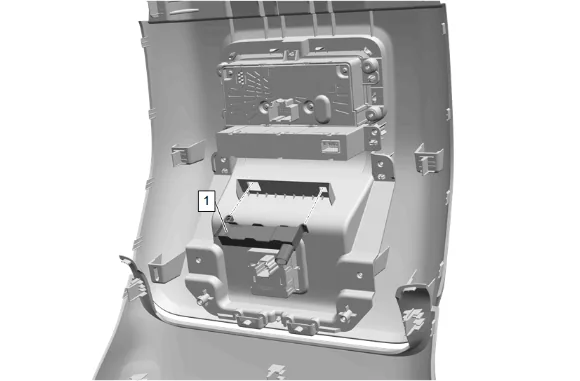

Front Floor Rear Console Trim Plate Replacement (DCH) — figure 3
Front Floor Rear Console Trim Plate Replacement (DCH) — figure 3
  1. Disengage the retaining tab that secures the antenna to the panel.
  2. Low Frequency Console Number 2 Antenna (1) » Remove

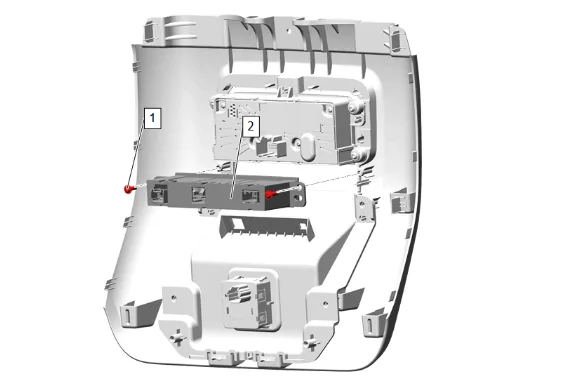

Front Floor Rear Console Trim Plate Replacement (DCH) — figure 4
Front Floor Rear Console Trim Plate Replacement (DCH) — figure 4
  1. Front Floor Console Armrest Bolt (1) » Remove [2x]
  2. Audio/Video Receptacle (2) » Remove
Front Floor Rear Console Trim Plate Replacement (DCH) — figure 5
Front Floor Rear Console Trim Plate Replacement (DCH) — figure 5
  1. Using a suitable plastic trim tool, release the retaining tabs.
  2. Front Floor Console Accessory Power Rear Receptacle (1) » Remove
Front Floor Rear Console Trim Plate Replacement (DCH) — figure 6
Front Floor Rear Console Trim Plate Replacement (DCH) — figure 6

  1. Front Floor Lower Console Bolt (1) » Remove [2x]

  2. Front Floor Console Opening Protector (2) » Remove

  3. Front Floor Compartment Bolt (3) » Remove [4x]

  4. Front Floor Rear Console Trim Plate (4) » Remove Installation Procedure

  5. Front Floor Rear Console Trim Plate (4) » Install

  1. Front Floor Compartment Bolt (3) » Install and tighten [4x] — Fastener Specifications

  2. Front Floor Console Opening Protector (2) » Install

  3. Front Floor Lower Console Bolt (1) » Install and tighten [2x] — Fastener Specifications

  4. Front Floor Console Accessory Power Rear Receptacle (1) » Install

  5. Low Frequency Console Number 2 Antenna (1) » Install

  6. Audio/Video Receptacle (2) » Install

  1. Front Floor Console Armrest Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Connect the electrical connectors.

  3. Front Floor Console Rear Trim Panel (2) » Install

  4. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

  5. Front Floor Console Rear Cup Holder (3) » Install

  6. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

  1. Front Floor Console Rear Cup Holder Liner (1) » Install
