Heater Wiring Harness Replacement

Removal Procedure

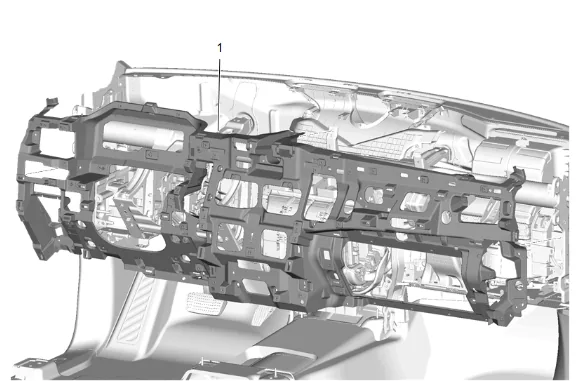

Heater Wiring Harness Replacement — figure 1

1. Instrument Panel Carrier (1) » Remove — Instrument Panel Carrier Replacement

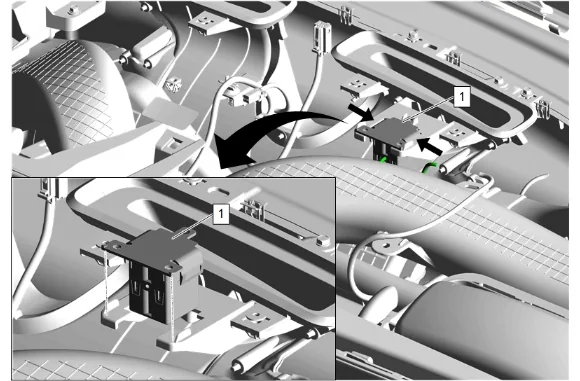

Heater Wiring Harness Replacement — figure 2

2. Release the retaining tabs.
3. Disconnect the electrical connector.
4. Auxiliary Wireless Communication Interface Antenna (1) » Remove

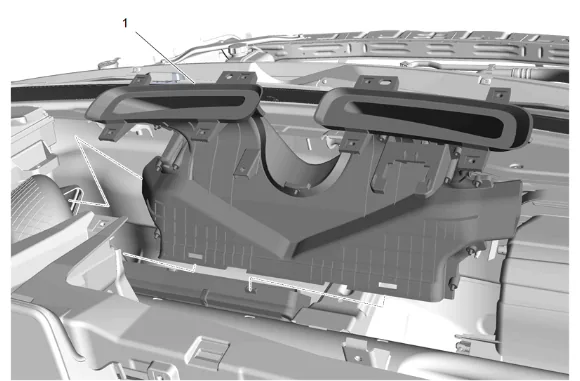

Heater Wiring Harness Replacement — figure 3

5. Pull the windshield defroster outlet duct (1) towards the rear of the car while moving up and to the right to disconnect the left side window defogger outlet duct, to remove the duct.

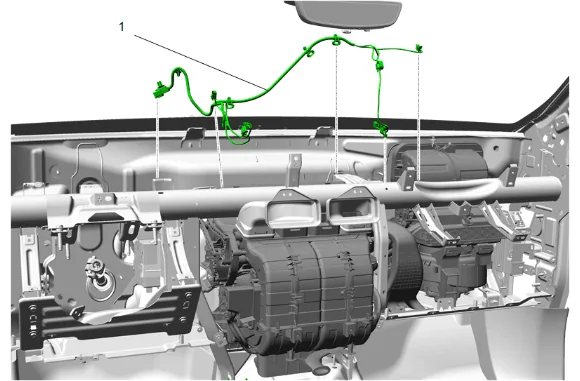

Heater Wiring Harness Replacement — figure 4

Note

Typical wiring harness shown. Individual wiring harnesses may differ based on option content.

6. Disconnect the wiring harness electrical connectors, and release the harness retainers, and remove the heater wiring harness (1). Installation Procedure

Note

Typical wiring harness shown. Individual wiring harnesses may differ based on option content.

1. Install the heater wiring harness (1) and retainers, and connect the wiring harness electrical connectors.

2. Install the windshield defroster outlet duct (1) while connecting the left side window defogger outlet duct.

3. Connect the electrical connector.

4. Auxiliary Wireless Communication Interface Antenna (1) » Install

5. Secure the retaining tabs.

6. Instrument Panel Carrier (1) » Install — Instrument Panel Carrier Replacement
