Air Cleaner Outlet Duct Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5515162 Removal Procedure

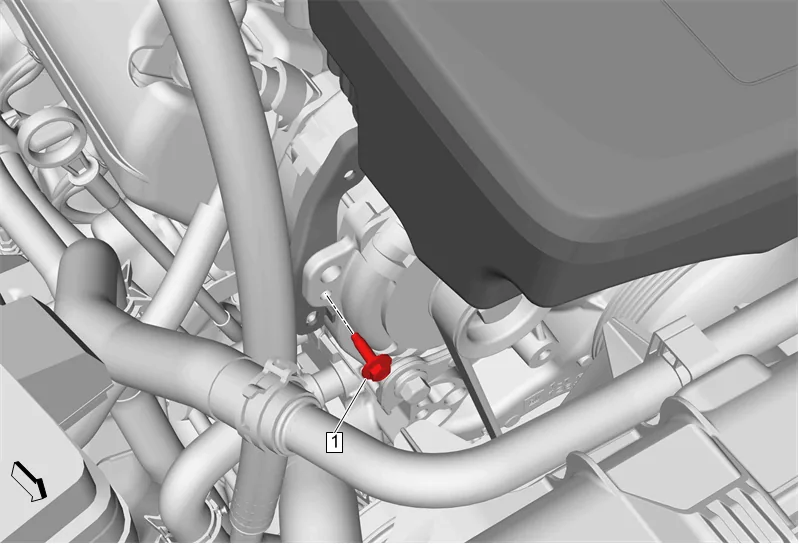

Air Cleaner Outlet Duct Replacement — figure 1
Air Cleaner Outlet Duct Replacement — figure 1
  1. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
  2. Remove engine wiring harness from air cleaner outlet duct bracket.

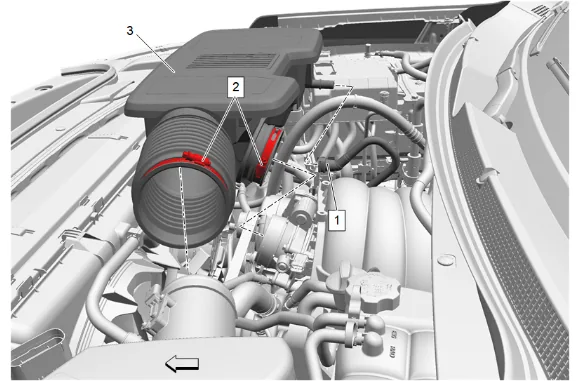

Air Cleaner Outlet Duct Replacement — figure 2
Air Cleaner Outlet Duct Replacement — figure 2

  1. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service

  2. Air Cleaner Outlet Duct Clamp (2) » Loosen [2x]

  3. Air Cleaner Outlet Duct (3) » Remove Installation Procedure

  4. Air Cleaner Outlet Duct (3) » Install

  1. Air Cleaner Outlet Duct Clamp (2) » Tighten [2x] — Fastener Specifications

  2. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

  3. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

  4. Install engine wiring harness to air cleaner outlet duct bracket.
