Front Side Door Window Regulator Motor Replacement

Removal Procedure

Warning

Refer to Glass and Sheet Metal Handling Warning.

Warning

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Warning

When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.

1. Disable the SIR system. SIR Disabling and Enabling
2. Front Side Door Trim » Remove — Front Side Door Trim Removal and Installation

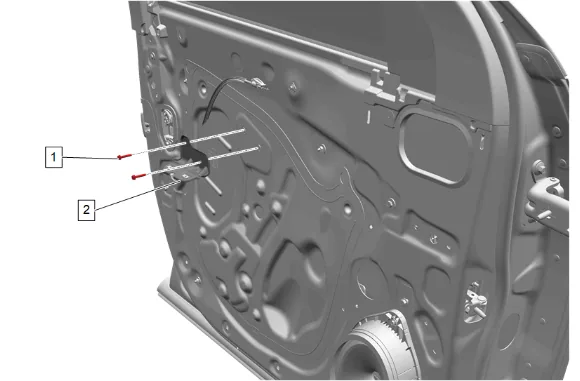

Front Side Door Window Regulator Motor Replacement — figure 1

3. Front Side Door Armrest Bracket Bolt (1) » Remove [2x]
4. Front Side Door Pull Handle Bracket (2) » Remove

Front Side Door Window Regulator Motor Replacement — figure 2

5. Route front side door inside handle cable through hole in deflector (1).
6. Front Side Door Water Deflector (1) » Remove

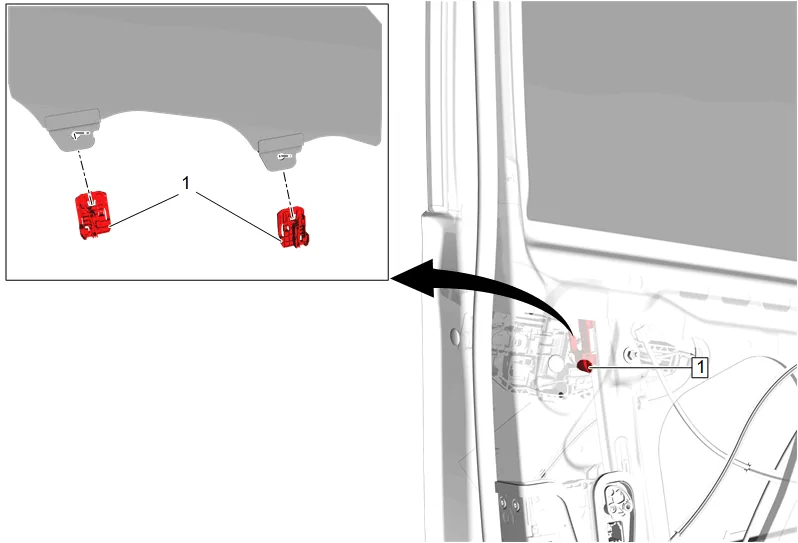

Front Side Door Window Regulator Motor Replacement — figure 3

7. Place the front side door window in the full up position and tape in place.
8. Front Side Door Window Regulator Sash Retainer (1) » Release [2x]
9. Place the front side door window regulator in the full down position.
10. Disconnect the electrical connector.

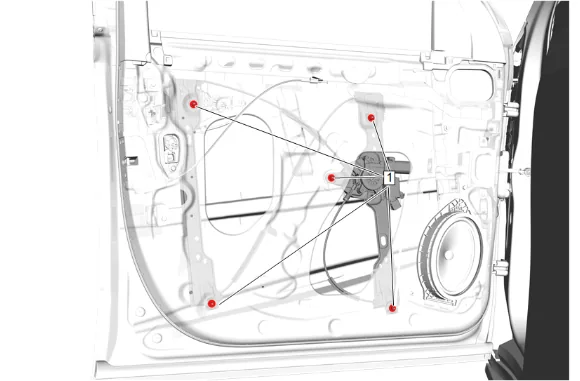

Front Side Door Window Regulator Motor Replacement — figure 4

11. Front Side Door Window Regulator Nut (1) » Remove [5x]

Front Side Door Window Regulator Motor Replacement — figure 5

12. Front Side Door Window Regulator (1) » Remove

Front Side Door Window Regulator Motor Replacement — figure 6

13. Front Side Door Window Regulator Motor Bolt (1) » Remove [3x]

Front Side Door Window Regulator Motor Replacement — figure 7

14. Front Side Door Window Regulator Motor (1) » Remove Installation Procedure

15. Front Side Door Window Regulator Motor (1) » Install

Caution

Refer to Fastener Caution.

2. Front Side Door Window Regulator Motor Bolt (1) » Install and tighten [3x] — Fastener Specifications

3. Front Side Door Window Regulator (1) » Install

4. Front Side Door Window Regulator Nut (1) » Install and tighten [5x] — Fastener Specifications

5. Connect the electrical connector.

6. Place the window regulator sash retainer (1) in the full up position.

7. Remove the tape holding the front side door window in the full up position.

Note

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

8. Route front side door inside handle cable through hole in deflector (1).

9. Front Side Door Water Deflector (1) » Install

10. Front Side Door Pull Handle Bracket (2) » Install

11. Front Side Door Armrest Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

12. Front Side Door Trim » Install — Front Side Door Trim Removal and Installation

13. Enable the SIR System. SIR Disabling and Enabling

14. Ensure the window system operates properly.
