Charge Air Cooler Coolant Reservoir Replacement

Removal Procedure

  1. Drain the charge air cooling system. Charge Air Cooling System Draining and Filling

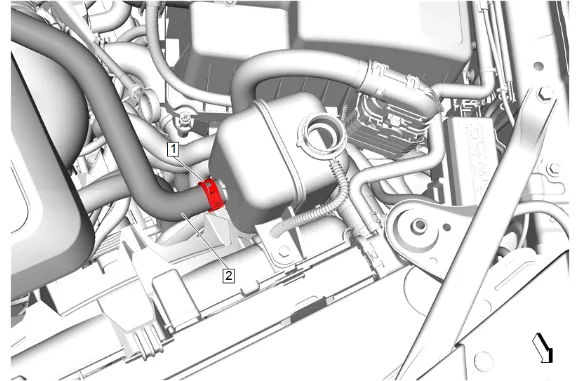

Charge Air Cooler Coolant Reservoir Replacement — figure 1
Charge Air Cooler Coolant Reservoir Replacement — figure 1
  1. Turbocharger Coolant Return Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
  2. Auxiliary Radiator Outlet Hose (2) @ Charge Air Cooler Coolant Reservoir » Remove

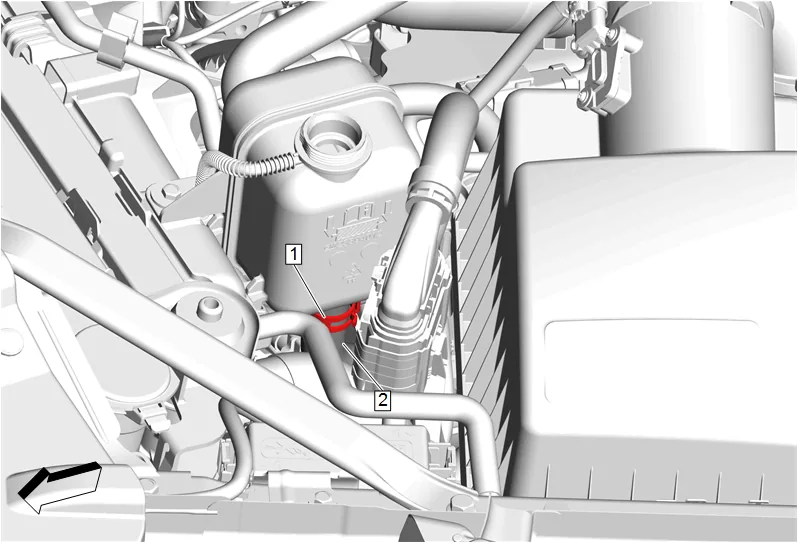

Charge Air Cooler Coolant Reservoir Replacement — figure 2
Charge Air Cooler Coolant Reservoir Replacement — figure 2
  1. Charge Air Cooler Coolant Pump Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
  2. Charge Air Cooler Coolant Pump Hose (2) @ Charge Air Cooler Coolant Reservoir » Remove

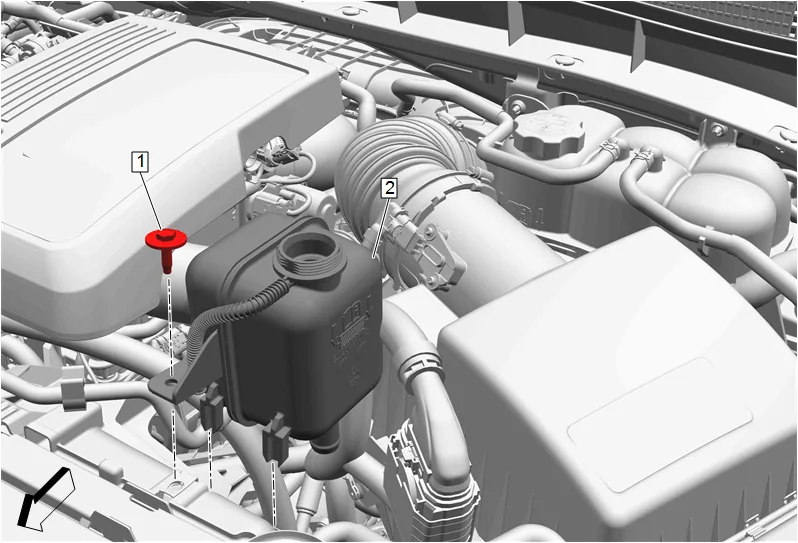

Charge Air Cooler Coolant Reservoir Replacement — figure 3
Charge Air Cooler Coolant Reservoir Replacement — figure 3

  1. Charge Air Cooler Coolant Reservoir Bolt (1) » Remove

  2. Charge Air Cooler Coolant Reservoir (2) » Remove Installation Procedure

  3. Charge Air Cooler Coolant Reservoir (2) » Install

  1. Charge Air Cooler Coolant Reservoir Bolt (1) » Install and tighten — Fastener Specifications

  2. Charge Air Cooler Coolant Pump Hose (2) @ Charge Air Cooler Coolant Reservoir » Install

  3. Charge Air Cooler Coolant Pump Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

  4. Auxiliary Radiator Outlet Hose (2) @ Charge Air Cooler Coolant Reservoir » Install

  5. Turbocharger Coolant Return Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines

  • Spring Type
  1. Fill the charge air cooling system. Charge Air Cooling System Draining and Filling
  2. Start the engine and check for coolant leaks.
