Front Floor Console Auxiliary Cooling Duct Replacement (without UQA)

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA)

Warning

Refer to SIR Warning. Removal Procedure

1. Disable the SIR system. SIR Disabling and Enabling

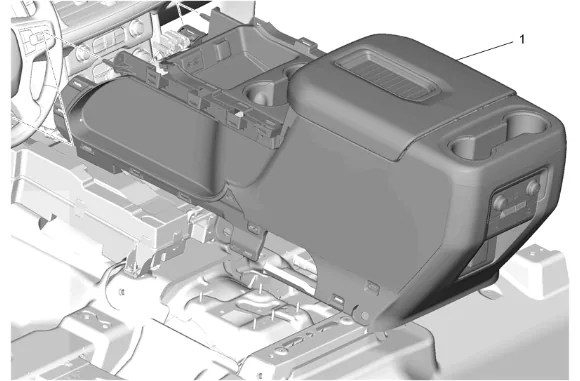

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 1

2. Front Floor Console (1) » Remove — Front Floor Console Removal and Installation

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Trim Plate Applique (1) » Remove

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Instrument Panel Center Trim Plate Applique (1) » Remove

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 5

9. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
10. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

11. Instrument Panel Trim Pad (2) » Remove
12. Disconnect the electrical connector.

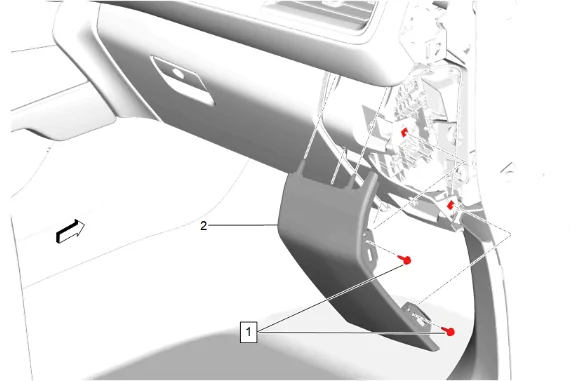

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 6

13. Instrument Panel Compartment Bolt (1) » Remove [2x]
14. Using a flat-bladed plastic trim tool, release the retaining clips.
15. Instrument Panel Lower Trim Panel Outer Filler (2) » Remove

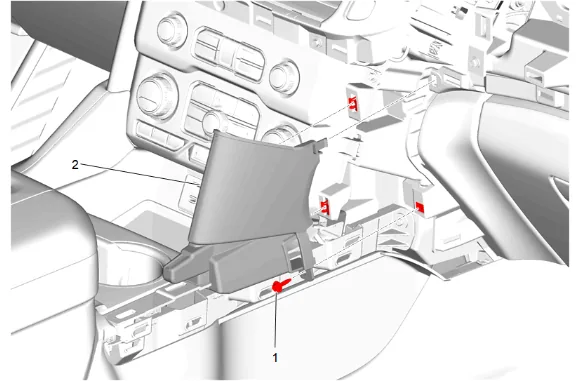

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 7

16. Instrument Panel Lower Trim Panel Bolt (1) » Remove
17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

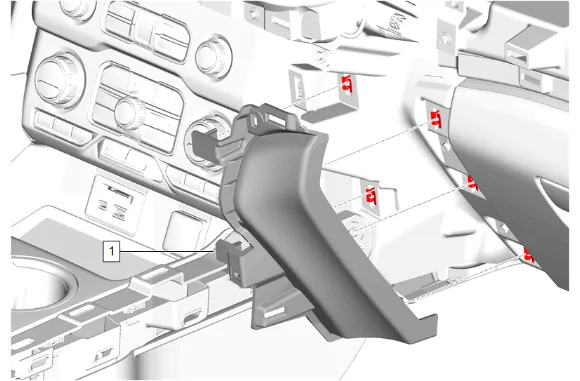

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 8

19. Using a flat-bladed plastic trim tool, release the retaining clips.
20. Instrument Panel Lower Trim Panel (1) » Remove

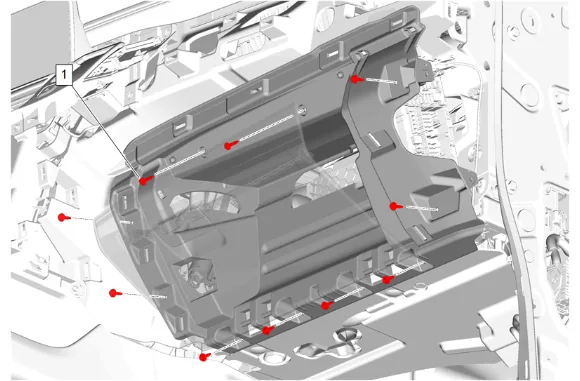

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 9

21. Instrument Panel Compartment Bolt (1) » Remove [10x]

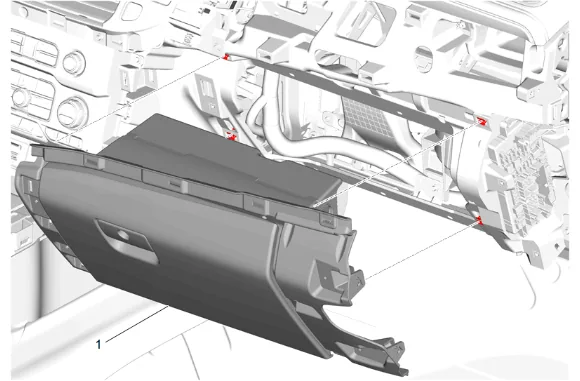

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 10

22. Instrument Panel Compartment (1) » Remove

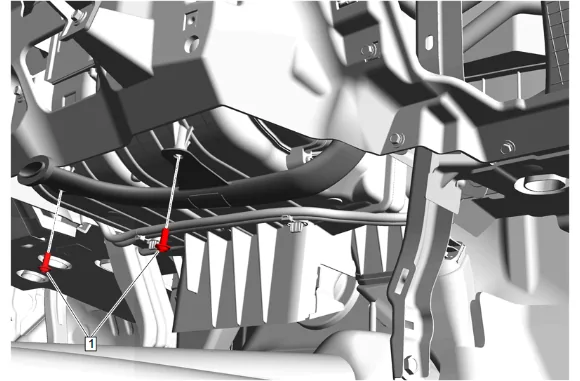

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 11

23. Front Floor Console Auxiliary Cooling Intermediate Duct Bolt (1) » Remove [2x]

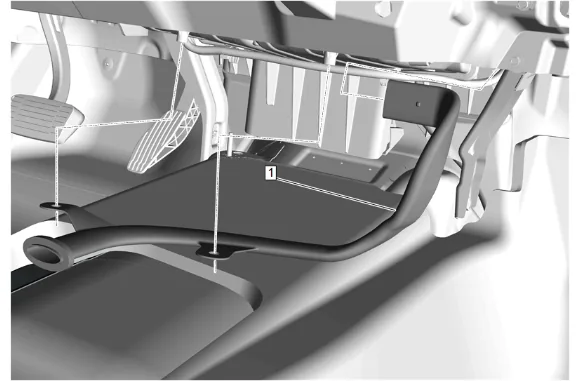

Front Floor Console Auxiliary Cooling Duct Replacement (without UQA) — figure 12

24. Front Floor Console Auxiliary Cooling Duct (1) » Remove Installation Procedure

25. Front Floor Console Auxiliary Cooling Duct (1) » Install

Caution

Refer to Fastener Caution.

2. Front Floor Console Auxiliary Cooling Intermediate Duct Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Instrument Panel Compartment (1) » Install

4. Instrument Panel Compartment Bolt (1) » Install and tighten [10x] — Fastener Specifications

5. Instrument Panel Lower Trim Panel (1) » Install

6. Instrument Panel Lower Center Trim Plate Applique (2) » Install

7. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

8. Instrument Panel Lower Trim Panel Outer Filler (2) » Install

9. Instrument Panel Compartment Bolt (1) » Install and tighten [2x] — Fastener Specifications

10. Connect the electrical connector.

11. Instrument Panel Trim Pad (2) » Install

12. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

13. Instrument Panel Center Trim Plate Applique (1) » Install

14. Instrument Panel Trim Plate Applique (1) » Install

15. Instrument Panel Fuse Block Access Hole Cover (1) » Install

16. Front Floor Console (1) » Install — Front Floor Console Removal and Installation

17. Enable the SIR System. SIR Disabling and Enabling
