Tahoe / Yukon Service Manual

Front Bumper Fascia Reinforcement Replacement

Removal Procedure

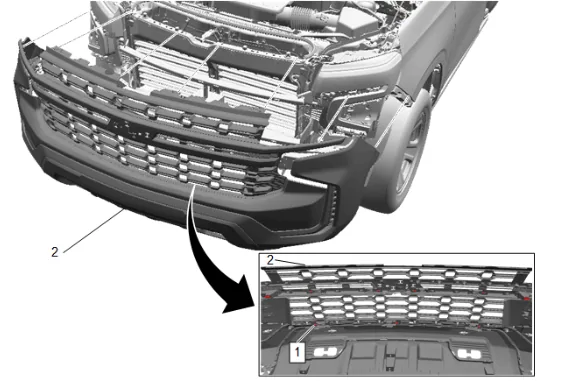

Front Bumper Fascia Reinforcement Replacement — figure 1
Front Bumper Fascia Reinforcement Replacement — figure 1
  1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

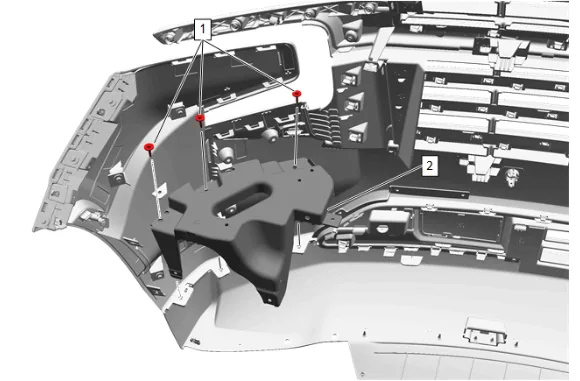

Front Bumper Fascia Reinforcement Replacement — figure 2
Front Bumper Fascia Reinforcement Replacement — figure 2

  1. Reposition the wiring harness.

  2. Front Bumper Fascia Reinforcement Bolt (1) » Remove [3x]

  3. Front Bumper Fascia Reinforcement (2) » Remove Installation Procedure

  4. Front Bumper Fascia Reinforcement (2) » Install

  1. Front Bumper Fascia Reinforcement Bolt (1) » Install and tighten [3x] — Fastener Specifications

  2. Install the wiring harness.

  3. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
