Tahoe / Yukon Service Manual

Assist Step Lamp Replacement (B3L)

Removal Procedure

  1. Deploy the assist steps.
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle.
Assist Step Lamp Replacement (B3L) — figure 1
Assist Step Lamp Replacement (B3L) — figure 1
  1. Retainer (2) » Disengage [2x]
  2. Assist Step Wire (1) » Reposition away
  3. Assist Step Finish Cap Bolt (3) » Remove
Assist Step Lamp Replacement (B3L) — figure 2
Assist Step Lamp Replacement (B3L) — figure 2
  1. Disengage the retaining tabs (2), from the slots (1) in the assist step.
  2. Assist Step Front Finish Cap (3) » Remove
Assist Step Lamp Replacement (B3L) — figure 3
Assist Step Lamp Replacement (B3L) — figure 3
  1. Assist Step Finish Cap Bolt (1) » Remove

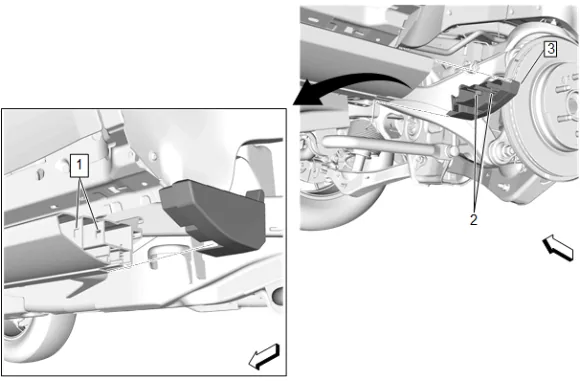

Assist Step Lamp Replacement (B3L) — figure 4
Assist Step Lamp Replacement (B3L) — figure 4
  1. Disengage the retaining tabs (2), from the slots (1) in the assist step.
  2. Assist Step Rear Finish Cap (3) » Remove

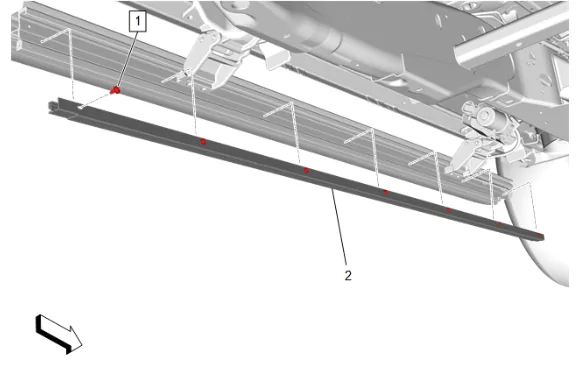

Assist Step Lamp Replacement (B3L) — figure 5
Assist Step Lamp Replacement (B3L) — figure 5
  1. Assist Step Shield Bolt (1) » Remove [7x]
  2. Assist Step Insert (2) » Remove

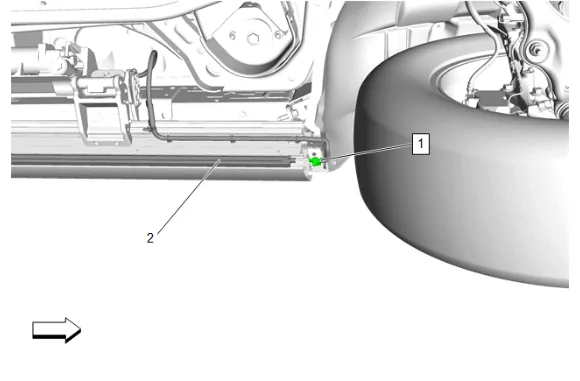

Assist Step Lamp Replacement (B3L) — figure 6
Assist Step Lamp Replacement (B3L) — figure 6
  1. Electrical Connector (1) @ Assist Step Lamp (2) » Disconnect

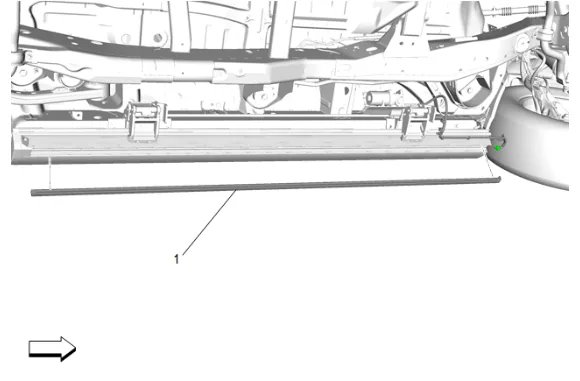

Assist Step Lamp Replacement (B3L) — figure 7
Assist Step Lamp Replacement (B3L) — figure 7

  1. Remove the assist step lamp from the double sided tape.

  2. Assist Step Lamp (1) » Remove Installation Procedure

  3. Assist Step Lamp (1) » Install

  4. Electrical Connector (1) @ Assist Step Lamp (2) » Connect

  5. Assist Step Insert (2) » Install

  1. Assist Step Shield Bolt (1) » Install and tighten [7x] — Fastener Specifications

  2. Engage the retaining tabs (2), to the slots (1) in the assist step.

  3. Assist Step Front Finish Cap (3) » Install

  4. Assist Step Finish Cap Bolt (3) » Install and tighten — Fastener Specifications

  5. Retainer (2) » Engage [2x]

  6. Engage the retaining tabs (2), to the slots (1) in the assist step.

  7. Assist Step Rear Finish Cap (3) » Install

  8. Assist Step Finish Cap Bolt (1) » Install and tighten — Fastener Specifications

  9. Remove the support and lower the vehicle.

  10. Perform the assist step learn procedure. Assist Step Learn
