Automatic Transmission Case Hole Plug Replacement

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - On Vehicle | Document ID: 5579700 Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

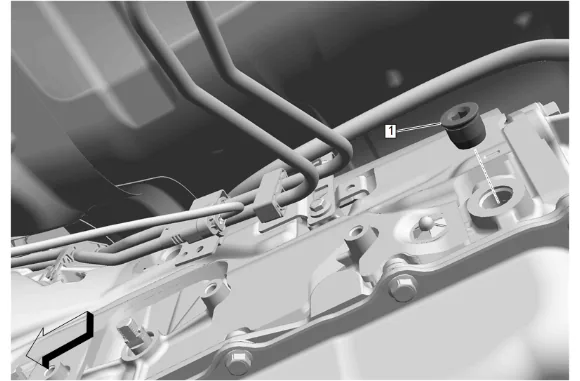

Automatic Transmission Case Hole Plug Replacement — figure 1

2. Clean the surrounding area of the automatic transmission case hole plug (1).

3. Automatic Transmission Case Hole Plug (1) » Remove Installation Procedure

4. Check the transmission fluid level and condition and correct as necessary. Transmission Fluid Level and Condition Check

5. Prepare the automatic transmission case hole plug (1) for installation as follows: 2.1. Remove all traces of the adhesive patch from the plug and the mating threads using the appropriate tools. 2.2. Clean the threads of the plug and mating threads with denatured alcohol or equivalent and allow to dry. 2.3. Apply thread locking adhesive to the plug. Adhesives, Fluids, Lubricants, and Sealers 2.4. Ensure there are no gaps in the thread locking adhesive once applied to the plug.

Caution

Refer to Component Fastener Tightening Caution.

3. Automatic Transmission Case Hole Plug (1) » Install and tighten — Fastener Specifications
4. Lower the vehicle.
