Rear Bumper Upper Fascia Replacement

Removal Procedure

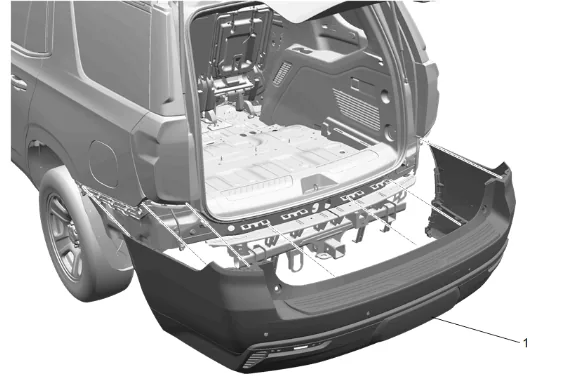

Rear Bumper Upper Fascia Replacement — figure 1
Rear Bumper Upper Fascia Replacement — figure 1
  1. Rear Bumper Fascia (1) » Remove — Rear Bumper Fascia Removal and Installation
  2. Disconnect all electrical connectors.
  3. Remove the wiring harness.
Rear Bumper Upper Fascia Replacement — figure 2
Rear Bumper Upper Fascia Replacement — figure 2

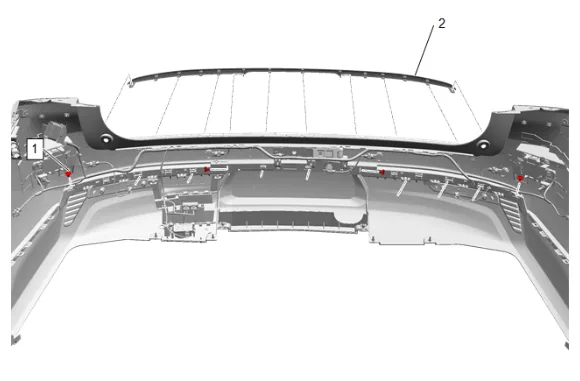

  1. Rear Bumper Fascia Molding Retainer (1) » Remove [4x]
  2. Using the appropriate tool, release the rear bumper fascia lower molding (2).
Rear Bumper Upper Fascia Replacement — figure 3
Rear Bumper Upper Fascia Replacement — figure 3
  1. Turn the 2 rear bumper fascia trailer hitch cover retainer (1) ¼ turn counter clockwise and remove.
  2. Rear Bumper Fascia Trailer Hitch Cover (2) » Remove
Rear Bumper Upper Fascia Replacement — figure 4
Rear Bumper Upper Fascia Replacement — figure 4

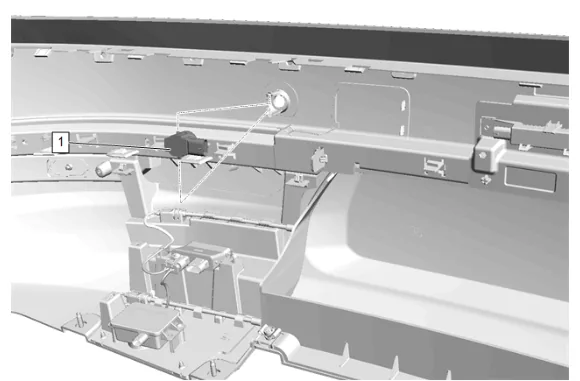

  1. If equipped, release the 3 retainer tabs and remove the low frequency rear bumper antenna (1).
Rear Bumper Upper Fascia Replacement — figure 5
Rear Bumper Upper Fascia Replacement — figure 5

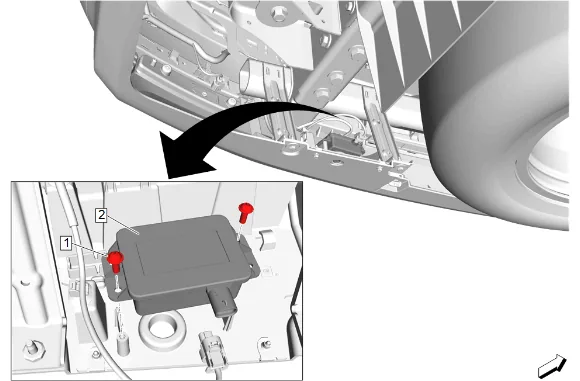

  1. Remove the left and right side object sensing module bolt (1).
  2. Remove the left and right side object sensing alert module (2).
Rear Bumper Upper Fascia Replacement — figure 6
Rear Bumper Upper Fascia Replacement — figure 6

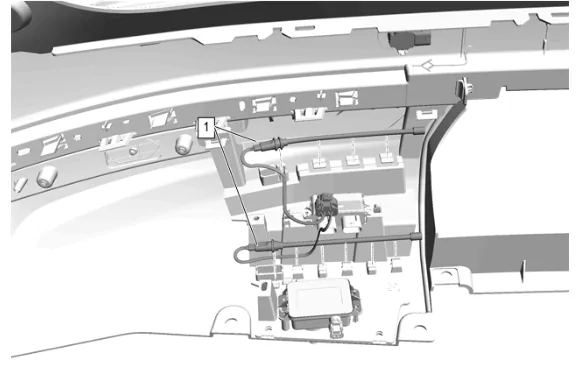

  1. Lift the locking tabs on the housing and remove the 4 parking assist alarm sensors (1).
Rear Bumper Upper Fascia Replacement — figure 7
Rear Bumper Upper Fascia Replacement — figure 7

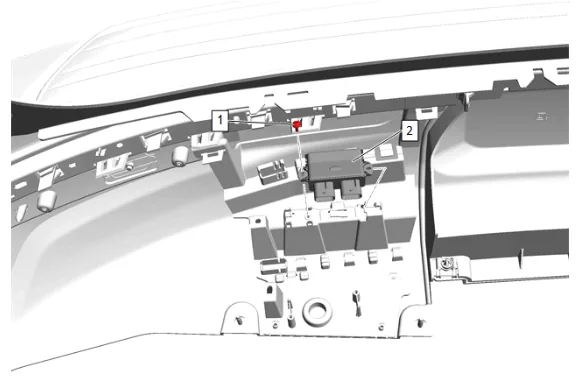

  1. Disengage the wire at the connector, disengage opposite end, then pull back on each tab, and apply slight force on rear closure hands fee sensor (1) push the sensor out of the tabs.
Rear Bumper Upper Fascia Replacement — figure 8
Rear Bumper Upper Fascia Replacement — figure 8

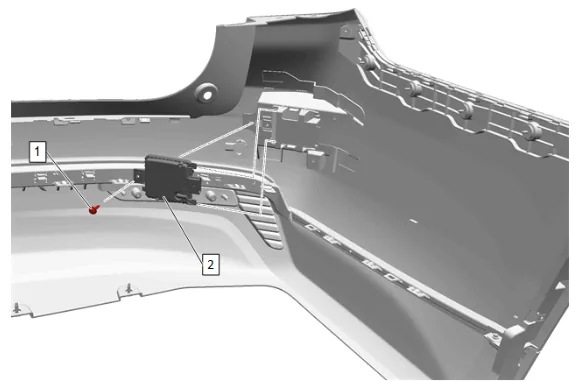

  1. Rear Closure Hands Free Module Bolt (1) » Remove
  2. Rear Closure Hands Free Module (2) » Remove
Rear Bumper Upper Fascia Replacement — figure 9
Rear Bumper Upper Fascia Replacement — figure 9
  1. Rear Closure Hands Free Module Bolt (1) » Remove [2x]
  2. Rear Closure Hands Free Lamp (2) » Remove
Rear Bumper Upper Fascia Replacement — figure 10
Rear Bumper Upper Fascia Replacement — figure 10

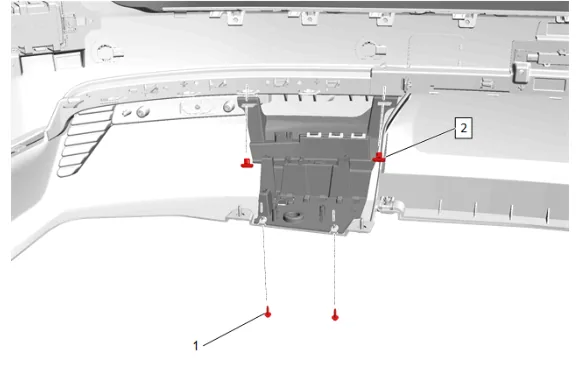

  1. Rear Closure Hands Free Module Bolt (1) » Remove [2x]
  2. Rear Closure Hands Free Module Retainer (2) » Remove [2x]
Rear Bumper Upper Fascia Replacement — figure 11
Rear Bumper Upper Fascia Replacement — figure 11

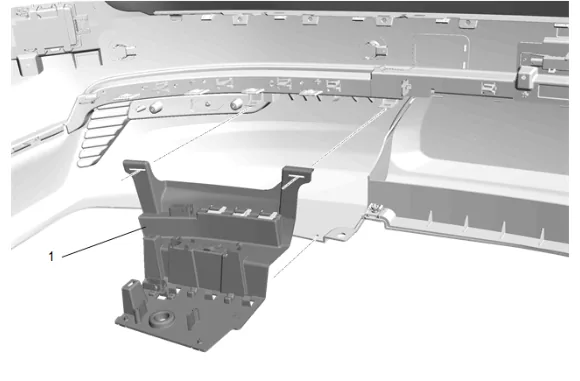

  1. Rear Closure Hands Free Module Bracket (1) » Remove

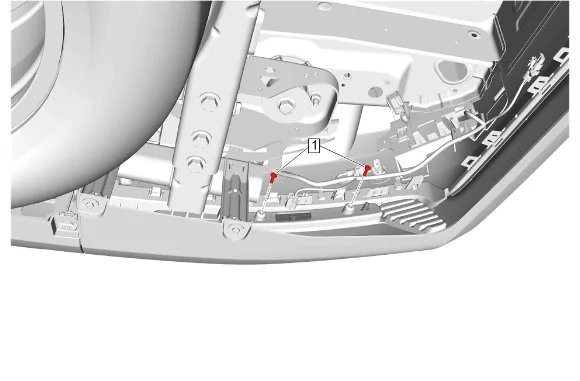

Rear Bumper Upper Fascia Replacement — figure 12
Rear Bumper Upper Fascia Replacement — figure 12
  1. Rear Fascia Signal Lamp Bolt (1) » Remove [4x]
Rear Bumper Upper Fascia Replacement — figure 13
Rear Bumper Upper Fascia Replacement — figure 13
  1. Rear Fascia Lower Signal Lamp (1) » Remove [2x]
Rear Bumper Upper Fascia Replacement — figure 14
Rear Bumper Upper Fascia Replacement — figure 14

  1. Rear Bumper Fascia Bolt (1) » Remove [4x]

  2. Rear Bumper Fascia Retainer (2) » Remove [4x]

  3. Release the retainer tabs on the rear lower fascia  and remove from the rear bumper upper fascia (3). Installation Procedure

  4. Install the rear bumper upper fascia (3) to the rear bumper lower fascia.

  5. Rear Bumper Fascia Retainer (2) » Install [4x]

  1. Rear Bumper Fascia Bolt (1) » Install and tighten [4x] — Fastener Specifications

  2. Rear Fascia Lower Signal Lamp (1) » Install [2x]

  3. Rear Fascia Signal Lamp Bolt (1) » Install and tighten [4x] — Fastener Specifications

  4. Rear Closure Hands Free Module Bracket (1) » Install

  5. Rear Closure Hands Free Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  6. Rear Closure Hands Free Module Retainer (2) » Install [2x]

  7. Rear Closure Hands Free Lamp (2) » Install

  8. Rear Closure Hands Free Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  9. Rear Closure Hands Free Module (2) » Install

  10. Rear Closure Hands Free Module Bolt (1) » Install and tighten — Fastener Specifications

  11. Rear Closure Hands Free Sensor (1) » Install

  12. Connect the electrical connector.

  13. { If equipped } Low Frequency Rear Bumper Antenna (1) » Install

  14. Rear Bumper Fascia Trailer Hitch Cover (2) » Install

  15. Install the 2 rear bumper fascia trailer hitch cover retainer (1) turn a ¼ turn clockwise to secure.

  16. Install the left and right side object sensing alert module (2).

  17. Install and tighten the left and right side object sensing alert module (1). Fastener Specifications

  1. Insert the 4 parking assist alarm sensor (1)  into the housing.

  2. Rear Bumper Fascia Molding (2) » Install

  3. Rear Bumper Fascia Molding Retainer (1) » Install [4x]

  4. Install the wiring harness.

  5. Connect all electrical connectors.

  6. Rear Bumper Fascia (1) » Install — Rear Bumper Fascia Removal and Installation

  7. Perform the necessary programming and setup procedure: Control Module References
