Rear Side Door Window Upper Reveal Molding Replacement

Rear Side Door Window Upper Reveal Molding Replacement Single Use Fasteners and Components Rear Side Door Window Belt Reveal Molding Rear Side Door Window Upper Reveal Molding Rivet [2x] Removal Procedure

Warning

Eye protection must be worn when drilling rivets to reduce the chance of personal injury.

1. Rear Side Door Trim » Remove — Rear Side Door Trim Removal and Installation

Rear Side Door Window Upper Reveal Molding Replacement — figure 1

Note

There is a retaining clip on the backside of the rear portion of the rear side door window garnish molding (1).

2. Use a flat-bladed plastic tool to release the lower alignment pins on the rear side door window garnish molding (1).
3. Use a flat-bladed plastic tool to disengage the retaining clip.
4. Rear Side Door Window Garnish Molding (1) » Remove

Rear Side Door Window Upper Reveal Molding Replacement — figure 2

5. Reposition the rear side door weatherstrip to access the rear side door window belt reveal molding bolts (1).
6. Rear Side Door Window Belt Reveal Molding Bolt (1) » Remove [2x]

Rear Side Door Window Upper Reveal Molding Replacement — figure 3

7. Using the appropriate tool, lift up the rear side door window belt reveal molding (1) to remove from the door flange.
8. Rear Side Door Window Belt Reveal Molding (1) » Remove and DISCARD

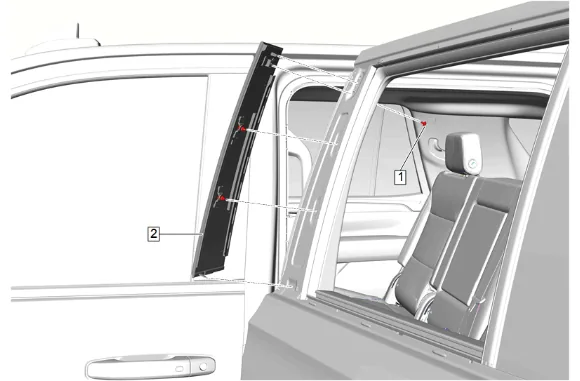

Rear Side Door Window Upper Reveal Molding Replacement — figure 4

9. Rear Side Door Window Frame Front Applique Bolt (1) » Remove
10. Using the appropriate tool, release the rear side door window frame front applique  (2) from the door panel.
11. Rear Side Door Window Frame Front Applique (2) » Remove

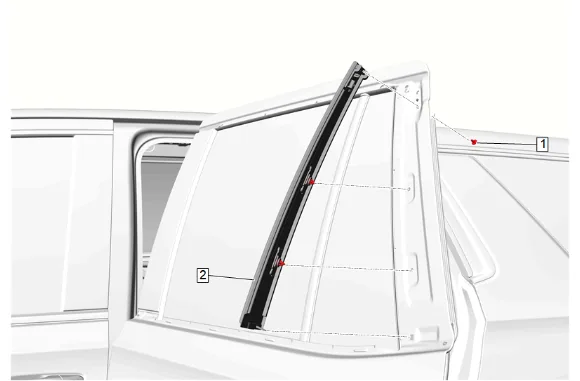

Rear Side Door Window Upper Reveal Molding Replacement — figure 5

12. Rear Side Door Window Frame Rear Applique Bolt (1) » Remove
13. Using the appropriate tool, release the rear side door window frame rear applique  (2) from the door panel.
14. Rear Side Door Window Frame Rear Applique (2) » Remove

Rear Side Door Window Upper Reveal Molding Replacement — figure 6

Warning

Refer to Eye Protection Warning.

15. Rear Side Door Window Upper Reveal Molding Rivet (1) » Remove and DISCARD

Rear Side Door Window Upper Reveal Molding Replacement — figure 7

16. Rear Side Door Window Upper Reveal Molding (1) » Remove Installation Procedure

17. Rear Side Door Window Upper Reveal Molding (1) » Install

Caution

Refer to Fastener Caution.

2. Rear Side Door Window Upper Reveal Molding Rivet (1) » Install NEW — Fastener Specifications

3. Rear Side Door Window Frame Rear Applique (2) » Install

4. Rear Side Door Window Frame Rear Applique Bolt (1) » Install and tighten — Fastener Specifications

5. Rear Side Door Window Frame Front Applique (2) » Install

6. Rear Side Door Window Frame Front Applique Bolt (1) » Install and tighten — Fastener Specifications

7. Rear Side Door Window Belt Reveal Molding (1) » Install NEW

8. Rear Side Door Window Belt Reveal Molding Bolt (1) » Install and tighten [2x] — Fastener Specifications

9. Reposition the rear side door weatherstrip.

Note

Ensure that the door weatherstrip is not trapped below the rear side door window garnish molding (1) once completely installed. Reposition the weatherstrip as necessary.

10. Rear Side Door Window Garnish Molding (1) » Install
11. Rear Side Door Trim » Install — Rear Side Door Trim Removal and Installation
12. Ensure the window system operates properly.
