Battery Auxiliary Tray Hold Down Strap Replacement (9C1, 5W4)

Battery Auxiliary Tray Hold Down Strap Replacement (9C1, 5W4) Removal Procedure

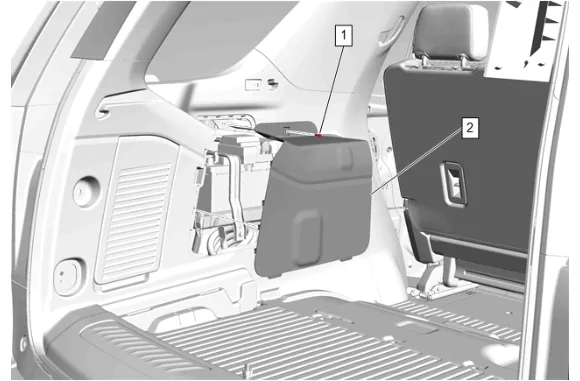

Battery Auxiliary Tray Hold Down Strap Replacement (9C1, 5W4) — figure 1
Battery Auxiliary Tray Hold Down Strap Replacement (9C1, 5W4) — figure 1
  1. Quarter Upper Trim Panel Bolt (1) » Remove
  2. Quarter Trim Panel Cover (2) » Remove
  3. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

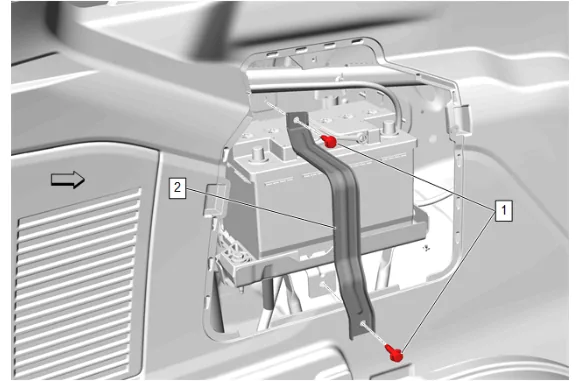

Battery Auxiliary Tray Hold Down Strap Replacement (9C1, 5W4) — figure 2
Battery Auxiliary Tray Hold Down Strap Replacement (9C1, 5W4) — figure 2

  1. Battery Hold Down Strap Bolt (1) » Remove [2x]

  2. Battery Auxiliary Tray Hold Down Strap (2) » Remove Installation Procedure

  3. Battery Auxiliary Tray Hold Down Strap (2) » Install

  1. Battery Hold Down Strap Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

  3. Quarter Trim Panel Cover (2) » Install

  4. Quarter Upper Trim Panel Bolt (1) » Install and tighten — Fastener Specifications
