Tahoe / Yukon Service Manual

Heater and Air Conditioning Evaporator Case Replacement - Upper

Heater and Air Conditioning Evaporator Case Replacement

  • Upper Single Use Fasteners and Components Air Conditioning Evaporator Seal - Small Air Conditioning Evaporator Seal - Large Air Conditioning Evaporator Thermal Expansion Valve Seal - Large [2x] Air Conditioning Evaporator Thermal Expansion Valve Seal - Small [2x] Removal Procedure

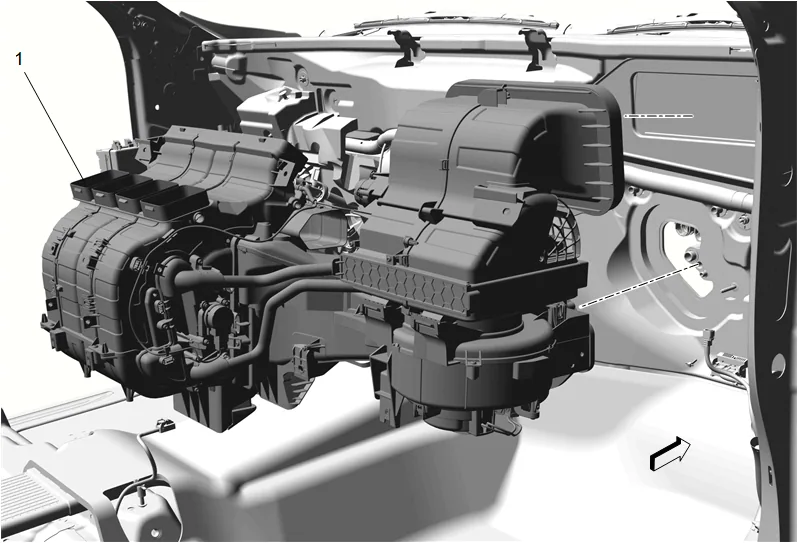

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 1
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 1
  1. Heater and Air Conditioning Evaporator and Blower Module (1) » Remove — Heater and Air Conditioning Evaporator and Blower Module Removal and Installation

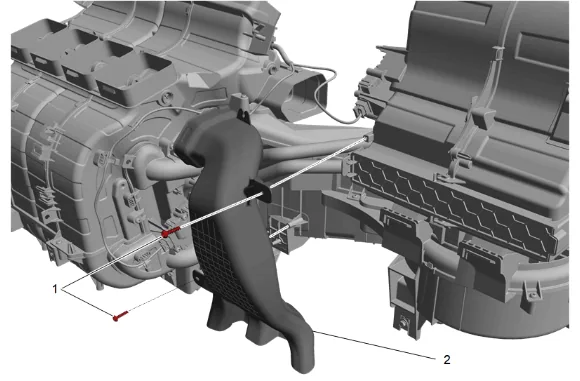

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 2
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 2
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [2x]
  2. Floor Front Air Outlet Duct - Right Side (2) » Remove

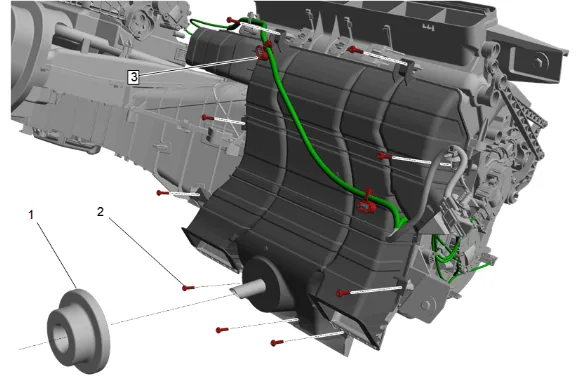

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 3
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 3
  1. Air Conditioning Evaporator Case Drain Tube Seal (1) » Remove
  2. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) » Remove [7x]
  3. Wiring Harness Retainer (3) » Remove [4x]

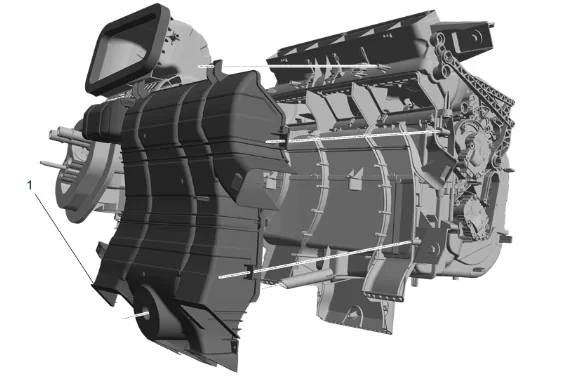

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 4
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 4
  1. Heater And Air Conditioning Evaporator Module Cover (1) » Remove

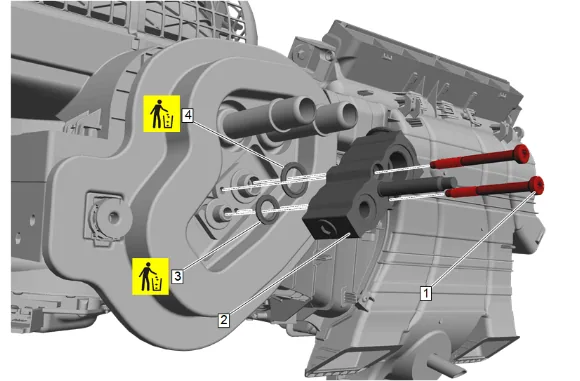

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 5
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 5
  1. Air Conditioning Evaporator Thermal Expansion Valve Bolt (1) » Remove [2x]
  2. Air Conditioning Evaporator Thermal Expansion Valve (2) » Remove
  3. Air Conditioning Evaporator Seal - Small (3) » Remove and DISCARD
  4. Air Conditioning Evaporator Seal - Large (4) » Remove and DISCARD

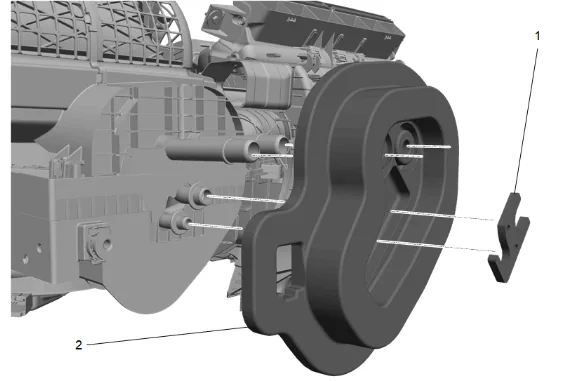

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 6
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 6
  1. Air Conditioning Evaporator Tube Bracket (1) » Remove
  2. Heater And Air Conditioning Evaporator Tube Seal (2) » Remove

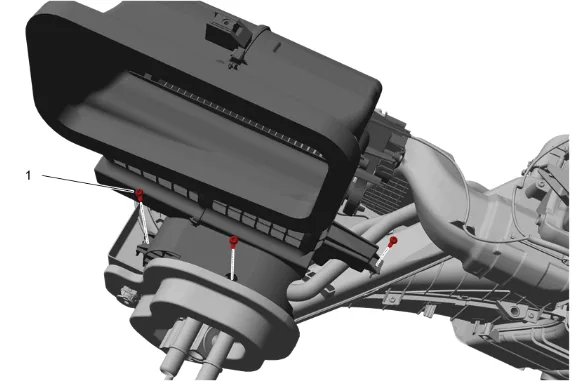

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 7
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 7
  1. Air Inlet Housing Bolt (1) » Remove [3x]

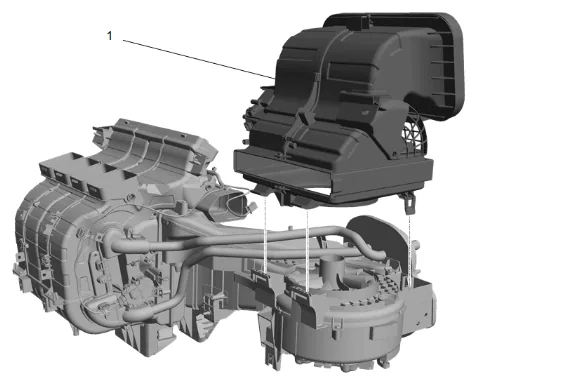

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 8
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 8
  1. Air Inlet Housing (1) » Remove
  2. Disconnect the electrical connector.

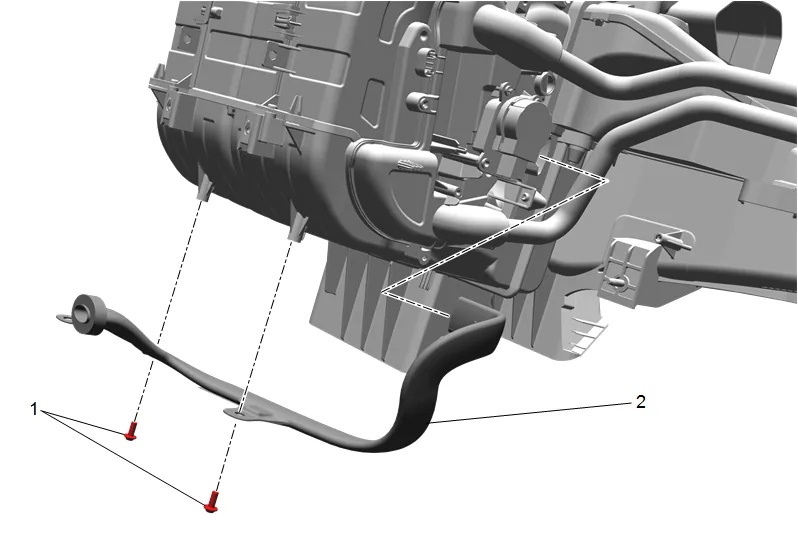

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 9
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 9
  1. { If equipped } Front Floor Console Auxiliary Cooling Duct Bolt (1) » Remove [2x]
  2. { If equipped } Front Floor Console Auxiliary Cooling Duct (2) » Remove

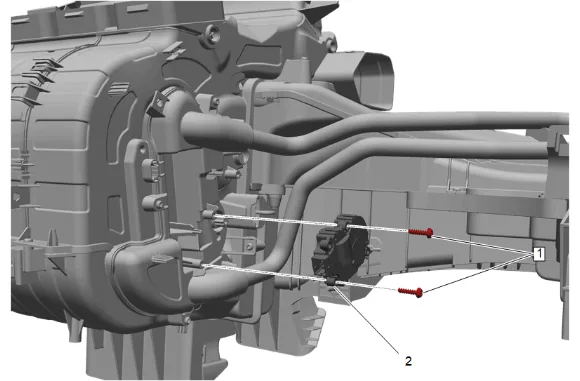

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 10
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 10
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [2x]
  2. { If equipped } Temperature Valve Actuator - Right Side (2) » Remove
  3. Disconnect the electrical connector.

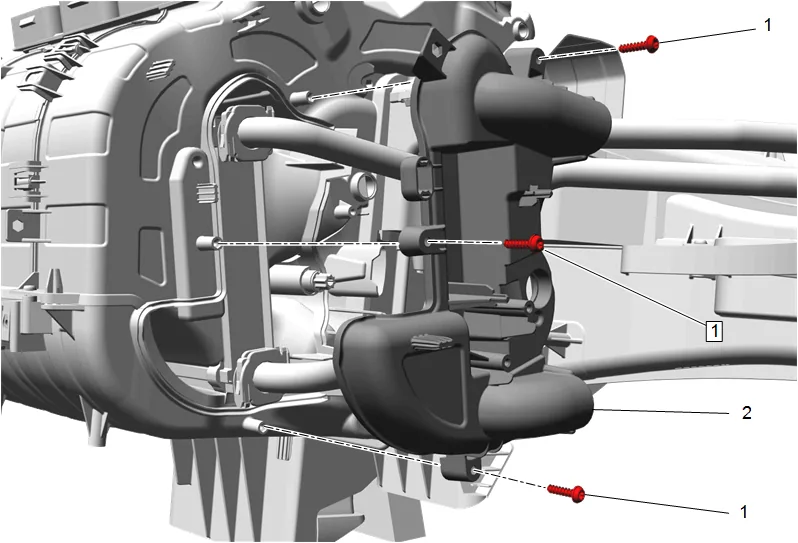

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 11
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 11
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [3x]
  2. Heater Cover (2) » Remove

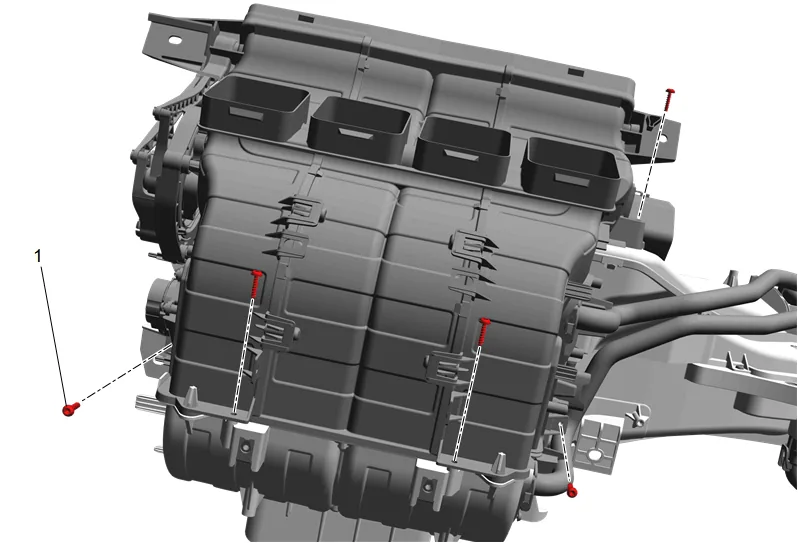

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 12
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 12
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [5x]

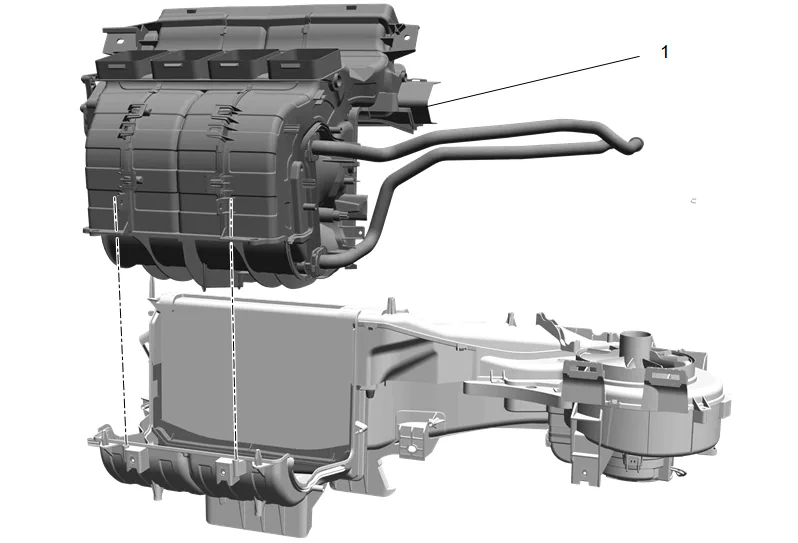

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 13
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 13
  1. Heater and Air Conditioning Evaporator Case (1) » Remove

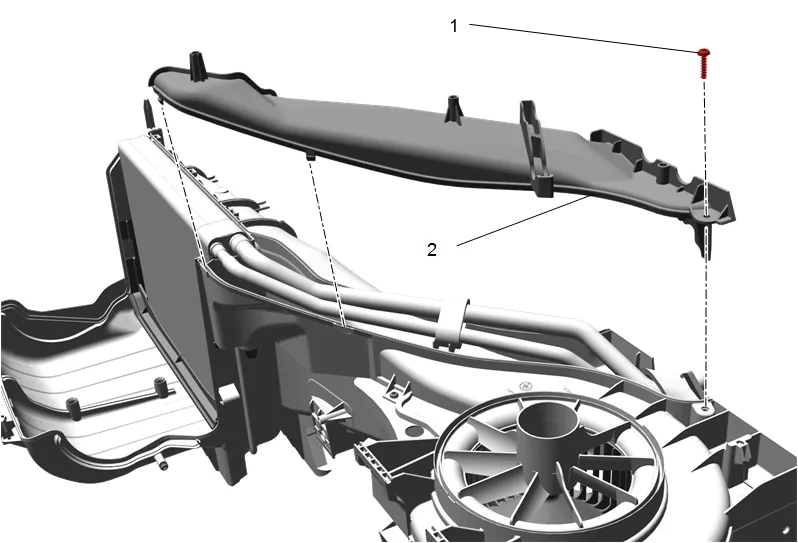

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 14
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 14
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove
  2. Heater And Air Conditioning Evaporator Module Cover (2) » Remove

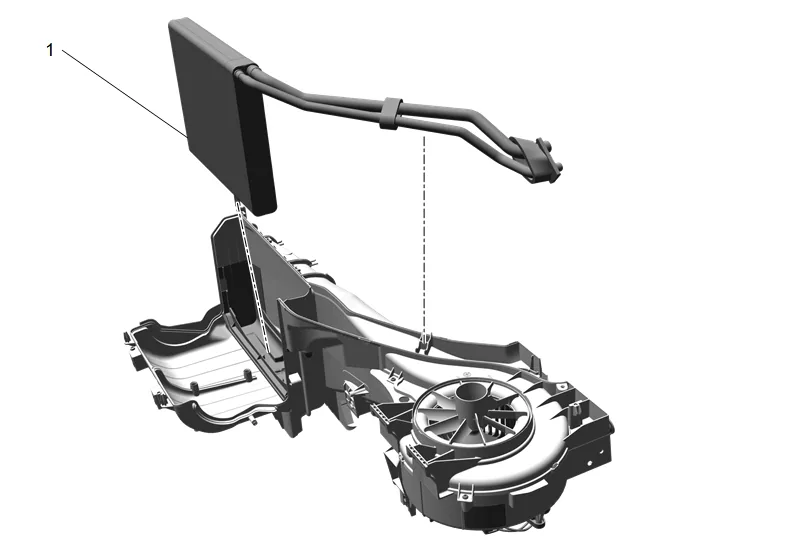

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 15
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 15
  1. Air Conditioning Evaporator (1) » Remove

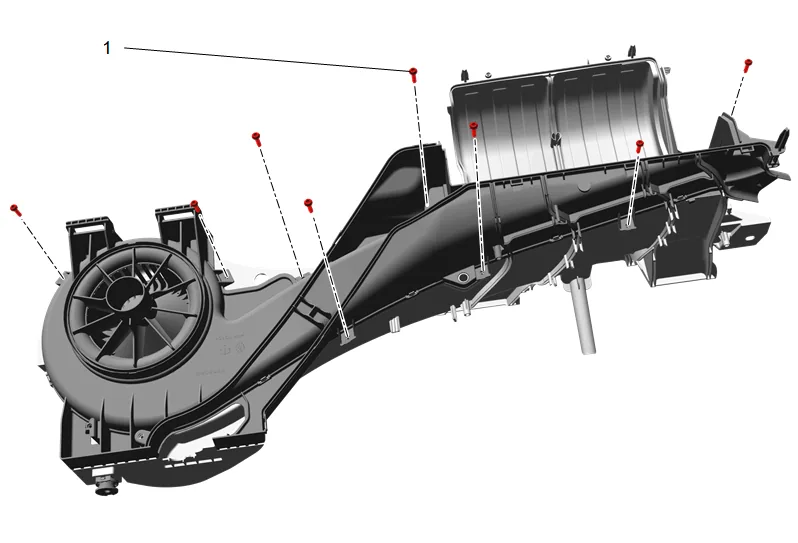

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 16
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 16
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [8x]

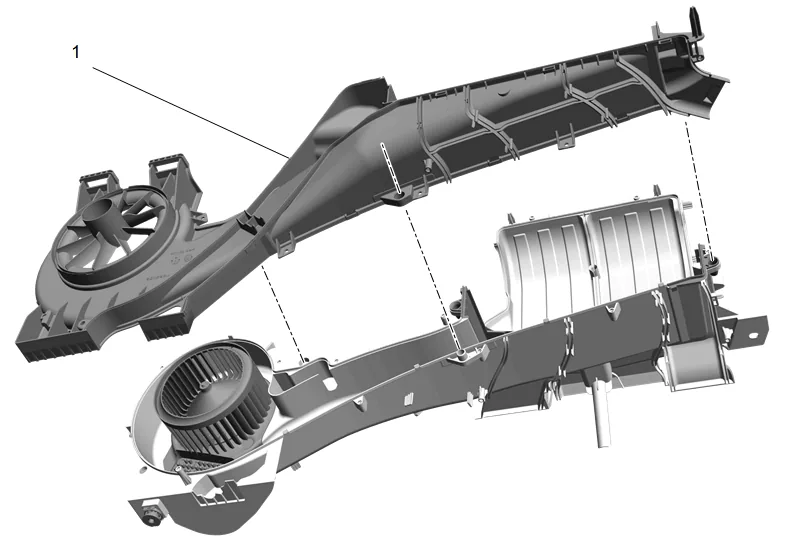

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 17
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 17
  1. Heater and Air Conditioning Evaporator Case - Upper (1) » Remove
  2. Inspect the upper heater and air conditioning evaporator case (1) and replace as needed.

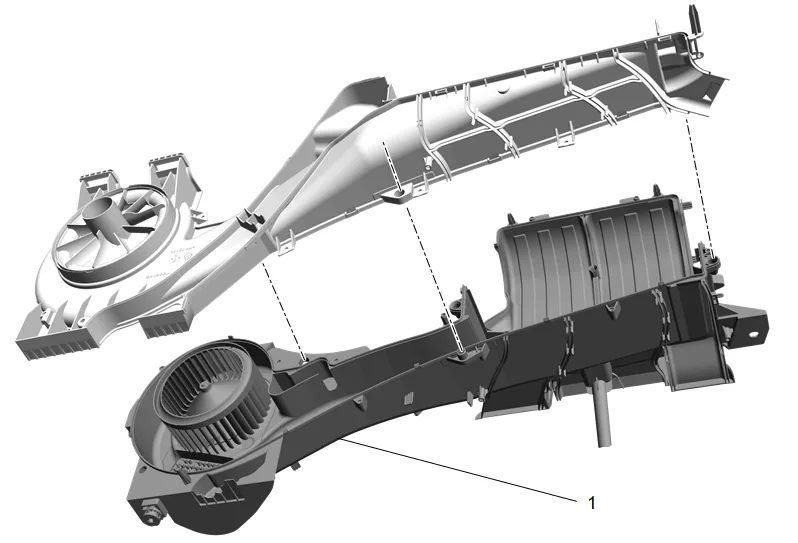

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 18
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 18
  1. Inspect the lower heater and air conditioning evaporator case (1) and replace as needed.

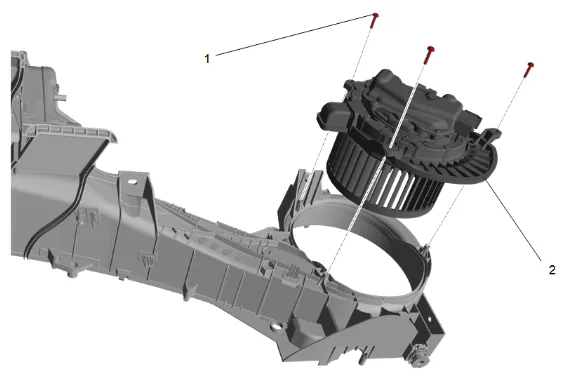

Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 19
Heater and Air Conditioning Evaporator Case Replacement - Upper — figure 19

  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [3x]

  2. Blower Motor (2) » Remove Installation Procedure

  3. Blower Motor (2) » Install

  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [3x] — Fastener Specifications

  2. Heater and Air Conditioning Evaporator Case - Upper (1) @ Heater and Air Conditioning Evaporator Case - Lower » Install

  3. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [8x] — Fastener Specifications

  4. Air Conditioning Evaporator (1) » Install

  5. Heater And Air Conditioning Evaporator Module Cover (2) » Install

  6. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten — Fastener Specifications

  7. Heater and Air Conditioning Evaporator Case (1) » Install

  8. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [5x] — Fastener Specifications

  9. Heater Cover (2) » Install

  10. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [3x] — Fastener Specifications

  11. { If equipped } Temperature Valve Actuator - Right Side » Install

  12. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  13. Connect the electrical connector.

  14. { If equipped } Front Floor Console Auxiliary Cooling Duct (2) » Install

  15. { If equipped } Front Floor Console Auxiliary Cooling Duct Bolt (1) » Install and tighten [2x] — Fastener Specifications

  16. Air Inlet Housing (1) » Install

  17. Air Inlet Housing Bolt (1) » Install and tighten [3x] — Fastener Specifications

  18. Connect the electrical connector.

  19. Heater And Air Conditioning Evaporator Module Cover (1) » Install

  1. Wiring Harness Retainer (3) » Install [4x]

  2. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) » Install and tighten [7x] — Fastener Specifications

  3. Air Conditioning Evaporator Case Drain Tube Seal (1) » Install

  4. Floor Front Air Outlet Duct - Right Side (2) » Install

  5. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  6. Heater And Air Conditioning Evaporator Tube Seal (2) » Install

  7. Air Conditioning Evaporator Tube Bracket (1) » Install

  8. Air Conditioning Evaporator Seal - Large (4) » Install NEW

  9. Air Conditioning Evaporator Seal - Small (3) » Install NEW

  10. Air Conditioning Evaporator Thermal Expansion Valve (2) » Install

  11. Air Conditioning Evaporator Thermal Expansion Valve Bolt (1) » Install and tighten [2x] — Fastener Specifications

  12. Heater and Air Conditioning Evaporator and Blower Module (1) » Install — Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
