Rear Suspension Adjust Link Replacement

Removal Procedure

1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

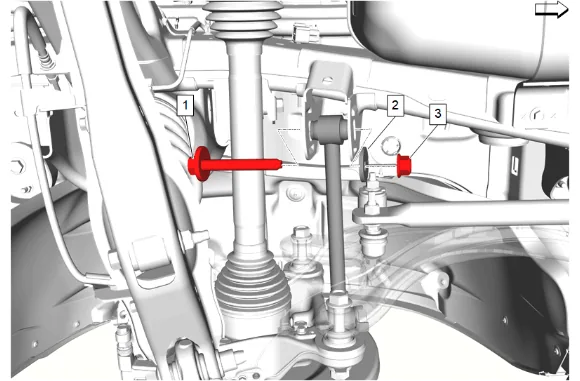

Rear Suspension Adjust Link Replacement — figure 1

2. Rear Suspension Adjust Link Bolt (1) » Remove
3. Rear Suspension Adjust Link Cam (2) » Remove
4. Rear Suspension Link Inner Nut (3) » Remove

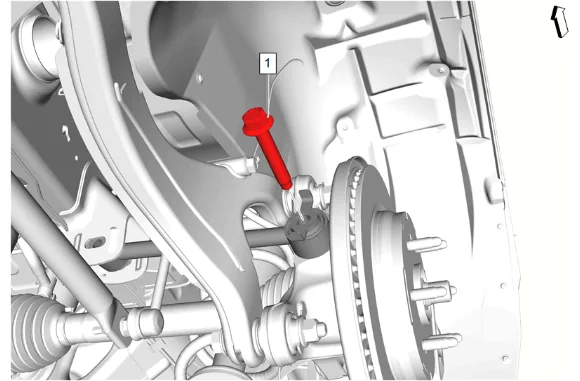

Rear Suspension Adjust Link Replacement — figure 2

5. Rear Suspension Link Outer Bolt (1) » Remove

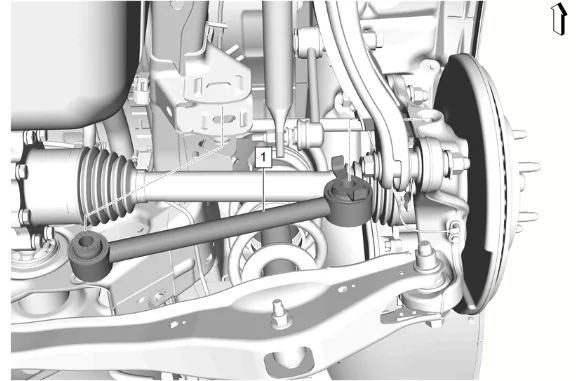

Rear Suspension Adjust Link Replacement — figure 3

6. Rear Suspension Adjust Link (1) » Remove Installation Procedure

7. Rear Suspension Adjust Link (1) » Install

Caution

Refer to Fastener Caution.

2. Rear Suspension Link Outer Bolt (1) » Install and tighten — Fastener Specifications

3. Rear Suspension Adjust Link Bolt (1) » Install

4. Rear Suspension Adjust Link Cam (2) » Install

Note

The final torque on the rear suspension link inner nut (3) is to be applied during the rear toe setting procedure.

5. Rear Suspension Link Inner Nut (3) » Install and hand tighten
6. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
7. Adjust the rear toe. Rear Toe Adjustment
