Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6)

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) Removal Procedure

Warning

Refer to SIR Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 1

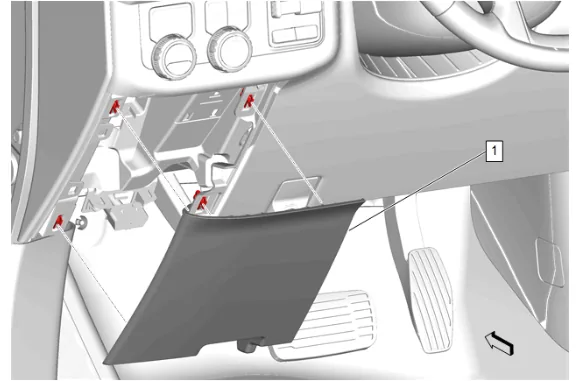

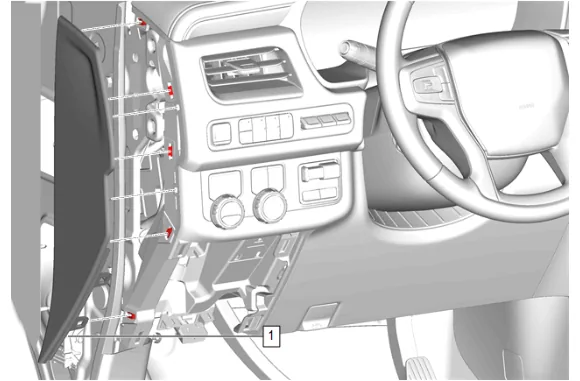

2. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.

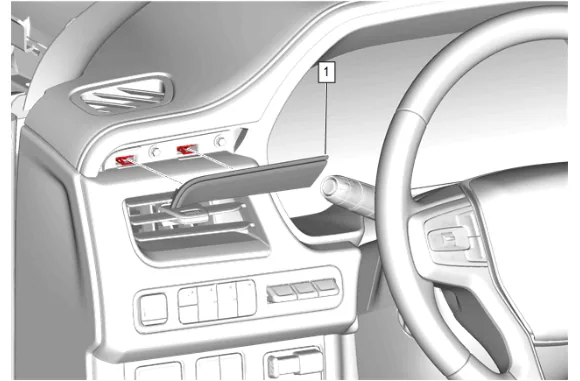

4. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 4

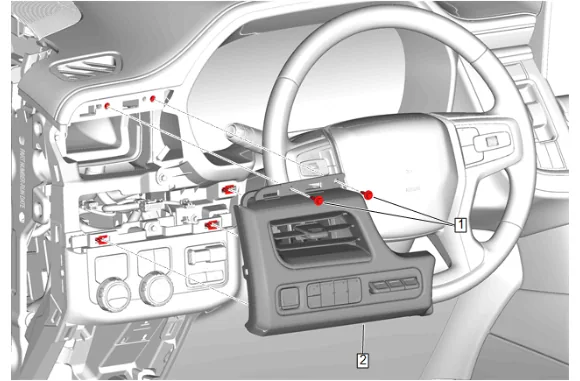

7. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
8. Instrument Panel Trim Pad (2) » Remove
9. Disconnect the electrical connectors.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 5

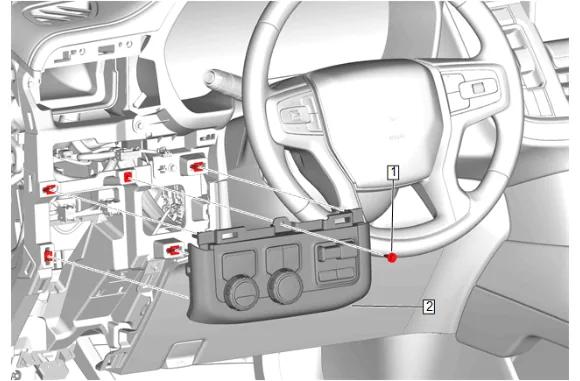

10. Instrument Panel Switch Trim Plate Bolt (1) » Remove
11. Instrument Panel Switch Trim Plate (2) » Remove
12. Disconnect the electrical connectors.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 6

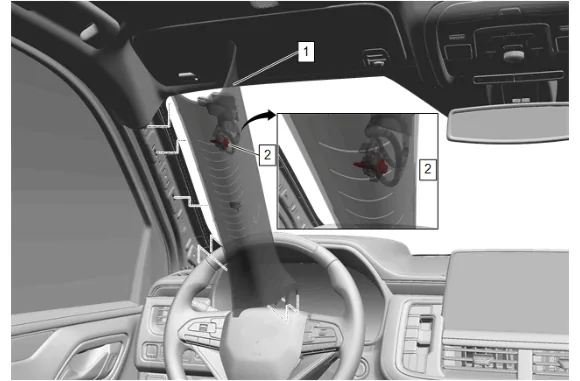

13. Pull down the windshield garnish molding (1) rearwards to release the tether from the A pillar.
14. Access the windshield garnish bolt (2) which is located on the backside of the windshield garnish molding (1) and secures the tether to the A pillar.
15. Windshield Garnish Molding Bolt (2) » Remove
16. Windshield Garnish Molding (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 7

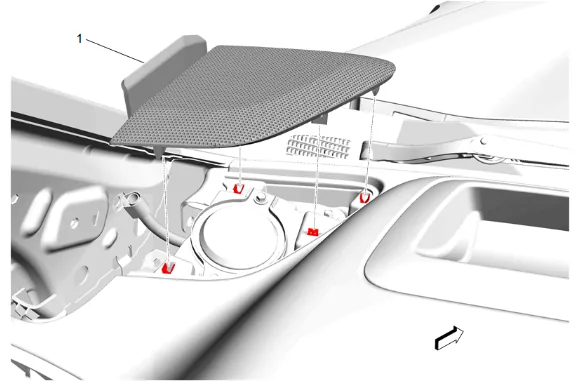

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Radio Front Speaker Grille (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 8

19. Radio Front Speaker Bolt (1) » Remove [2x]
20. Radio Front Speaker (2) » Remove
21. Disconnect the electrical connector.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 9

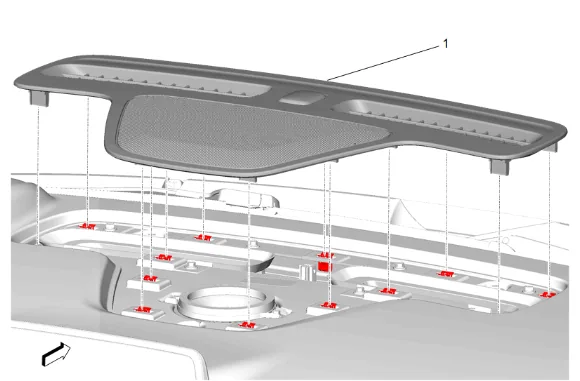

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Instrument Panel Extension (1) » Remove
24. Disconnect the electrical connector.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 10

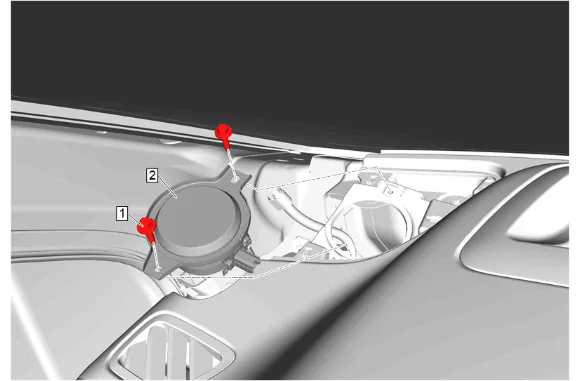

25. Radio Front Center Speaker Bolt (1) » Remove [2x]
26. Radio Front Center Speaker (2) » Remove
27. Disconnect the electrical connector.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 11

28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 12

30. Using a flat-bladed plastic trim tool, release the retaining clips.
31. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 13

32. Using a flat-bladed plastic trim tool, release the retaining clips.
33. Instrument Panel Center Trim Plate Applique (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 14

34. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
35. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

36. Instrument Panel Trim Pad (2) » Remove
37. Disconnect the electrical connector.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 15

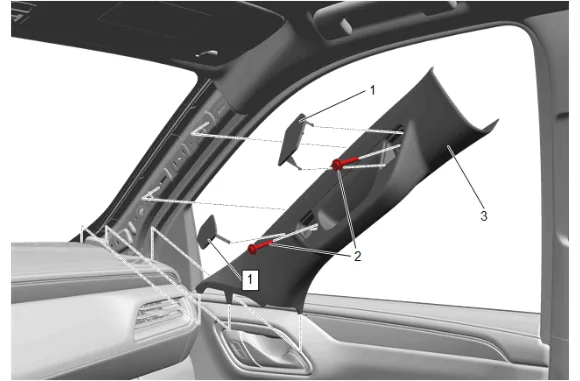

38. Windshield Pillar Assist Handle Cover (1) » Remove [2x]
39. Windshield Pillar Assist Handle Bolt (2) » Remove [2x]
40. Windshield Garnish Molding (3) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 16

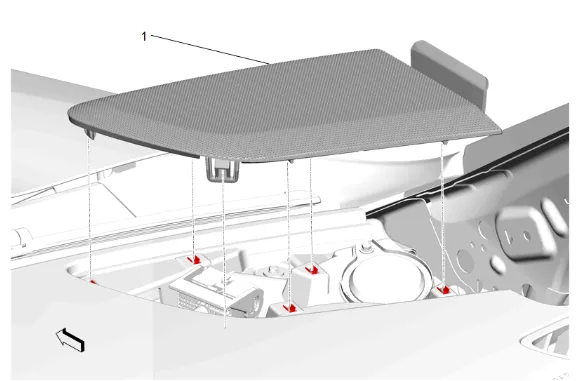

41. Using a flat-bladed plastic trim tool, release the retaining clips.
42. Radio Front Speaker Grille (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 17

43. Radio Front Speaker Bolt (1) » Remove [2x]
44. Radio Front Speaker (2) » Remove
45. Disconnect the electrical connector.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 18

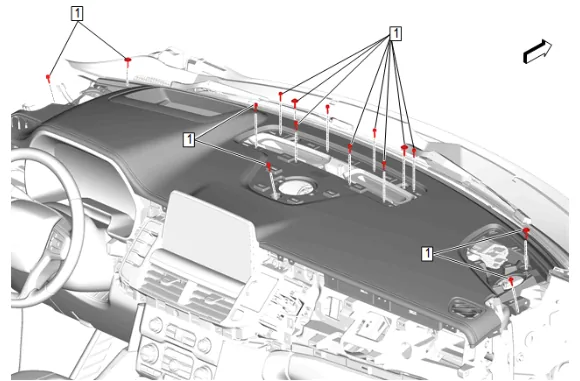

46. Instrument Panel Upper Trim Panel Bolt (1) » Remove [15x]
47. Disconnect the electrical connector.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 19

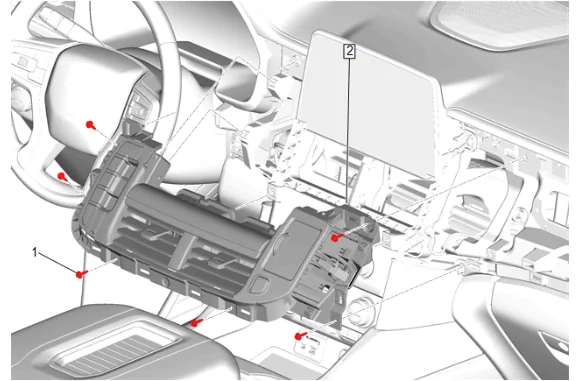

48. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
49. Instrument Panel Transmission Shift Opening Cover (2) » Remove
50. Disconnect the electrical connectors.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 20

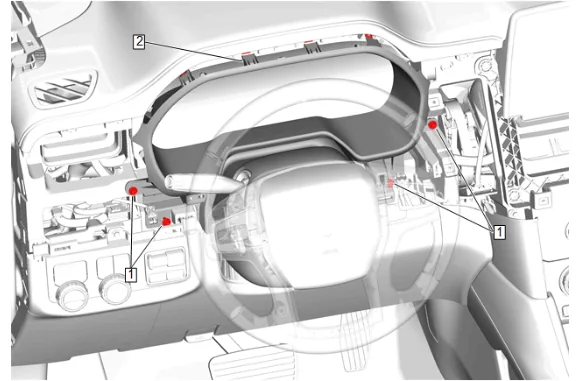

51. Instrument Panel Cluster Trim Plate Bolt (1) » Loosen [4x]
52. Using a flat-bladed plastic trim tool, release the retaining clips.
53. Instrument Panel Cluster Trim Plate (2) » Loosen

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 21

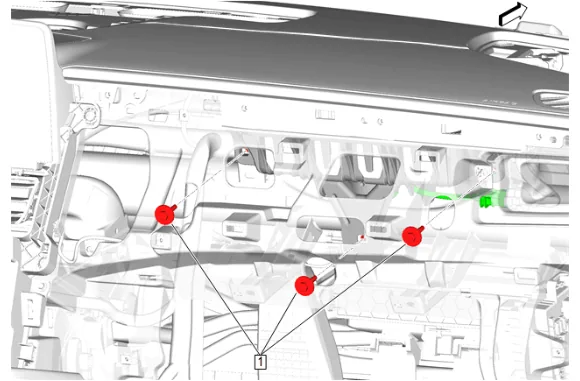

54. Instrument Panel Airbag Bolt (1) » Remove [3x]
55. Disconnect the electrical connector.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 22

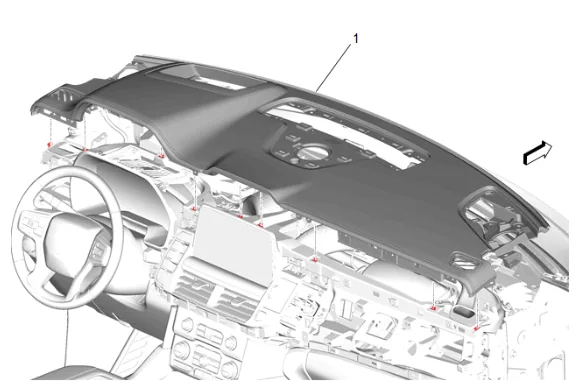

56. Instrument Panel Upper Trim Panel (1) » Remove
57. With the aid of an assistant remove the instrument panel upper trim panel (1) from the vehicle.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 23

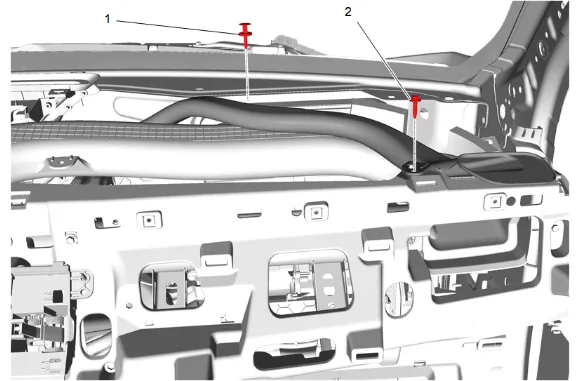

58. Side Window Defogger Outlet Duct Retainer (1) » Remove
59. Side Window Defogger Outlet Duct Bolt (2) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 24

60. Side Window Defogger Outlet Duct - Right Side (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 25

61. Instrument Panel Outer Air Outlet Bolt (1) » Remove [2x]
62. Remove the wiring harness retainers form the right instrument panel outer air outlet duct.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 26

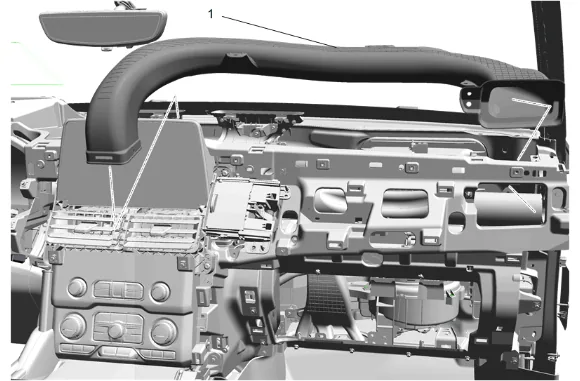

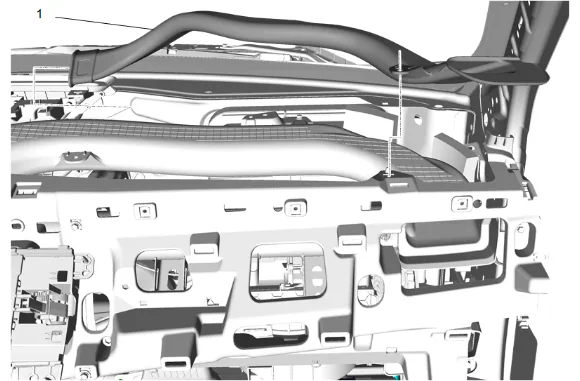

63. Instrument Panel Outer Air Outlet Duct - Right Side (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 27

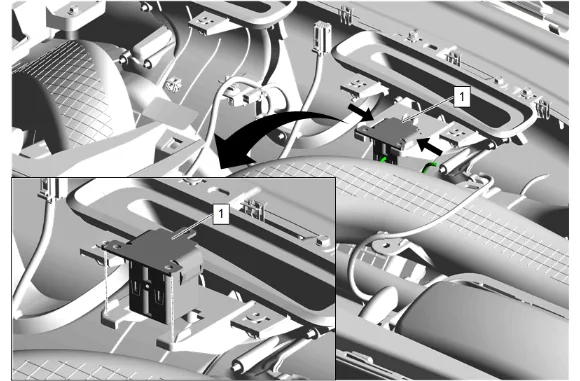

64. Release the retaining tabs.
65. Disconnect the electrical connector.
66. Auxiliary Wireless Communication Interface Antenna (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 28

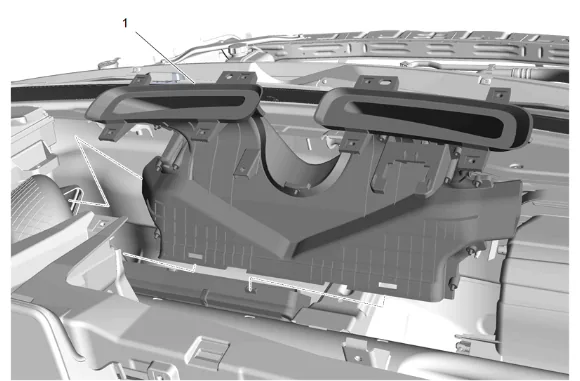

67. Pull the windshield defroster outlet duct (1) towards the rear of the car while moving up and to the right to disconnect the left side window defogger outlet duct, to remove the duct.

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 29

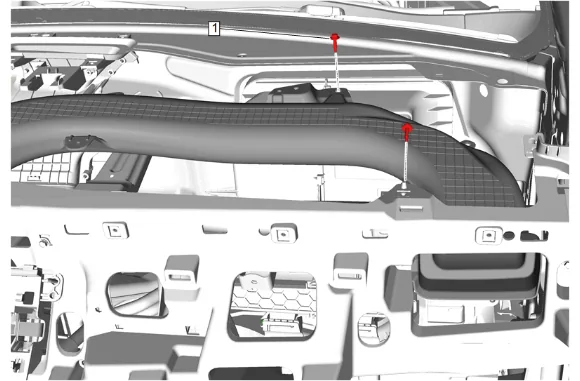

68. Side Window Defogger Outlet Duct Bolt (1) » Remove
69. Side Window Defogger Outlet Duct Retainer (2) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 30

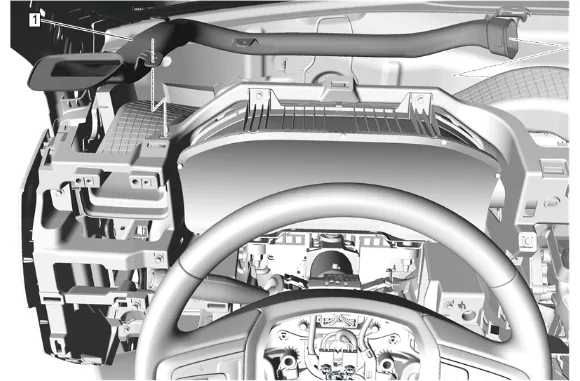

70. Side Window Defogger Outlet Duct - Left Side (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 31

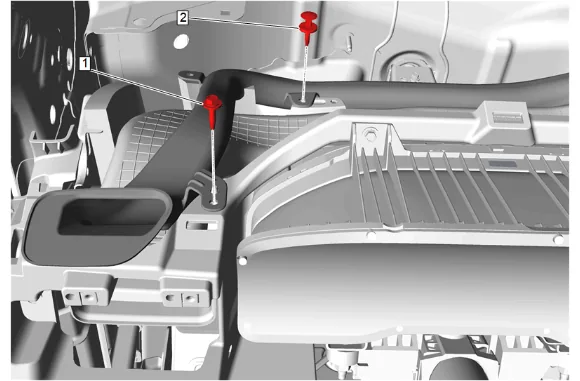

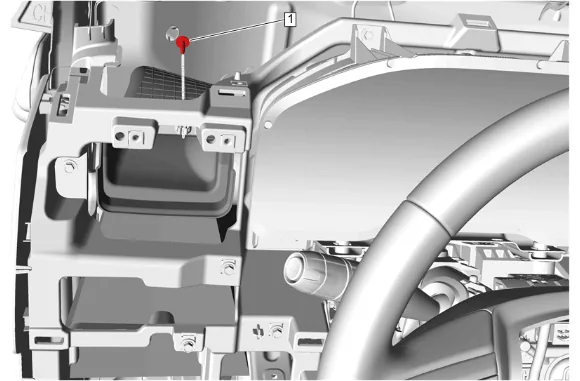

71. Instrument Panel Outer Air Outlet Duct Bolt (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (without UV6) — figure 32

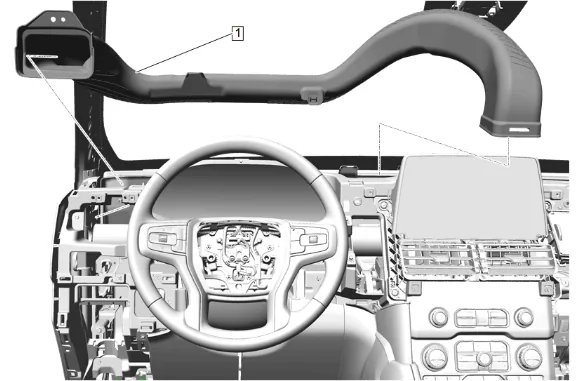

72. Instrument Panel Outer Air Outlet Duct - Left Side (1) » Remove Installation Procedure

73. Instrument Panel Outer Air Outlet Duct - Left Side (1) » Install

Caution

Refer to Fastener Caution.

2. Instrument Panel Outer Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

3. Side Window Defogger Outlet Duct - Left Side (1) » Install

4. Side Window Defogger Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

5. Side Window Defogger Outlet Duct Retainer (2) » Install

6. Install the windshield defroster outlet (1) duct while connecting the left side window defogger outlet duct.

7. Connect the electrical connector.

8. Auxiliary Wireless Communication Interface Antenna (1) » Install

9. Secure the retaining tabs.

10. Instrument Panel Outer Air Outlet Duct - Right Side (1) » Install

11. Instrument Panel Outer Air Outlet Bolt (1) » Install and tighten [2x] — Fastener Specifications

12. Install the wiring harness retainers onto the right instrument panel outer air outlet duct.

13. Side Window Defogger Outlet Duct - Right Side (1) » Install

14. Side Window Defogger Outlet Duct Bolt (2) » Install and tighten — Fastener Specifications

15. Side Window Defogger Outlet Duct Retainer (1) » Install

16. With the aid of an assistant install the instrument panel upper trim panel (1) into the vehicle.

17. Instrument Panel Upper Trim Panel (1) » Install

18. Connect the electrical connector.

19. Connect the electrical connector.

20. Instrument Panel Airbag Bolt (1) » Install and tighten [3x] — Fastener Specifications

21. Instrument Panel Cluster Trim Plate (2) » Install

22. Instrument Panel Cluster Trim Plate Bolt (1) » Tighten [4x] — Fastener Specifications

23. Connect the electrical connectors.

24. Instrument Panel Transmission Shift Opening Cover (2) » Install

25. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

26. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [15x] — Fastener Specifications

27. Connect the electrical connector.

28. Radio Front Speaker (2) » Install

29. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

30. Radio Front Speaker Grille (1) » Install

31. Windshield Garnish Molding (3) » Install

32. Windshield Pillar Assist Handle Bolt (2) » Install and tighten [2x] — Fastener Specifications

33. Windshield Pillar Assist Handle Cover (1) » Install [2x]

34. Connect the electrical connector.

35. Instrument Panel Trim Pad (2) » Install

36. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

37. Instrument Panel Center Trim Plate Applique (1) » Install

38. Instrument Panel Trim Plate Applique (1) » Install

39. Instrument Panel Fuse Block Access Hole Cover (1) » Install

40. Connect the electrical connector.

41. Radio Front Center Speaker (2) » Install

42. Radio Front Center Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

43. Connect the electrical connector.

44. Instrument Panel Extension (1) » Install

45. Connect the electrical connector.

46. Radio Front Speaker (2) » Install

47. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

48. Radio Front Speaker Grille (1) » Install

49. Windshield Garnish Molding Bolt (2) » Install and tighten — Fastener Specifications

50. Align the retaining clips with the slots in the A pillar and press the windshield garnish molding  (1) into place.

51. Windshield Garnish Molding (1) » Install

52. Connect the electrical connectors.

53. Instrument Panel Switch Trim Plate (2) » Install

54. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

55. Connect the electrical connectors.

56. Instrument Panel Trim Pad (2) » Install

57. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

58. Instrument Panel Trim Plate Applique (1) » Install

59. Instrument Panel Fuse Block Access Hole Cover (1) » Install

60. Instrument Panel Lower Trim Panel Outer Filler (1) » Install

61. Enable the SIR System. SIR Disabling and Enabling
