Starter Solenoid Cable Replacement (L84, L87)

Removal Procedure

Warning

Unless directed otherwise, the ignition must be OFF with the key removed, and all electrical loads must be OFF before servicing any electrical component. Disconnect the negative battery cable to prevent an electrical spark should a tool or equipment come in contact with an exposed electrical terminal. Failure to follow these precautions may result in personal injury and/or damage to the vehicle or its components. For Vehicles equipped with OnStar® (UE1) with Back Up Battery:The Back Up Battery is a redundant power supply to allow limited OnStar® functionality in the event of a main vehicle battery power disruption to the VCIM (OnStar®module). Do not disconnect the main vehicle battery or remove the OnStar® fuse with the ignition key in any position other than OFF. Retained accessory power should be allowed to time out or be disabled (simply opening the driver door should disable retained accessory power) before disconnecting power. Disconnecting power to the OnStar® module in any way while the ignition is On or with retained accessory power activated may cause activation of the OnStar® Back-Up Battery system and will discharge and permanently damage the back-up battery. Once the Back-Up Battery is activated it will stay on until it has completely discharged. The back-up battery is not rechargeable and once activated the back-up battery must be replaced.

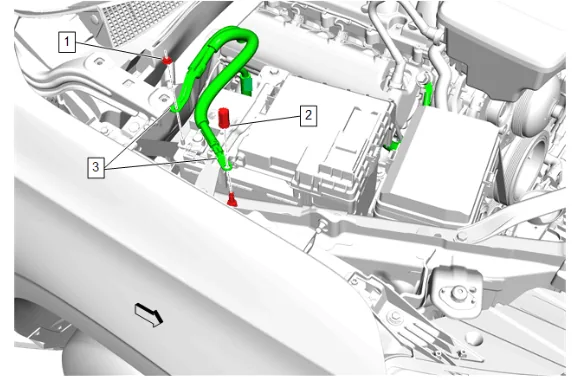

Starter Solenoid Cable Replacement (L84, L87) — figure 1

1. Battery Negative Cable Nut (1) @ Battery Monitor Module » Remove
2. Battery Negative Cable Ground Nut (2) » Remove
3. Starter Solenoid Cable (3) » Reposition away [2x]

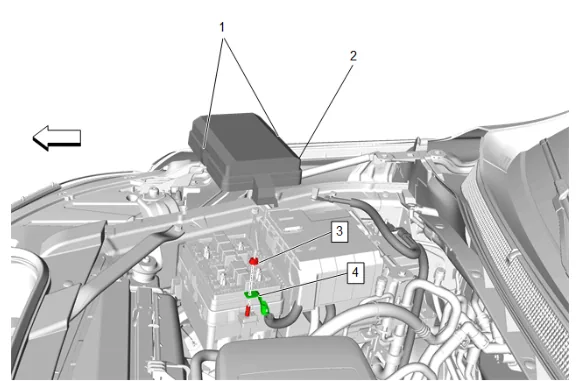

Starter Solenoid Cable Replacement (L84, L87) — figure 2

4. Retaining Tab (1) » Disengage [2x]
5. Engine Wiring Harness Junction Block Cover (2) » Remove
6. Battery Positive Cable Nut (3) » Remove
7. Starter Solenoid Cable (4) » Remove

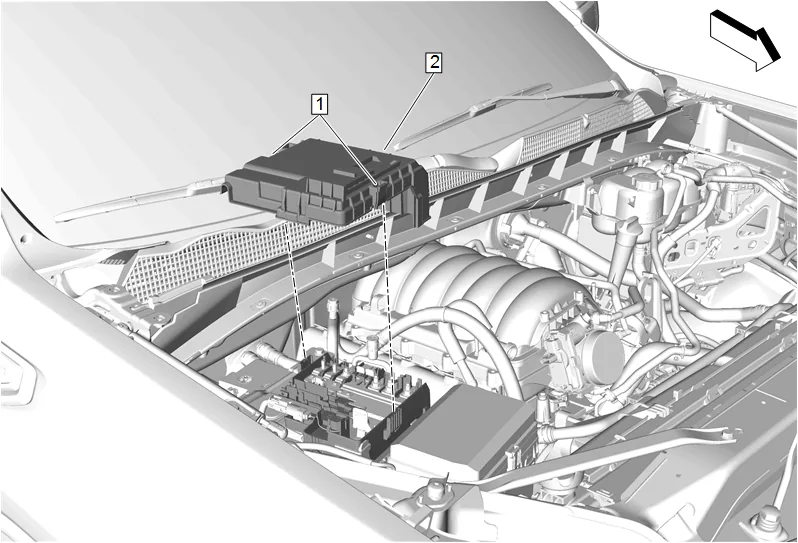

Starter Solenoid Cable Replacement (L84, L87) — figure 3

8. Retaining Tab (1) » Disengage [2x]
9. Front Compartment Fuse Block Cover (2) » Remove

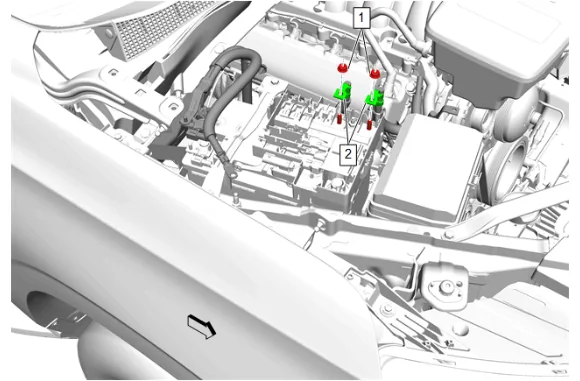

Starter Solenoid Cable Replacement (L84, L87) — figure 4

10. Battery Positive Cable Nut (1) » Remove [2x]
11. Starter Solenoid Cable (2) » Remove [2x]

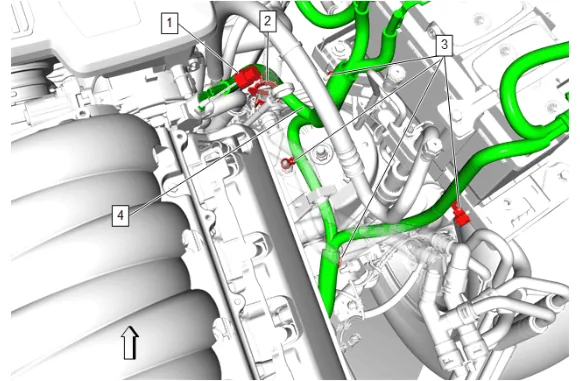

Starter Solenoid Cable Replacement (L84, L87) — figure 5

12. Battery Positive Cable Nut (1) @ Generator » Remove
13. Retainer Clip (2) » Disengage
14. Retainer (3) » Disengage [4x]
15. Starter Solenoid Cable (4) » Remove
16. Raise and support the vehicle. Lifting and Jacking the Vehicle

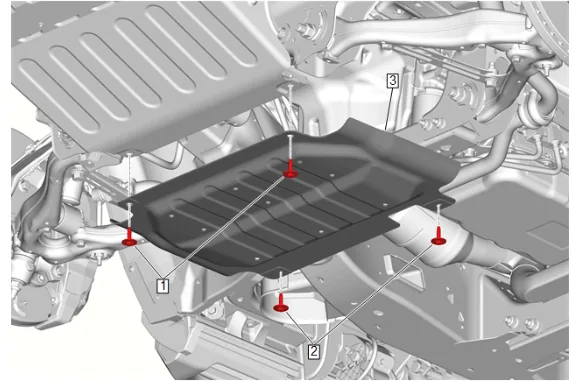

Starter Solenoid Cable Replacement (L84, L87) — figure 6

17. {with RC1} Remove the underbody skid shield: 17.1. Underbody Skid Shield Bolt (1) » Remove [2x] 17.2. Underbody Splash Shield Bolt (2) » Remove [2x] 17.3. Underbody Skid Shield (3) » Remove

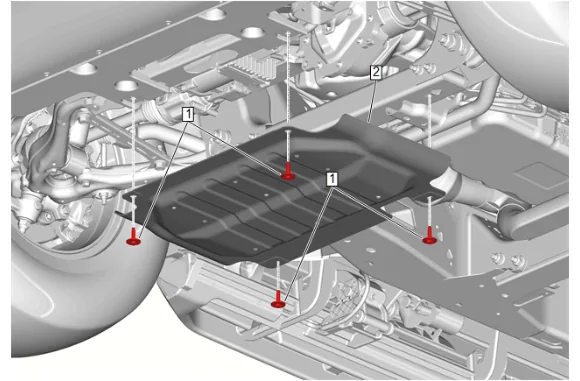

Starter Solenoid Cable Replacement (L84, L87) — figure 7

18. {without RC1} Remove the underbody skid shield: 18.1. Underbody Skid Shield Bolt (1) » Remove [4x] 18.2. Underbody Skid Shield (2) » Remove

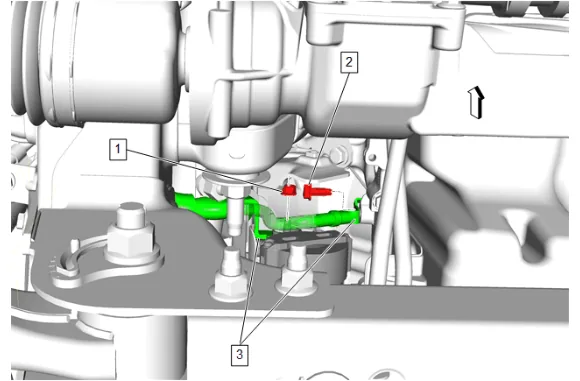

Starter Solenoid Cable Replacement (L84, L87) — figure 8

19. Battery Positive Cable Nut (1) @ Starter Solenoid » Remove
20. Battery Negative Cable Ground Bolt (2) » Remove
21. Starter Solenoid Cable (3) » Remove [2x]
22. Lower the vehicle.

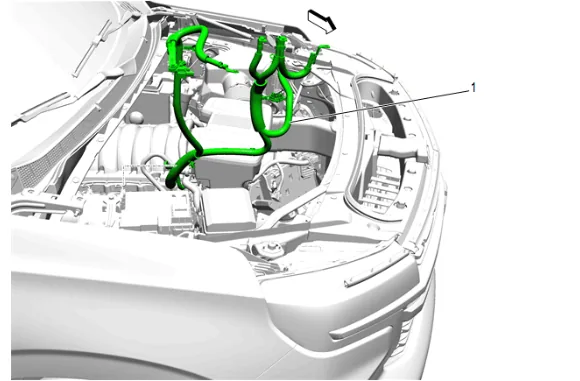

Starter Solenoid Cable Replacement (L84, L87) — figure 9

23. Starter Solenoid Cable (1) » Remove Installation Procedure

24. Starter Solenoid Cable (1) » Install

25. Raise and support the vehicle. Lifting and Jacking the Vehicle

26. Starter Solenoid Cable (3) » Install [2x]

Caution

Refer to Fastener Caution

4. Battery Negative Cable Ground Bolt (2) » Install and tighten — Fastener Specifications

5. Battery Positive Cable Nut (1) @ Starter Solenoid » Install and tighten — Fastener Specifications

6. {with RC1} Install the underbody skid shield: 6.1. Underbody Skid Shield (3) » Install 6.2. Underbody Splash Shield Bolt (2) » Install and tighten [2x] — Fastener Specifications 6.3. Underbody Skid Shield Bolt (1) » Install and tighten [2x] — Fastener Specifications

7. {without RC1} Install the underbody skid shield: 7.1. Underbody Skid Shield (2) » Install 7.2. Underbody Skid Shield Bolt (1) » Install and tighten [4x] — Fastener Specifications

8. Lower the vehicle.

9. Starter Solenoid Cable (4) » Install

10. Battery Positive Cable Nut (1) @ Generator » Install and tighten — Fastener Specifications

11. Retainer Clip (2) » Engage

12. Retainer (3) » Engage [4x]

13. Starter Solenoid Cable (2) » Install [2x]

14. Battery Positive Cable Nut (1) » Install and tighten [2x] — Fastener Specifications

15. Front Compartment Fuse Block Cover (2) » Install

16. Retaining Tab (1) » Engage [2x]

17. Starter Solenoid Cable (4) » Install

18. Battery Positive Cable Nut (3) » Install and tighten — Fastener Specifications

19. Engine Wiring Harness Junction Block Cover (2) » Install

20. Retaining Tab (1) » Engage [2x]

21. Starter Solenoid Cable (3) » Install [2x]

22. Battery Negative Cable Ground Nut (2) » Install and tighten — Fastener Specifications

23. Battery Negative Cable Nut (1) @ Battery Monitor Module » Install and tighten — Fastener Specifications
