Front Floor Console Armrest Replacement (D07)

Removal Procedure

Front Floor Console Armrest Replacement (D07) — figure 1

1. Front Floor Console Rear Cup Holder Liner (1) » Remove
2. Front Floor Console Cup Holder Bolt (2) » Remove
3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Rear Cup Holder (3) » Remove

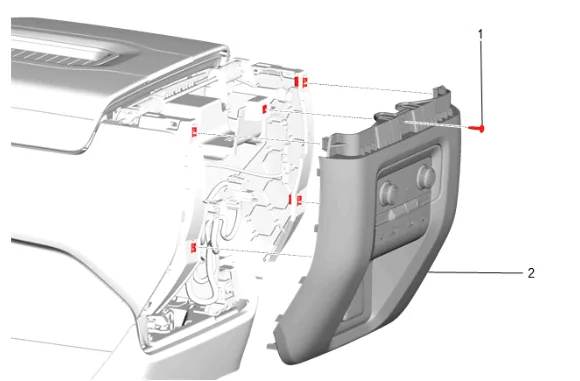

Front Floor Console Armrest Replacement (D07) — figure 2

5. Front Floor Console Rear Cover Bolt (1) » Remove
6. Using a flat-bladed plastic trim tool, release the retaining clips.
7. Front Floor Console Rear Trim Panel (2) » Remove
8. Disconnect the electrical connectors.

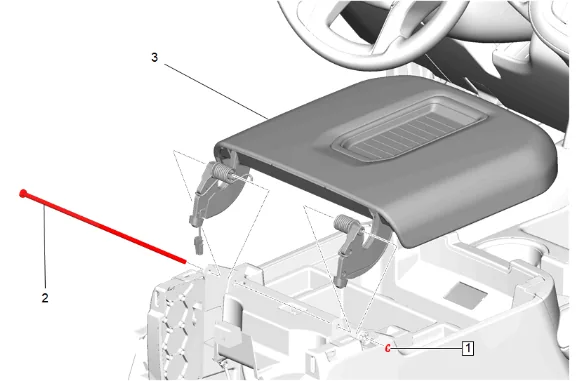

Front Floor Console Armrest Replacement (D07) — figure 3

Note

Use a suitable tool.

9. Front Floor Console Armrest Hinge Clip (1) » Remove

10. Front Floor Console Armrest Pivot Pin (2) » Remove

11. Disconnect the electrical connector.

12. Front Floor Console Armrest (3) » Remove

13. Transfer components as necessary. Installation Procedure

14. Front Floor Console Armrest (3) » Install

15. Connect the electrical connector.

16. Front Floor Console Armrest Pivot Pin (2) » Install

17. Front Floor Console Armrest Hinge Clip (1) » Install

18. Connect the electrical connectors.

19. Front Floor Console Rear Trim Panel (2) » Install

Caution

Refer to Fastener Caution.

7. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

8. Front Floor Console Rear Cup Holder (3) » Install

9. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

10. Front Floor Console Rear Cup Holder Liner (1) » Install
