Steering Linkage Outer Tie Rod Replacement

Special Tools CH-43631 Ball Joint Separator Equivalent regional tools: Special Tools Removal Procedure

1. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
2. Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.

Steering Linkage Outer Tie Rod Replacement — figure 1

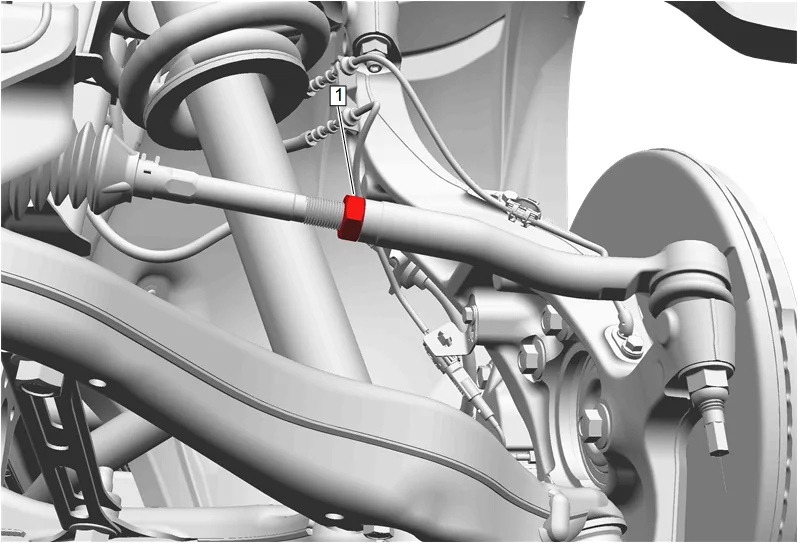

3. Steering Linkage Inner Tie Rod Nut (1) » Loosen

Steering Linkage Outer Tie Rod Replacement — figure 2

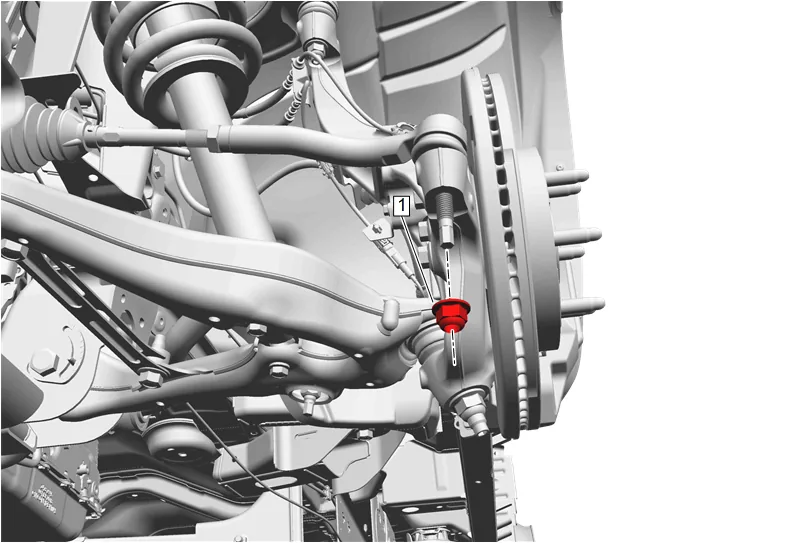

4. Steering Linkage Outer Tie Rod Nut (1) » Remove

Steering Linkage Outer Tie Rod Replacement — figure 3

Caution

Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

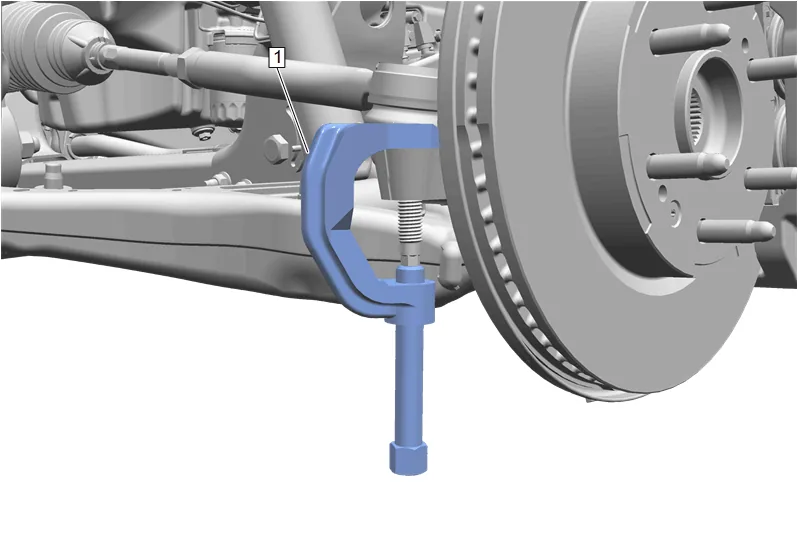

5. Using CH-43631 Ball Joint Separator (1), remove the steering linkage outer tie rod from the steering knuckle.

Steering Linkage Outer Tie Rod Replacement — figure 4

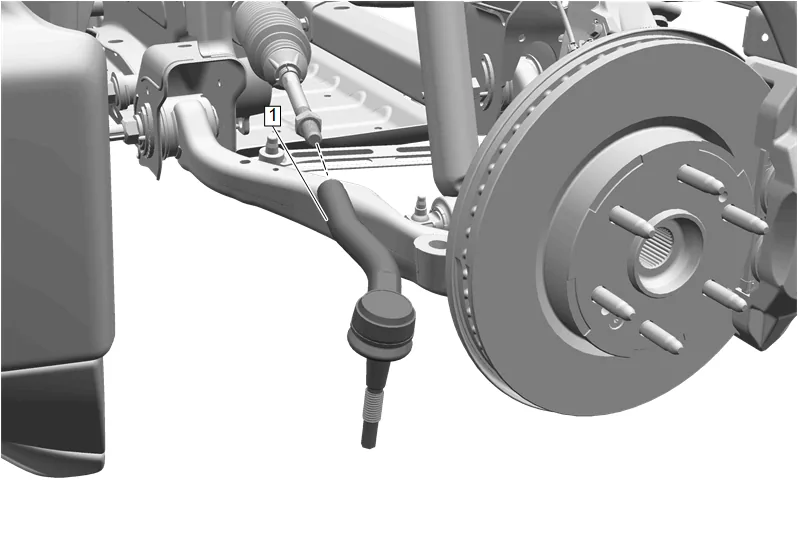

6. Steering Linkage Outer Tie Rod (1) » Remove Installation Procedure

Caution

Ensure the Outer Tie Rod Boot is not twisted or deformed during assembly. If the boot is twisted or deformed, damage to the boot will occur.

1. If reusing the steering linkage outer tie rod (1), add a small amount of grease on the lip of the rubber boot seal to prevent twisting or deforming of the boot. Do NOT apply grease to the ball joint stud. Adhesives, Fluids, Lubricants, and Sealers
2. Steering Linkage Outer Tie Rod (1) » Install

Caution

Fastener Caution.

3. Steering Linkage Outer Tie Rod Nut (1) » Install and tighten — Fastener Specifications

4. Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.

5. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

6. Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
