Rear Seat Hinge Finish Cover Replacement - Outboard

Removal Procedure

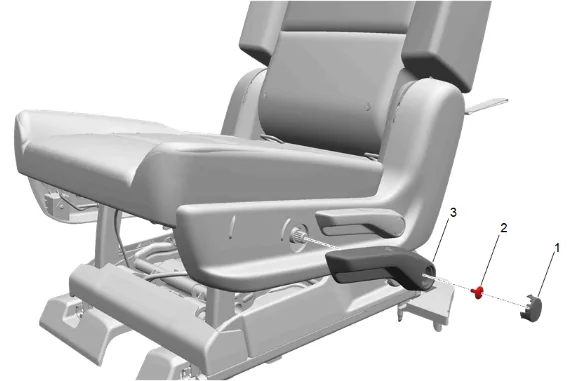

Rear Seat Hinge Finish Cover Replacement - Outboard — figure 1

1. Rear Seat Recliner Handle Bolt Cap (1) » Remove
2. Rear Seat Riser Bolt (2) » Remove
3. Rear Seat Adjuster Handle (3) » Remove

Rear Seat Hinge Finish Cover Replacement - Outboard — figure 2

4. Rear Seat Recliner Handle Bolt Cap (1) » Remove
5. Rear Seat Riser Bolt (2) » Remove
6. Rear Seat Recliner Handle (3) » Remove

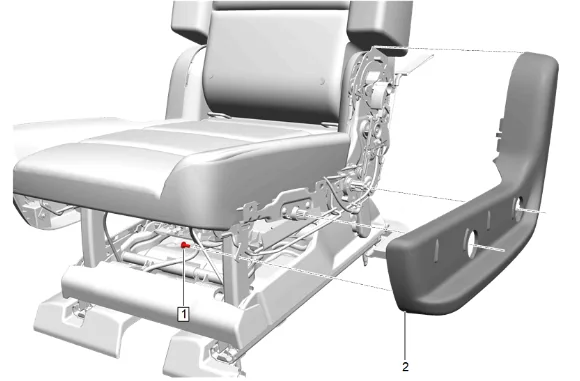

Rear Seat Hinge Finish Cover Replacement - Outboard — figure 3

7. Front Seat Bolt (1) » Remove
8. Using a suitable plastic trim tool, release the retaining tabs.
9. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Remove

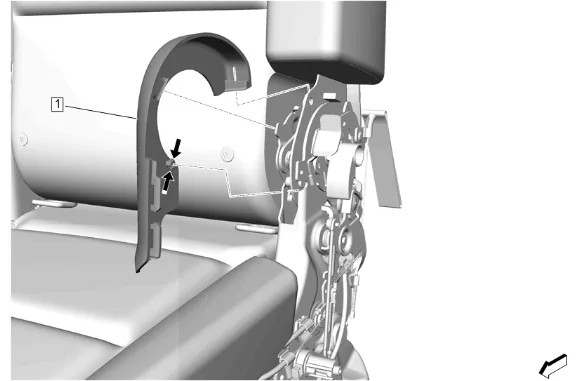

Rear Seat Hinge Finish Cover Replacement - Outboard — figure 4

10. Depress the retaining tab while pulling the rear seat hinge finish cover (1) inward then upward to release from the rear seat hinge.

11. Rear Seat Hinge Finish Cover - Outboard (1) » Remove Installation Procedure

12. Rear Seat Hinge Finish Cover - Outboard (1) » Install

13. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Install

Caution

Refer to Fastener Caution.

3. Front Seat Bolt (1) » Install and tighten — Fastener Specifications

4. Rear Seat Recliner Handle (3) » Install

5. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

6. Rear Seat Recliner Handle Bolt Cap (1) » Install

7. Rear Seat Adjuster Handle (3) » Install

8. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

9. Rear Seat Recliner Handle Bolt Cap (1) » Install
