Tahoe / Yukon Service Manual

Mobile Telephone Microphone Replacement - Roof Console

Removal Procedure

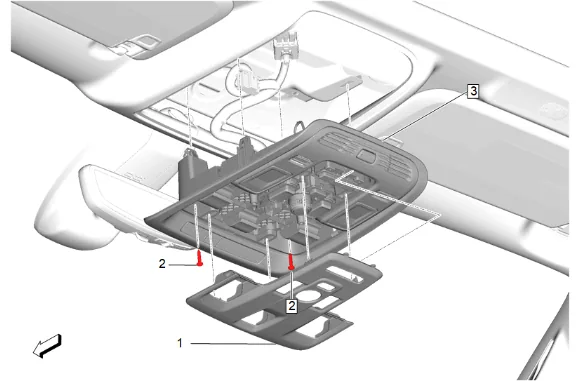

Mobile Telephone Microphone Replacement - Roof Console — figure 1
Mobile Telephone Microphone Replacement - Roof Console — figure 1
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Roof Console Opening Trim Plate (1) » Remove
  3. Roof Console Bolt (2) » Remove [2x]
  4. Roof Console (3) » Remove
  5. Disconnect the electrical connectors.

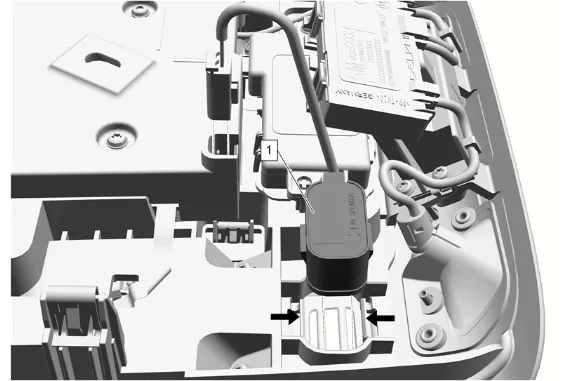

Mobile Telephone Microphone Replacement - Roof Console — figure 2
Mobile Telephone Microphone Replacement - Roof Console — figure 2

  1. Disconnect the electrical connector.

  2. Release the retaining tabs.

  3. Mobile Telephone Microphone (1) » Remove Installation Procedure

  4. Mobile Telephone Microphone (1) » Install

  5. Secure the retaining tabs.

  6. Connect the electrical connector.

  7. Connect the electrical connectors.

  8. Roof Console (3) » Install

  1. Roof Console Bolt (2) » Install and tighten [2x] — Fastener Specifications
  2. Roof Console Opening Trim Plate (1) » Install
