Battery Positive and Negative Cable Strap Replacement

Removal Procedure

1. Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation

Battery Positive and Negative Cable Strap Replacement — figure 1

Note

Left side shown, right side similar.

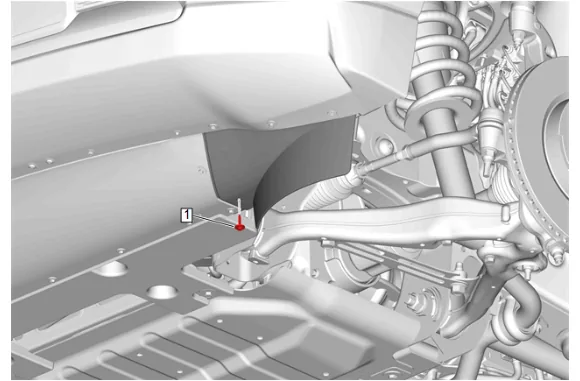

2. { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Remove

Battery Positive and Negative Cable Strap Replacement — figure 2

Note

Left side shown, right side similar. Quantity of fasteners may vary based on option content.

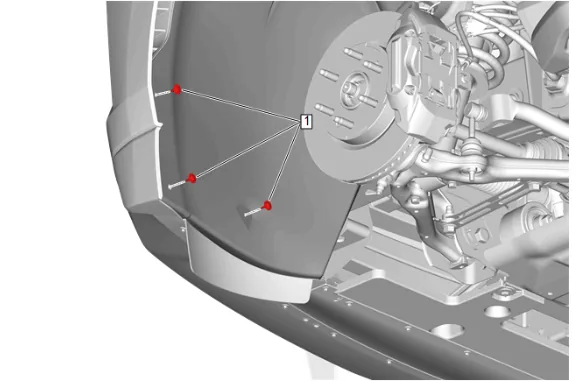

3. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

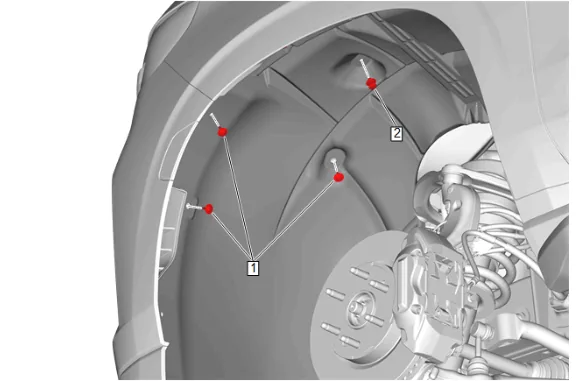

Battery Positive and Negative Cable Strap Replacement — figure 3

4. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]
5. Front Wheelhouse Liner Retainer - Right Side (2) » Remove

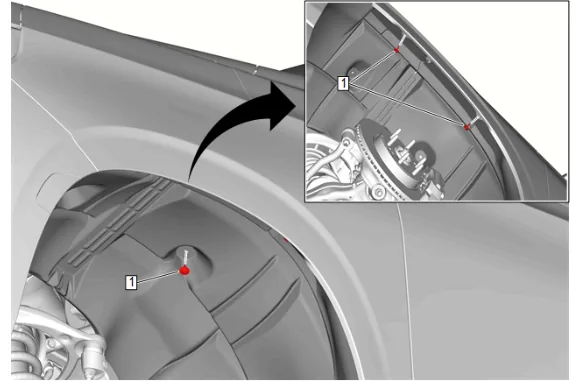

Battery Positive and Negative Cable Strap Replacement — figure 4

6. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

Battery Positive and Negative Cable Strap Replacement — figure 5

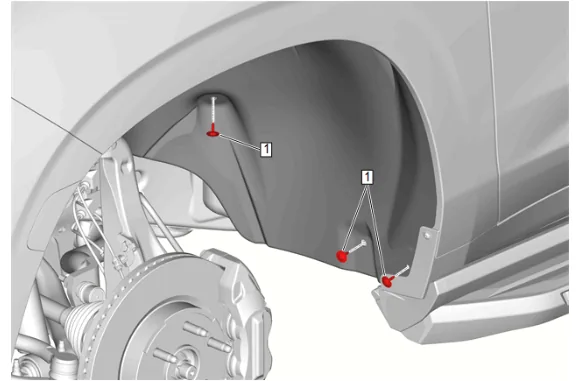

7. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

Battery Positive and Negative Cable Strap Replacement — figure 6

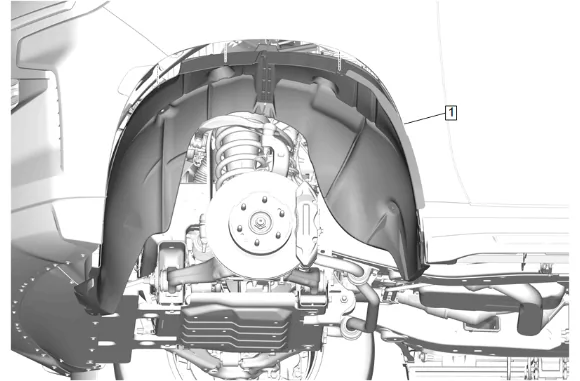

8. Front Wheelhouse Liner - Right Side (1) » Remove

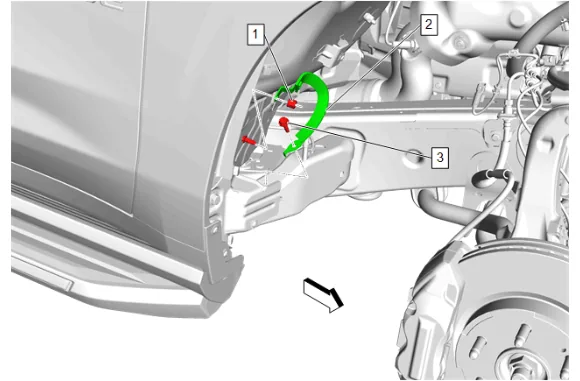

Battery Positive and Negative Cable Strap Replacement — figure 7

9. Body Ground Stud Nut (1) » Remove

10. Battery Negative Cable Ground Bolt (3) » Remove

11. Battery Positive and Negative Cable Strap (2) » Remove Installation Procedure

12. Battery Positive and Negative Cable Strap (2) » Install

Caution

Refer to Fastener Caution.

2. Battery Negative Cable Ground Bolt (3) » Install and tighten — Fastener Specifications

3. Body Ground Stud Nut (1) » Install and tighten — Fastener Specifications

4. Front Wheelhouse Liner - Right Side (1) » Install

5. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

6. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

7. Front Wheelhouse Liner Retainer - Right Side (2) » Install

8. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Quantity of fasteners may vary based on option content.

9. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

10. { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Install and tighten — Fastener Specifications

11. Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation
