Fastener Specifications
Table 1:
Accelerator Pedal
Table 2:
Air Cleaner Assembly with Mass Airflow Sensor
Table 3:
Camshaft Position Actuator Magnet and Camshaft Position Sensor
Table 4:
Crankshaft Position Sensor
Table 5:
Engine Control Module Bracket
Table 6:
Engine Oil Pressure and Temperature Sensor and Knock Sensor 1
Table 7:
Fuel Feed Pipe — Engine
Table 8:
Fuel Feed and Return Front Pipe
Table 9:
Fuel Rail and Fuel Injector Components
Table 10:
Fuel Tank and Evaporative Emission Canister Components
Table 11:
Fuel Feed and Return Front Pipe
Table 12:
Fuel Tank Filler Pipe
Table 13:
Fuel Tank Filler Pipe Bracket
Table 14:
Fuel Feed and Return Pipe Clip Bracket
Table 15:
Fuel Feed and Return Front Hose Bracket
Table 16:
Fuel Tank Filler Pipe Housing
Table 17:
Heated Oxygen Sensor — Bank 2 Sensor 1
Table 18:
Heated Oxygen Sensors and Knock Sensor 2
Table 19:
Manifold Absolute Pressure Sensor and Engine Coolant Temperature Sensor
Table 20:

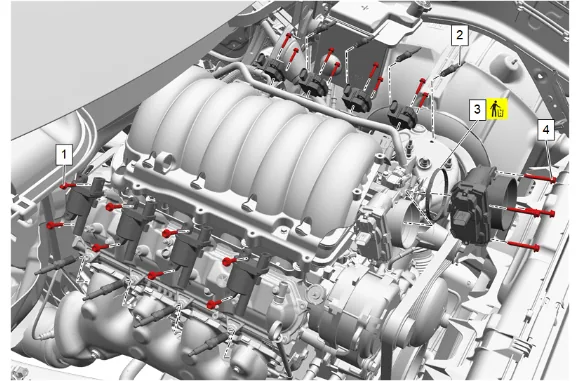

Throttle Body and Ignition Coils
Fastener Specifications (2) — figure 1

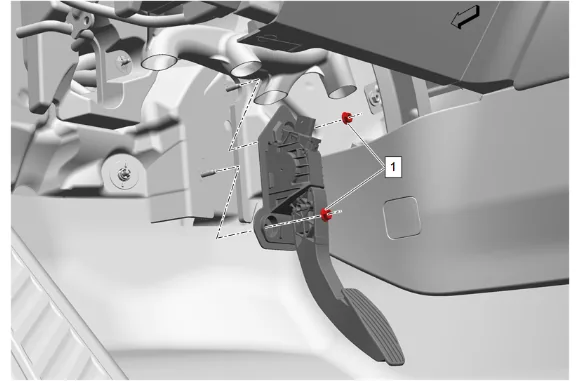

Accelerator Pedal
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Accelerator Pedal Nut [2x] |
— |
— |
9 Y (80 lb in) |
Accelerator Pedal Replacement |
Fastener Specifications (2) — figure 2

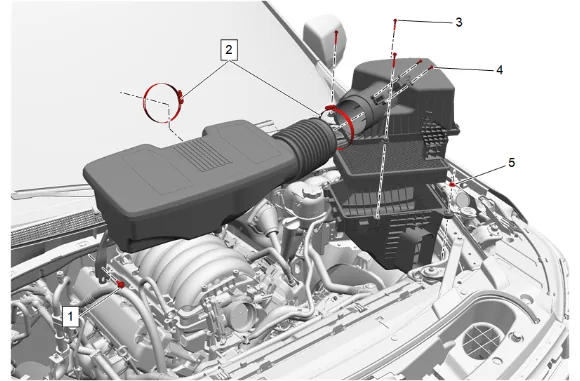

Air Cleaner Assembly with Mass Airflow Sensor
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Air Cleaner Outlet Duct Bracket Bolt |
— |
— |
9 Y (80 lb in) |
Air Cleaner Outlet Duct Replacement |
|
|
2 |
Air Cleaner Outlet Duct Clamp [2x] |
— |
— |
4 Y (35 lb in) |
Air Cleaner Outlet Duct Replacement |
|
|
3 |
Air Cleaner Housing Cover Bolt [3x] |
— |
— |
4 Y (35 lb in) |
Air Cleaner Assembly Replacement |
|
|
4 |
Mass Airflow Sensor Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Mass Airflow Sensor Replacement |
|
|
5 |
Air Cleaner Nut |
— |
— |
9 Y (80 lb in) |
Air Cleaner Assembly Replacement |
|
Fastener Specifications (2) — figure 3

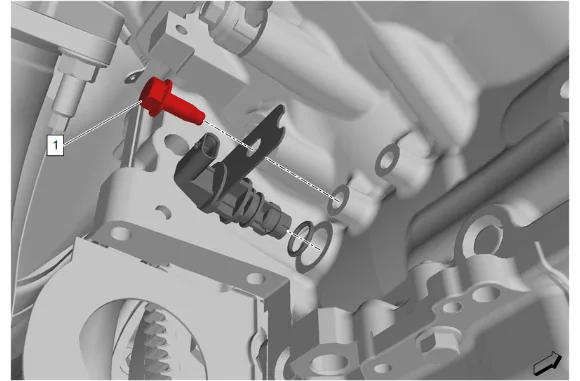

Camshaft Position Actuator Magnet and Camshaft Position Sensor
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Camshaft Position Actuator Magnet Bolt [3x] |
— |
— |
10 Y (89 lb in) |
Camshaft Position Actuator Magnet Replacement |
| 2 |
Camshaft Position Actuator Magnet Gasket |
Yes |
— |
— |
Camshaft Position Actuator Magnet Replacement |
| 3 |
Camshaft Position Sensor Bracket Bolt [2x] |
— |
— |
10 Y (89 lb in) |
Camshaft Position Sensor Replacement |
| 4 |
Camshaft Position Sensor Seal |
Yes |
— |
— |
Camshaft Position Sensor Replacement |
Fastener Specifications (2) — figure 4

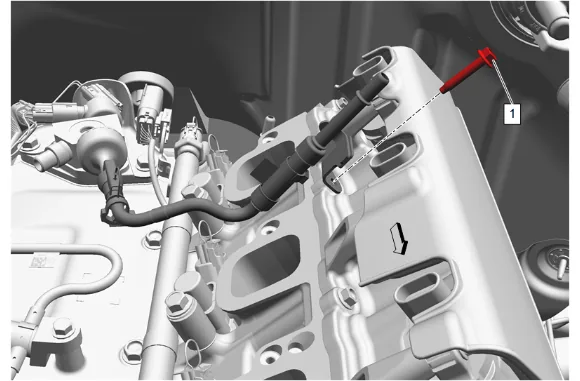

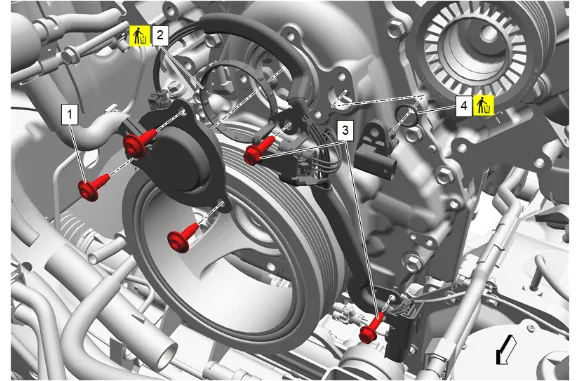

Crankshaft Position Sensor
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Crankshaft Position Sensor Bolt |
— |
— |
25 Y (18 lb ft) |
Crankshaft Position Sensor Replacement |
Fastener Specifications (2) — figure 5

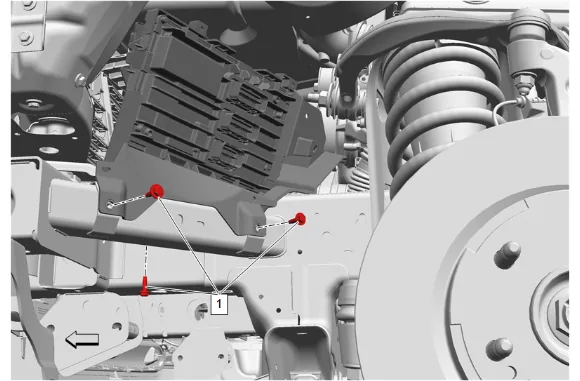

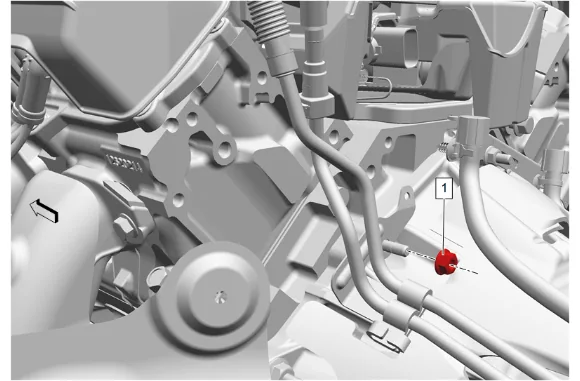

Engine Control Module Bracket
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Engine Control Module Bracket Bolt [3x] |
— |
— |
9 Y (80 lb in) |
Engine Control Module Bracket Replacement |
Fastener Specifications (2) — figure 6

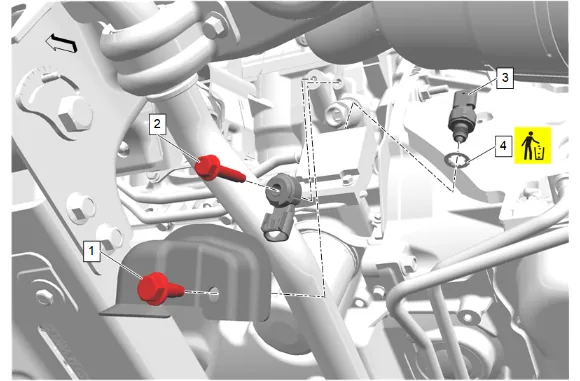

Engine Oil Pressure and Temperature Sensor and Knock Sensor 1
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Knock Sensor Shield Bolt |
— |
— |
25 Y (18 lb ft) |
Knock Sensor 1 Replacement |
| 2 |
Knock Sensor Bolt |
— |
— |
25 Y (18 lb ft) |
Knock Sensor 1 Replacement |
| 3 |
Engine Oil Pressure and Temperature Sensor |
— |
— |
35 Y (26 lb ft) |
Engine Oil Pressure and Temperature Sensor Replacement |
Fastener Specifications (2) — figure 7
Fuel Feed Pipe — Engine
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Feed Pipe Bolt |
— |
— |
10 Y (89 lb in) |
Fuel Feed Pipe Replacement - Engine |
Fastener Specifications (2) — figure 8

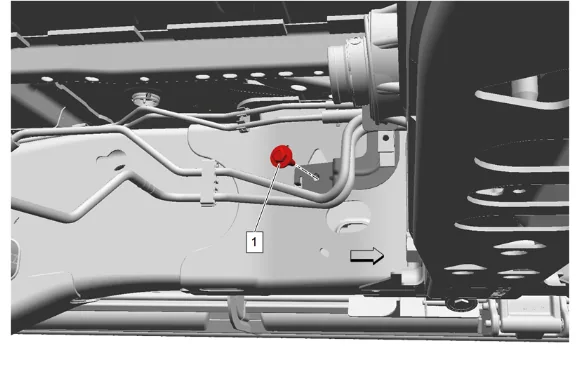

Fuel Feed and Return Front Pipe
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Feed and Evaporative Emission and Return Pipe Clip Bracket Bolt |
— |
— |
22 Y (16 lb ft) |
Fuel Feed Pipe Replacement - Underbody |
Fastener Specifications (2) — figure 9

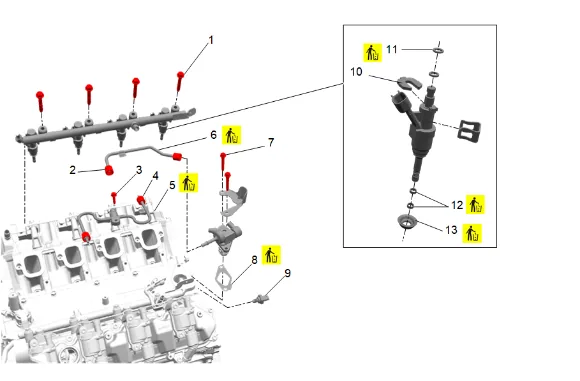

Fuel Rail and Fuel Injector Components
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Fuel Injection Fuel Rail Bolt [8x] |
— |
— |
25 Y (18 lb ft) |
Fuel Injection Fuel Rail Assembly Replacement - Bank 1 |
|
|
2 |
Fuel Feed Intermediate Pipe Nut[2x] |
— |
— |
30 Y (22 lb ft) |
Fuel Feed Intermediate Pipe Replacement - Position 1 |
|
|
3 |
Fuel Feed Pipe Bolt |
— |
— |
10 Y (89 lb in) |
Fuel Feed Intermediate Pipe Replacement - Position 2 |
|
|
4 |
Fuel Feed Intermediate Pipe Nut[2x] |
— |
— |
30 Y (22 lb ft) |
Fuel Feed Intermediate Pipe Replacement - Position 2 |
|
|
5 |
Fuel Feed Intermediate Pipe |
Yes |
— |
— |
Fuel Feed Intermediate Pipe Replacement - Position 2 |
|
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 6 |
Fuel Feed Intermediate Pipe |
Yes |
— |
— |
Fuel Feed Intermediate Pipe Replacement - Position 1 |
| 7 |
Fuel Pump Bolt [2x] |
— |
— |
25 Y (18 lb ft) |
Fuel Pump Replacement |
| 8 |
Fuel Pump Bracket Gasket |
Yes |
— |
— |
Fuel Pump Replacement |
| 9 |
Fuel Injection Fuel Rail Fuel Pressure Sensor |
— |
— |
32.5 Y (24 lb ft) |
Fuel Rail Pressure Sensor Replacement |
| 10 |
Fuel Injector Retainer [8x] |
Yes |
— |
— |
Fuel Injection Fuel Rail Assembly Replacement - Bank 1 |
| 11 |
Fuel Injection Fuel Rail Seal [8x] |
Yes |
— |
— |
Fuel Injection Fuel Rail Assembly Replacement - Bank 1 |
| 12 |
Direct Fuel Injector Hold Down Clamp [4x] |
Yes |
— |
— |
Fuel Injection Fuel Rail Assembly Replacement - Bank 1 |
| 13 |
Fuel Injector Nozzle Housing Seal [16x] |
Yes |
— |
— |
Fuel Injection Fuel Rail Assembly Replacement - Bank 1 |
| 14 |
Fuel Injector Seal [8x] |
Yes |
— |
— |
Fuel Injection Fuel Rail Assembly Replacement - Bank 1 |

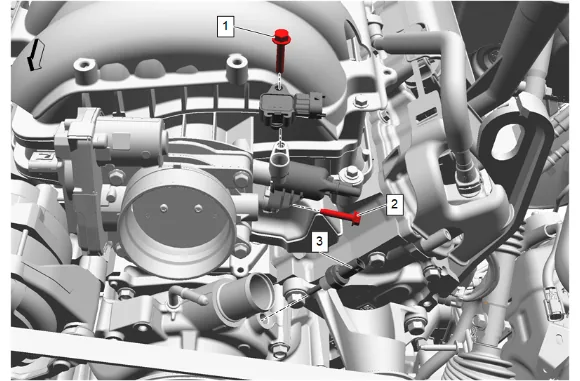

Fastener Specifications (2) — figure 10

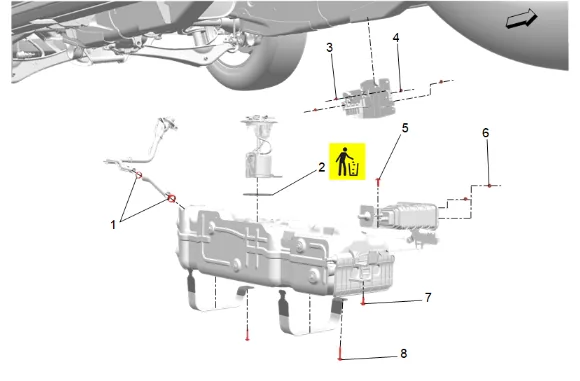

Fuel Tank and Evaporative Emission Canister Components
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Fuel Tank Filler Hose Clamp [2x] |
— |
— |
3.5 Y (31 lb in) |
Fuel Tank Filler Hose Replacement |
|
|
2 |
Fuel Sender Seal |
Yes |
— |
— |
Fuel Tank Fuel Pump Module Replacement |
|
|
3 |
Fuel Pump Power Control Module Nut [2x] |
— |
— |
9 Y (80 lb in) |
Fuel Pump Power Control Module Replacement |
|
|
4 |
Fuel Pump Power Control Module Bracket Nut[2x] |
— |
— |
9 Y (80 lb in) |
Fuel Pump Power Control Module Replacement |
|
|
5 |
Evaporative Emission Canister Bracket Bolt |
— |
Yes |
15 Y (11 lb ft) |
Evaporative Emission Canister Bracket Replacement |
|
|
6 |
Evaporative Emission Canister Nut [2x] |
— |
— |
9 Y (80 lb in) |
Evaporative Emission Canister Replacement |
|
|
7 |
Evaporative Emission Canister Bracket Bolt [2x] |
— |
— |
22 Y (16 lb ft) |
Evaporative Emission Canister Replacement |
|
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 8 |
Fuel Tank Strap Bolt [2x] |
— |
— |
22 Y (16 lb ft) |
Fuel Tank Replacement |

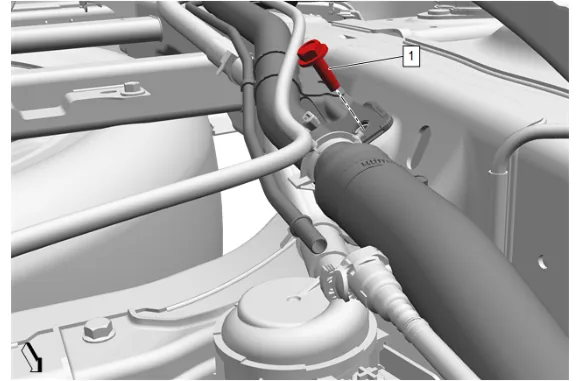

Fuel Feed and Return Front Pipe
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Feed and Evaporative Emission and Return Pipe Clip Bracket Bolt |
— |
— |
22 Y (16 lb ft) |
Fuel Feed Pipe Replacement - Underbody |
Fastener Specifications (2) — figure 11
Fuel Tank Filler Pipe
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Tank Filler Pipe Bracket Bolt |
— |
— |
22 Y (16 lb ft) |
Fuel Tank Filler Pipe Replacement |
Fastener Specifications (2) — figure 12

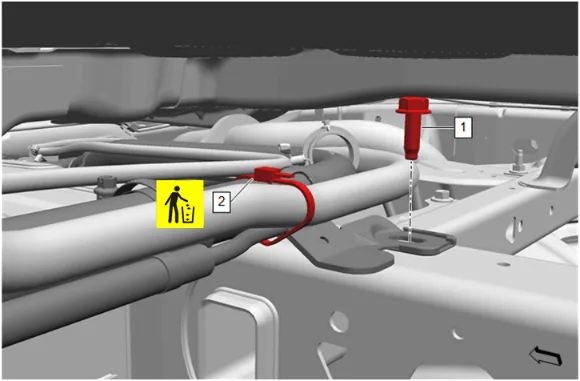

Fuel Tank Filler Pipe Bracket
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Tank Filler Pipe Bracket Bolt |
— |
— |
22 Y (16 lb ft) |
Fuel Tank Filler Pipe Replacement |
| 2 |
Tie Strap |
Yes |
— |
— |
Fuel Tank Filler Pipe Replacement |
Fastener Specifications (2) — figure 13

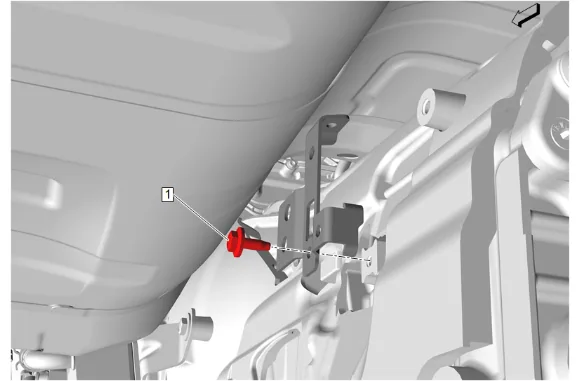

Fuel Feed and Return Pipe Clip Bracket
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Feed and Return Front Hose Bracket Nut |
— |
— |
22 Y (16 lb ft) |
Fuel Feed and Return Front Hose Bracket Replacement |
Fastener Specifications (2) — figure 14
Fuel Feed and Return Front Hose Bracket
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Feed and Return Front Hose Bracket Bolt |
— |
— |
9 Y (7 lb ft) |
Fuel Feed and Return Front Hose Bracket Replacement |
Fastener Specifications (2) — figure 15
Fuel Tank Filler Pipe Housing
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Tank Filler Pipe Housing Bolt [3x] |
— |
— |
12 Y (106 lb in) |
Fuel Tank Filler Pipe Replacement |
Fastener Specifications (2) — figure 16

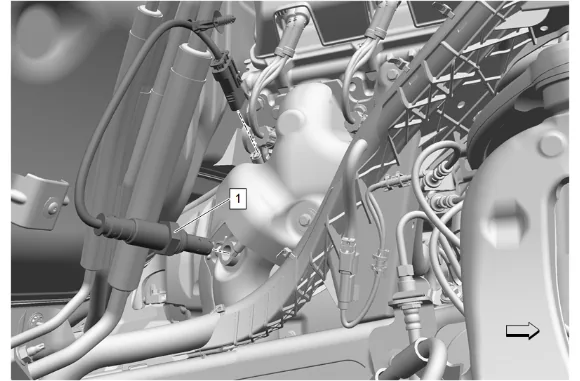

Heated Oxygen Sensor — Bank 2 Sensor 1
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heated Oxygen Sensor |
— |
— |
42 Y (31 lb ft) |
Heated Oxygen Sensor Replacement - Bank 2 Sensor 1 |
Fastener Specifications (2) — figure 17

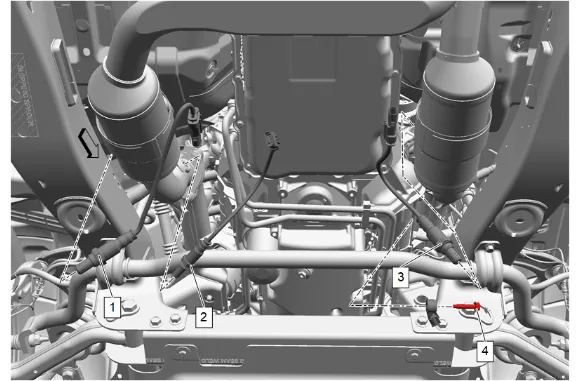

Heated Oxygen Sensors and Knock Sensor 2
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heated Oxygen Sensor |
— |
— |
42 Y (31 lb ft) |
Heated Oxygen Sensor Replacement - Bank 1 Sensor 1 |
| 2 |
Heated Oxygen Sensor |
— |
— |
42 Y (31 lb ft) |
Heated Oxygen Sensor Replacement - Bank 1 Sensor 2 |
| 3 |
Heated Oxygen Sensor |
— |
— |
42 Y (31 lb ft) |
Heated Oxygen Sensor Replacement - Bank 2 Sensor 2 |
| 4 |
Knock Sensor Bolt |
— |
— |
25 Y (18 lb ft) |
Knock Sensor 2 Replacement |
Fastener Specifications (2) — figure 18
Manifold Absolute Pressure Sensor and Engine Coolant Temperature Sensor
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Manifold Absolute Pressure Sensor Bolt |
— |
— |
4.5 Y (40 lb in) |
Manifold Absolute Pressure Sensor Replacement |
| 2 |
Evaporative Emission Canister Purge Solenoid Valve Bolt |
— |
— |
10 Y (89 lb in) |
Evaporative Emission Canister Purge Solenoid Valve Replacement |
| 3 |
Engine Coolant Temperature Sensor |
— |
— |
30 Y (22 lb ft) |
Engine Coolant Temperature Sensor Replacement |
Fastener Specifications (2) — figure 19
Throttle Body and Ignition Coils
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Ignition Coil Bolt [16x] |
— |
— |
15 Y (11 lb ft) |
Ignition Coil Replacement - Right Side Ignition Coil Replacement - Left Side |
| 2 |
Gas Engine Ignition Spark Plug [8x] |
— |
— |
20 Y (15 lb ft) |
Gas Engine Ignition Spark Plug Replacement - Right Side Gas Engine Ignition Spark Plug Replacement - Left Side |
| 3 |
Throttle Body Seal |
Yes |
— |
— |
Throttle Body Assembly Replacement |
| 4 |
Throttle Body Bolt [4x] |
— |
— |
10 Y (89 lb in) |
Throttle Body Assembly Replacement |
