Instrument Panel Compartment Replacement

Removal Procedure

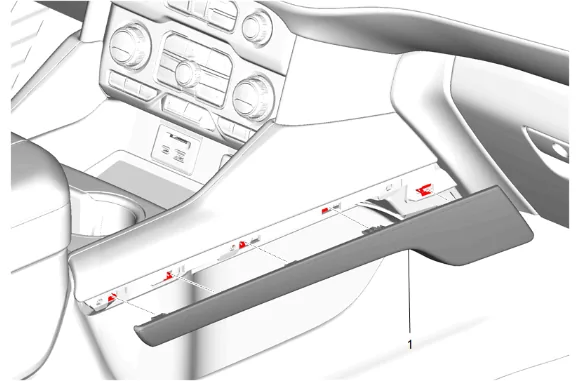

Instrument Panel Compartment Replacement — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.

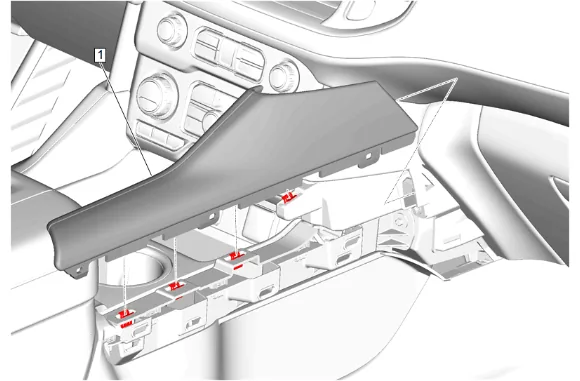

2. Front Floor Console Lower Applique (1) » Remove

Instrument Panel Compartment Replacement — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.

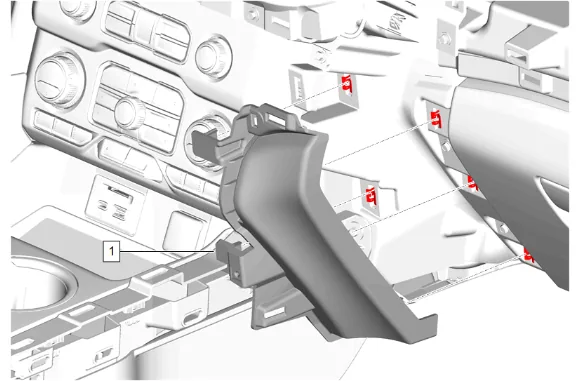

4. Front Floor Console Applique (1) » Remove

Instrument Panel Compartment Replacement — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Compartment Replacement — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Compartment Replacement — figure 5

9. Using a flat-bladed plastic trim tool, release the retaining clips.

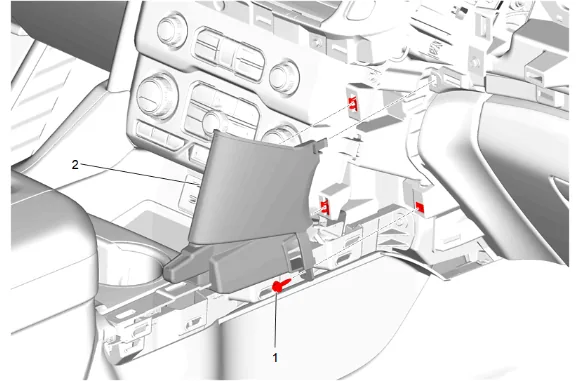

10. Instrument Panel Center Trim Plate Applique (1) » Remove

Instrument Panel Compartment Replacement — figure 6

11. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
12. Using a flat-bladed plastic trim tool, release the retaining clips.
13. Disconnect the electrical connector.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

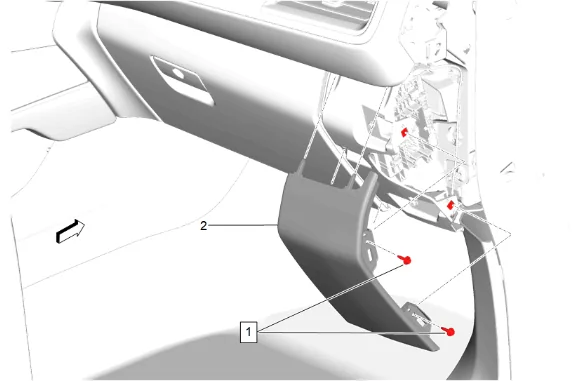

14. Instrument Panel Trim Pad (2) » Remove

Instrument Panel Compartment Replacement — figure 7

15. Instrument Panel Compartment Bolt (1) » Remove [2x]
16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Instrument Panel Lower Trim Panel Outer Filler (2) » Remove

Instrument Panel Compartment Replacement — figure 8

18. Instrument Panel Lower Trim Panel Bolt (1) » Remove
19. Using a flat-bladed plastic trim tool, release the retaining clips.
20. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

Instrument Panel Compartment Replacement — figure 9

21. Using a flat-bladed plastic trim tool, release the retaining clips.
22. Instrument Panel Lower Trim Panel (1) » Remove

Instrument Panel Compartment Replacement — figure 10

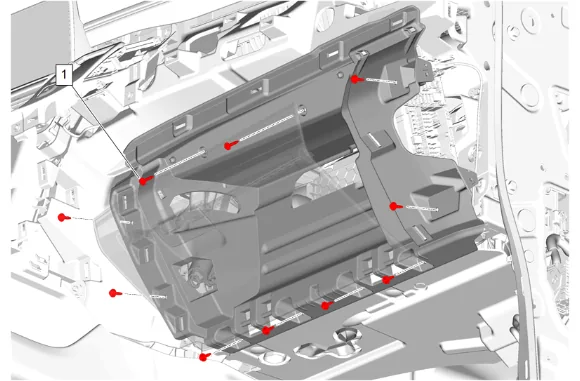

23. Instrument Panel Compartment Bolt (1) » Remove [10x]

Instrument Panel Compartment Replacement — figure 11

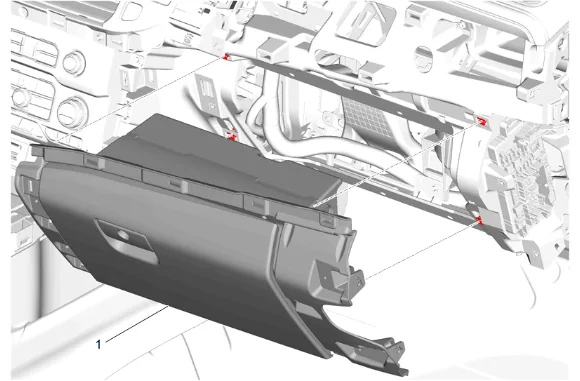

24. Instrument Panel Compartment (1) » Remove Installation Procedure

25. Instrument Panel Compartment (1) » Install

Caution

Refer to Fastener Caution.

2. Instrument Panel Compartment Bolt (1) » Install and tighten [10x] — Fastener Specifications

3. Instrument Panel Lower Trim Panel (1) » Install

4. Instrument Panel Lower Center Trim Plate Applique (2) » Install

5. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

6. Instrument Panel Lower Trim Panel Outer Filler (2) » Install

7. Instrument Panel Compartment Bolt (1) » Install and tighten [2x] — Fastener Specifications

8. Connect the electrical connector.

9. Instrument Panel Trim Pad (2) » Install

10. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

11. Instrument Panel Center Trim Plate Applique (1) » Install

12. Instrument Panel Trim Plate Applique (1) » Install

13. Instrument Panel Fuse Block Access Hole Cover (1) » Install

14. Front Floor Console Applique (1) » Install

15. Front Floor Console Lower Applique (1) » Install
