Rear Side Door Rear Auxiliary Weatherstrip Replacement (long wheel base)

Rear Side Door Rear Auxiliary Weatherstrip Replacement (long wheel base) Removal Procedure

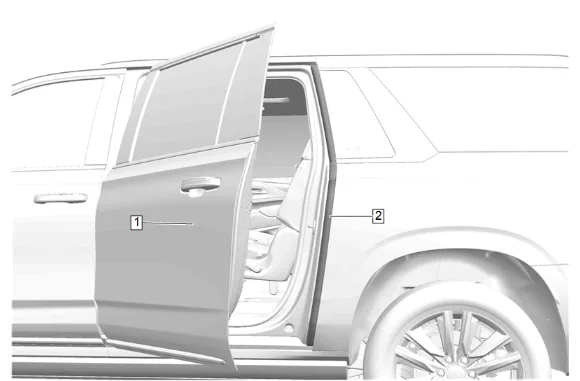

Rear Side Door Rear Auxiliary Weatherstrip Replacement (long wheel base) — figure 1
Rear Side Door Rear Auxiliary Weatherstrip Replacement (long wheel base) — figure 1
  1. Open the rear side door (1) to gain access to the rear side door rear auxiliary weatherstrip (2).

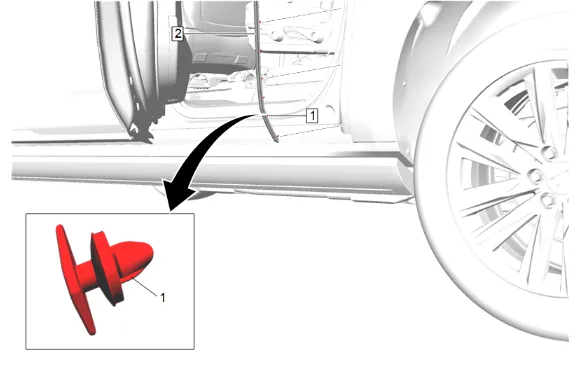

Rear Side Door Rear Auxiliary Weatherstrip Replacement (long wheel base) — figure 2
Rear Side Door Rear Auxiliary Weatherstrip Replacement (long wheel base) — figure 2
  1. Start at the bottom of the rear side door rear auxiliary weatherstrip (2).
  2. Rear Side Door Rear Auxiliary Weatherstrip Retainer (1) » Release [12x]
Rear Side Door Rear Auxiliary Weatherstrip Replacement (long wheel base) — figure 3
Rear Side Door Rear Auxiliary Weatherstrip Replacement (long wheel base) — figure 3
  1. Push the rear side door rear auxiliary weatherstrip (2) up to release from both body side outer panel studs (1).
  2. Rear Side Door Rear Auxiliary Weatherstrip (2) » Remove Installation Procedure
Rear Side Door Rear Auxiliary Weatherstrip Replacement (long wheel base) — figure 4
Rear Side Door Rear Auxiliary Weatherstrip Replacement (long wheel base) — figure 4

  1. Place the rear side door rear auxiliary weatherstrip (2) onto both body side outer panel studs (1) and pull down until seated.

  2. Rear Side Door Rear Auxiliary Weatherstrip (2) » Install

  3. Rear Side Door Rear Auxiliary Weatherstrip Retainer (1) » Install [12x]

  4. Close the rear side door.
