Rear Seat Head Restraint Guide Replacement (60 Percent)

Removal Procedure

Rear Seat Head Restraint Guide Replacement (60 Percent) — figure 1

Reposition the seat as necessary.
Using a suitable plastic trim tool, release the two rear seat anchor plate bezel plastic retainers.
Rear Seat Anchor Plate Bezel (1) » Remove

Rear Seat Head Restraint Guide Replacement (60 Percent) — figure 2

Unzip the left and right rear seat back cover zippers.
Reposition the rear seat back cover, pad, J-channel retainers, and retainers as necessary.

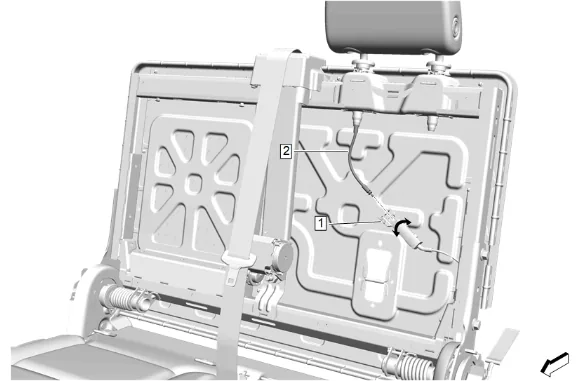

Using a suitable flat-bladed tool, open the rear seat head restraint cable cover (1).
Release the rear seat head restraint cable (2).

Rear Seat Head Restraint Guide Replacement (60 Percent) — figure 3

Twist the rear seat head restraint guide bezels (1) counter clockwise while lifting the bezels upward onto the head restraint adjuster rod.
Using a suitable pointed or flat bladed tool, push the rear seat head restraint guide clip (2) rearward while pulling upward on the rear seat head restraint (3).
Rear Seat Head Restraint (3) » Remove

Rear Seat Head Restraint Guide Replacement (60 Percent) — figure 4

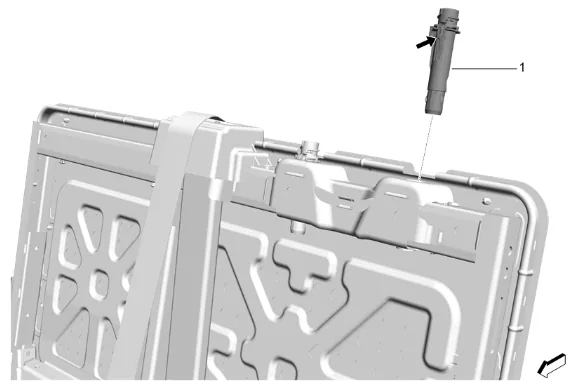

Using a suitable flat-bladed tool, push the plastic tab of the rear seat head restraint guide (1) inward and pull upward to remove from the seat back frame. Installation Procedure

Rear Seat Head Restraint Guide (1) » Install
Rear Seat Head Restraint Guide Bezel (1) » Install [2x]
Rear Seat Head Restraint (3) » Install

Install the rear seat head restraint cable (2).
Close the rear seat head restraint cable cover (1).
Position the rear seat back cover, pad, J-channel retainers, and retainers to the original location.
Zip the left and right rear seat back cover zippers.
Rear Seat Anchor Plate Bezel (1) » Install
Return the seat to its original position.
