Front Side Door Lower Auxiliary Weatherstrip Replacement

Front Side Door Lower Auxiliary Weatherstrip Replacement Removal Procedure

  1. Open the front door.

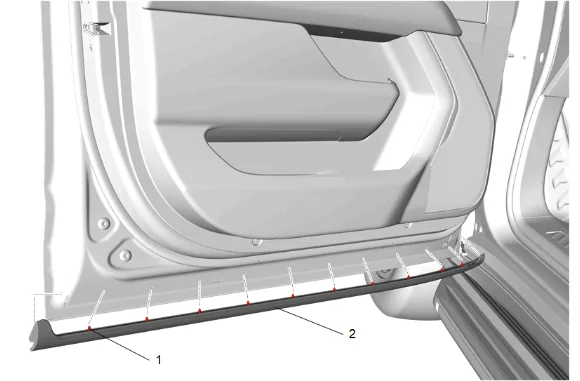

Front Side Door Lower Auxiliary Weatherstrip Replacement — figure 1
Front Side Door Lower Auxiliary Weatherstrip Replacement — figure 1

  1. Front Side Door Lower Auxiliary Weatherstrip Retainer (1) » Release [12x]

  2. Front Side Door Lower Auxiliary Weatherstrip (2) » Remove Installation Procedure

  3. Front Side Door Lower Auxiliary Weatherstrip (2) » Install

  4. Front Side Door Lower Auxiliary Weatherstrip Retainer (1) » Install [12x]

  5. Close the front door.
