Tahoe / Yukon Service Manual

Special Tools

Automatic Transmission - 10L80 MHS MQC | Special Tools and Equipment | Document ID: 4875718 Illustration Tool Number/Description

Special Tools — figure 1
Special Tools — figure 1

DT-03289-20 J-3289-20 Holding Fixture (Base)

Special Tools — figure 2
Special Tools — figure 2

DT-21366 J-21366 Converter Holding Strap

Special Tools — figure 3
Special Tools — figure 3

DT-22912–B J-22912–B Bearing Remover

Special Tools — figure 4
Special Tools — figure 4

DT-26941 J-26941 Bushing and Bearing Remover

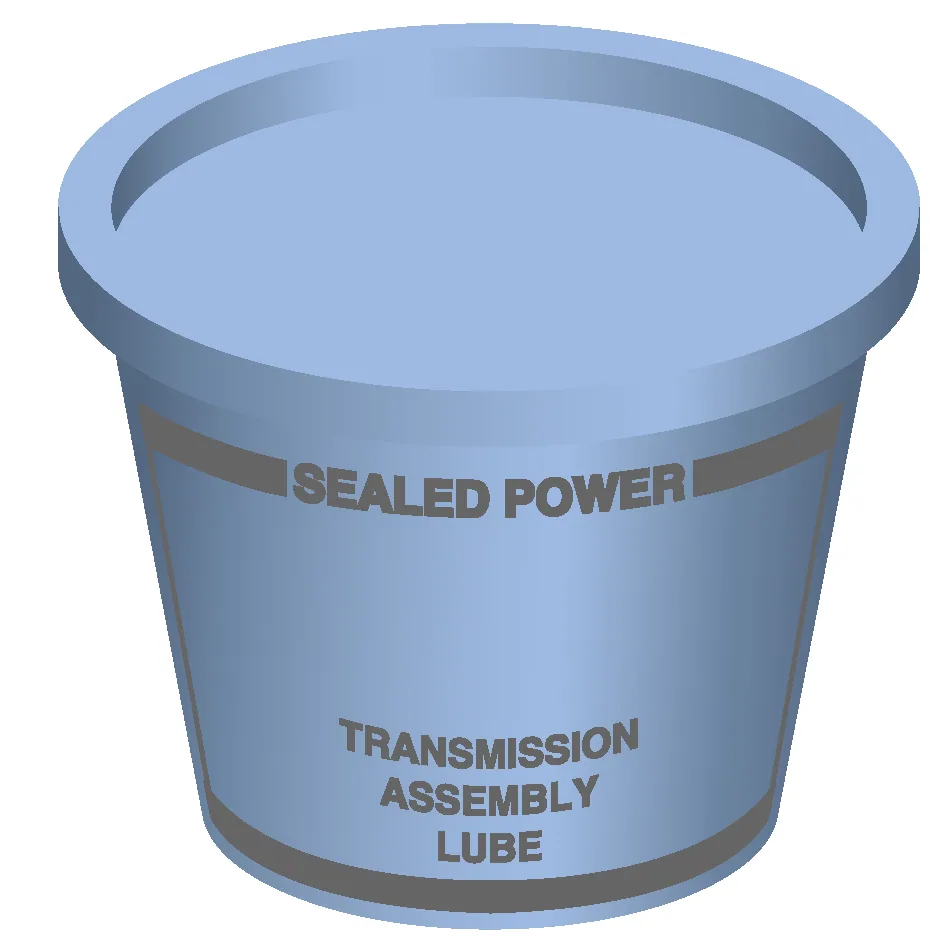

Special Tools — figure 5
Special Tools — figure 5

DT-36850

Illustration Tool Number/Description Transjel Lubricant

Special Tools — figure 6
Special Tools — figure 6

DT-45000 J-45000 Seal Remover

Special Tools — figure 7
Special Tools — figure 7

DT-45053 Universal Clamp Press

Special Tools — figure 8
Special Tools — figure 8

DT-45096 J-45096 Transmission Oil Cooling System Flush and Flow Test Tool

Illustration Tool Number/Description
DT-45096-30 J-45096-30 Transmission Cooler Flusher Adapters
DT-45096-40 J-45096-40 Transflow Oil Fill Adapter
DT-45124-9 J-45124-9 Puller Leg
DT-45201 J-45201 Cooler Line Seal Remover
Special Tools — figure 9
Special Tools — figure 9
Special Tools — figure 10
Special Tools — figure 10
Special Tools — figure 11
Special Tools — figure 11
Special Tools — figure 12
Special Tools — figure 12
Illustration Tool Number/Description
DT-46409 Torque Converter Lifting Handles
DT-47770 Seal Installer
DT-48989 Holding Fixture
DT-50802 Output Shaft Grease Can Installer
Special Tools — figure 13
Special Tools — figure 13
Special Tools — figure 14
Special Tools — figure 14
Special Tools — figure 15
Special Tools — figure 15
Special Tools — figure 16
Special Tools — figure 16
Illustration Tool Number/Description
DT-50921 Output Carrier Lifter
DT-51190 Fluid Fill Pan Adapter
DT-51329 Driveshaft Removal Adapter
DT-51892 Press Tool
Special Tools — figure 17
Special Tools — figure 17
Special Tools — figure 18
Special Tools — figure 18
Special Tools — figure 19
Special Tools — figure 19
Special Tools — figure 20
Special Tools — figure 20
Illustration Tool Number/Description
DT-52080 One-Way Clutch Aligner
DT-52081 End Play Gauge Plate
DT-52086 Piston Return Spring Compressor
DT-52088 Turbine Shaft Seal Sizer
Special Tools — figure 21
Special Tools — figure 21
Special Tools — figure 22
Special Tools — figure 22
Special Tools — figure 23
Special Tools — figure 23
Special Tools — figure 24
Special Tools — figure 24
Illustration Tool Number/Description
DT-52089 Wiring Harness Connector Remover
DT-52090 Rotating Shell Assembly Lift Adapter Bar
DT-52094 Turbine Shaft Small Seal Installer
DT-52095 Turbine Shaft Large Seal Installer
Special Tools — figure 25
Special Tools — figure 25
Special Tools — figure 26
Special Tools — figure 26
Special Tools — figure 27
Special Tools — figure 27
Special Tools — figure 28
Special Tools — figure 28
Illustration Tool Number/Description
DT-52096 Direct Overdrive Sun Gear Shaft Seal Installer
DT-52429 Torque Converter Fluid Seal Installer
EN–52579 Crankshaft Rotator
GE-8001 J-8001 Dial Indicator Set
Special Tools — figure 29
Special Tools — figure 29
Special Tools — figure 30
Special Tools — figure 30
Special Tools — figure 31
Special Tools — figure 31
Special Tools — figure 32
Special Tools — figure 32
Illustration Tool Number/Description
GE-8433-1 Puller Bar
J-36614 Inner Pinion Bearing Installer
J-38869 Seal Installer
Special Tools — figure 33
Special Tools — figure 33
Special Tools — figure 34
Special Tools — figure 34
Special Tools — figure 35
Special Tools — figure 35
