Front Seat Back Ventilation Blower Replacement

Removal Procedure

Front Seat Back Ventilation Blower Replacement — figure 1
Front Seat Back Ventilation Blower Replacement — figure 1
  1. Front Seat Back Cover and Pad (1) » Reposition — Front Seat Back Cover and Pad Removal and Installation

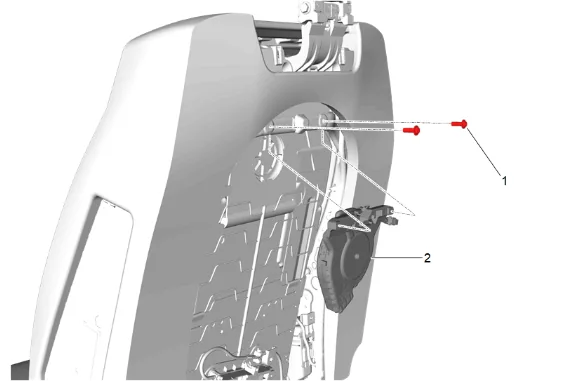

Front Seat Back Ventilation Blower Replacement — figure 2
Front Seat Back Ventilation Blower Replacement — figure 2

  1. Disconnect the electrical connector.

  2. Front Seat Vent Fan Control Module Bolt (1) » Remove [2x]

  3. Release the retaining tabs securing the front seat back ventilation blower (2) to the front seat back cushion vent fan mat.

  4. Front Seat Back Ventilation Blower (2) » Remove Installation Procedure

  5. Front Seat Back Ventilation Blower (2) » Install

  6. Seat the retaining tabs securing the front seat back ventilation blower (2) to the front seat back cushion vent fan mat.

  1. Front Seat Vent Fan Control Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Connect the electrical connector.

  3. Front Seat Back Cover and Pad (1) » Install — Front Seat Back Cover and Pad Removal and Installation
