Engine Oil Cooler Hose Replacement (L84, L87 without RC1)

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) Single Use Fasteners and Components Engine Oil Cooler Retainer [2x] Engine Oil Pressure Sensor Gasket Oil Pan Cover Gasket Removal Procedure

1. Drain the cooling system. Cooling System Draining and Filling

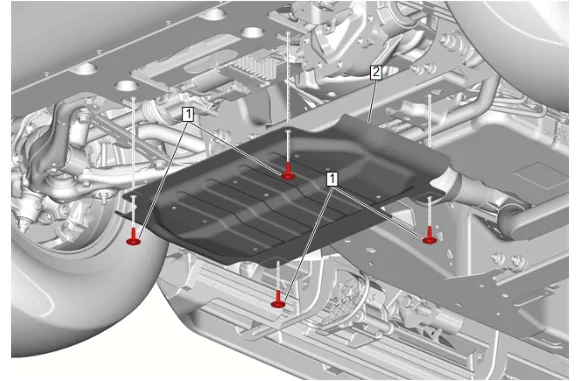

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 1

2. Underbody Skid Shield Bolt (1) » Remove [4x]
3. Underbody Skid Shield (2) » Remove

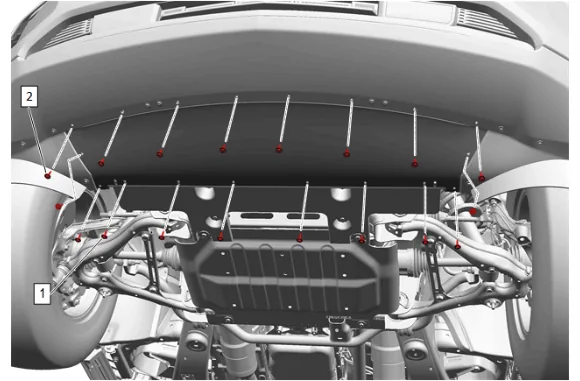

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 2

4. Front Bumper Fascia Air Deflector Bolt (1) » Remove [10x]
5. Front Bumper Fascia Extension Bolt (2) » Remove [8x]

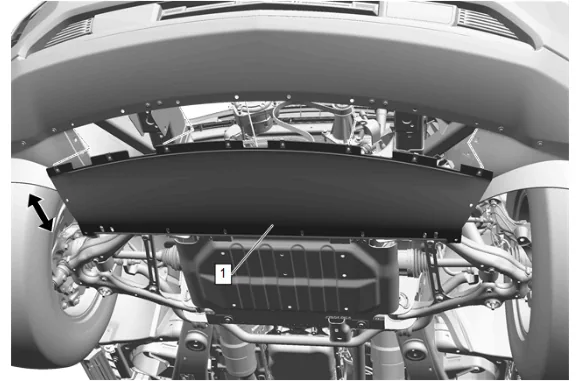

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 3

6. Pull the front bumper fascia extension (1) rearward and down from the front bumper fascia.

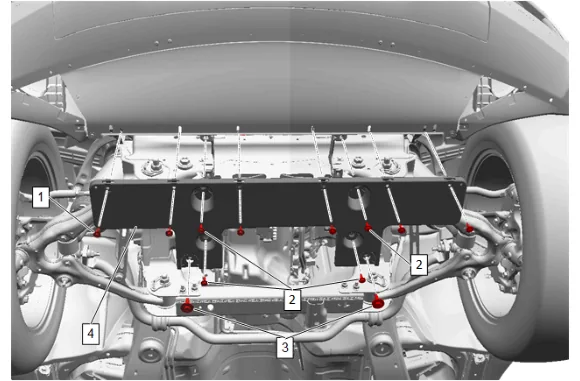

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 4

7. Front Bumper Fascia Extension Bolt (2) » Remove [4x]
8. Remove the front bumper fascia extension (4).
9. If equipped, release the wire harness retainer.
10. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

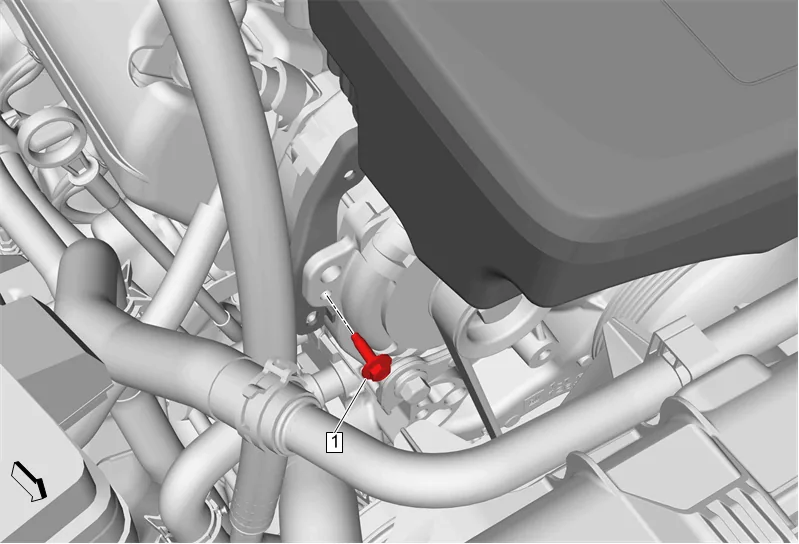

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 5

11. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
12. Remove the engine wiring harness from the air cleaner outlet duct bracket.

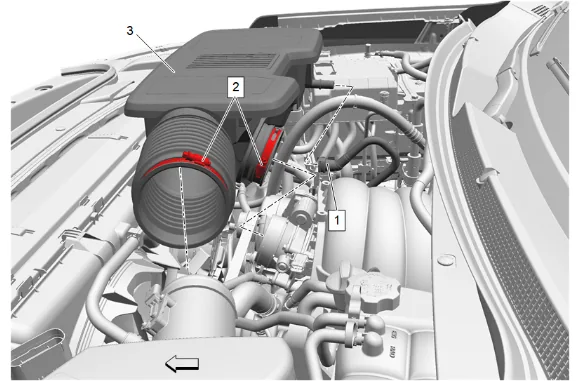

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 6

13. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
14. Air Cleaner Outlet Duct Clamp (2) » Loosen [2x]
15. Air Cleaner Outlet Duct (3) » Remove

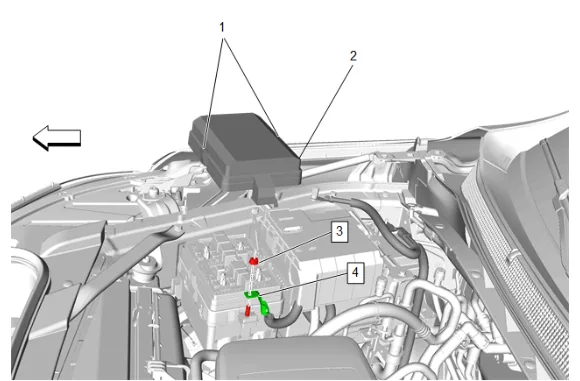

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 7

16. Retaining Tab (1) » Disengage [2x]
17. Engine Wiring Harness Junction Block Cover (2) » Remove
18. Battery Positive Cable Nut (3) » Remove
19. Starter Solenoid Cable (4) » Remove

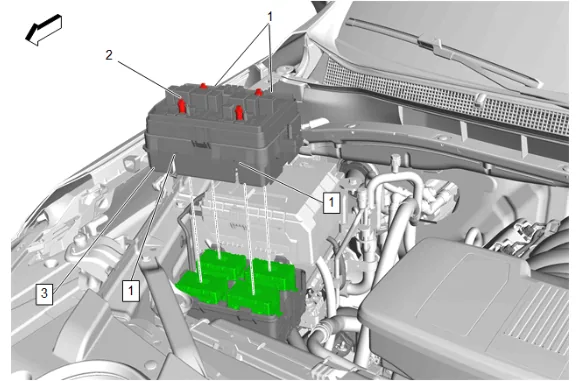

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 8

20. Engine Wiring Harness Junction Block Bolt (2) » Loosen [4x]
21. Retaining Tab (1) » Disengage [4x]
22. Engine Wiring Harness Junction Block (3) » Remove

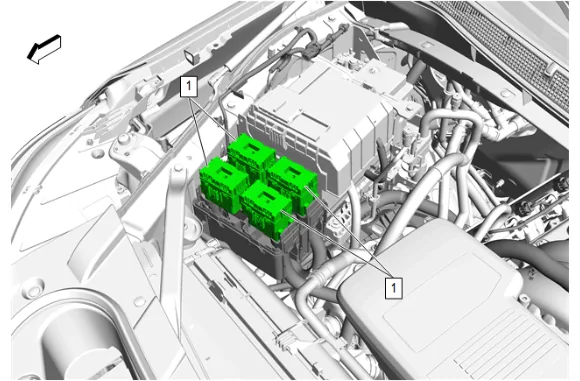

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 9

23. Electrical Connector (1) » Remove [4x]

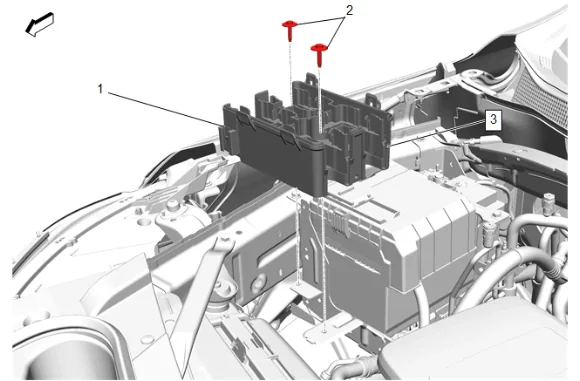

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 10

24. Engine Wiring Harness Fuse Block Bracket Bolt (2) » Remove [2x]
25. Retaining Tab (1) » Disengage
26. Engine Wiring Harness Fuse Block Bracket (3) » Remove

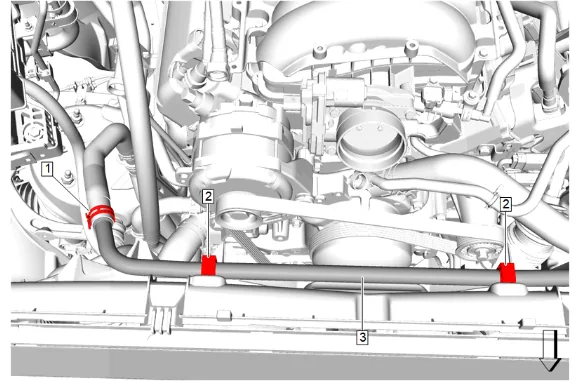

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 11

27. Radiator Surge Tank Outlet Hose Clip (2) » Remove [2x]
28. Radiator Surge Tank Outlet Hose (3) » Position aside

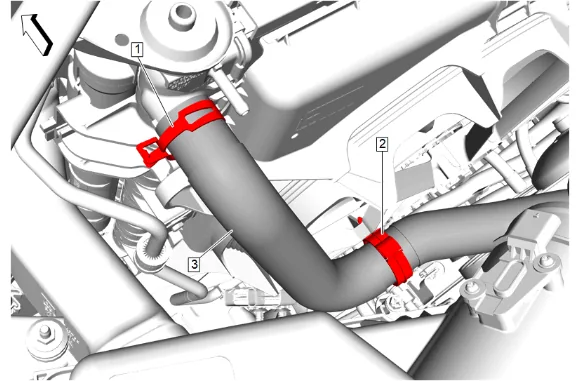

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 12

Note

Some components not shown for graphic clarity.

29. Radiator Inlet Hose Clip (2) » Remove
30. Radiator Inlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
31. Radiator Inlet Hose (3) @ Engine Radiator » Remove and position aside

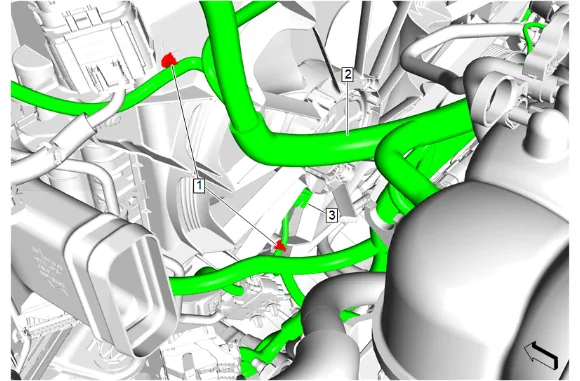

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 13

Note

Some components not shown for graphic clarity.

32. Wiring Harness Retainer (1) » Remove [2x]
33. Electrical Connector (3) » Disconnect
34. Wiring Harness (2) » Position aside

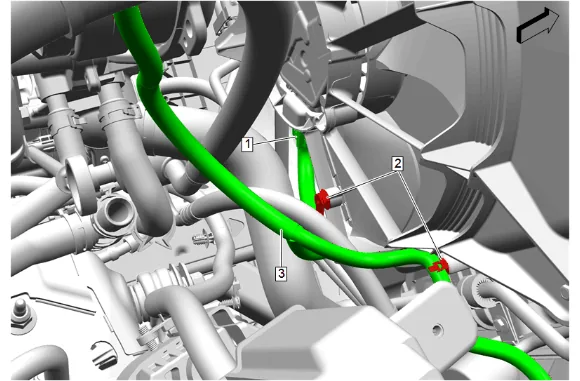

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 14

Note

Some components not shown for graphic clarity.

35. Wiring Harness Retainer (2) » Remove [2x]
36. Electrical Connector (1) » Disconnect
37. Wiring Harness (3) » Position aside

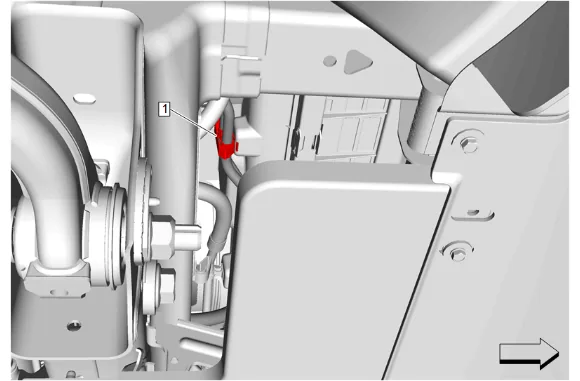

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 15

38. Engine Oil Cooler Hose Clip (1) » Release

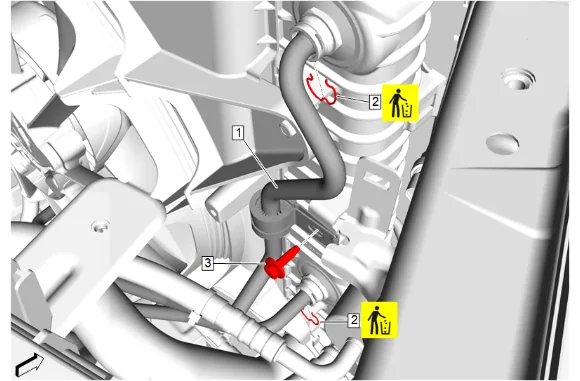

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 16

39. Engine Oil Cooler Retainer (2) » Remove and DISCARD [2x]
40. Engine Oil Cooler Pipe Bracket Bolt (3) » Remove
41. Engine Oil Cooler Hose (1) @ Engine Radiator » Remove [2x]

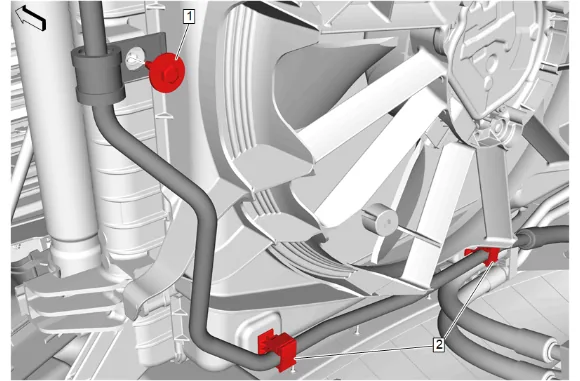

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 17

42. Transmission Fluid Cooler Pipe Bolt (1) » Remove
43. Transmission Fluid Cooler Pipe Clip (2) » Remove [2x]

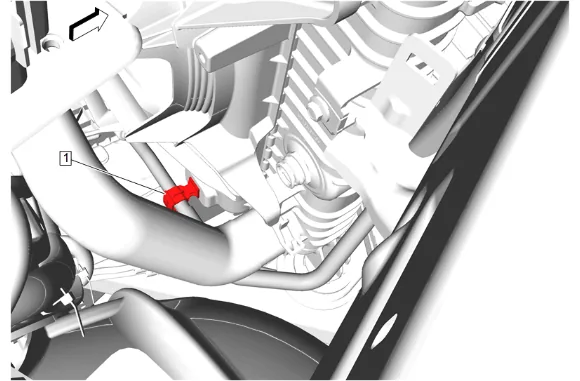

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 18

44. Transmission Fluid Cooler Pipe Clip (1) » Release

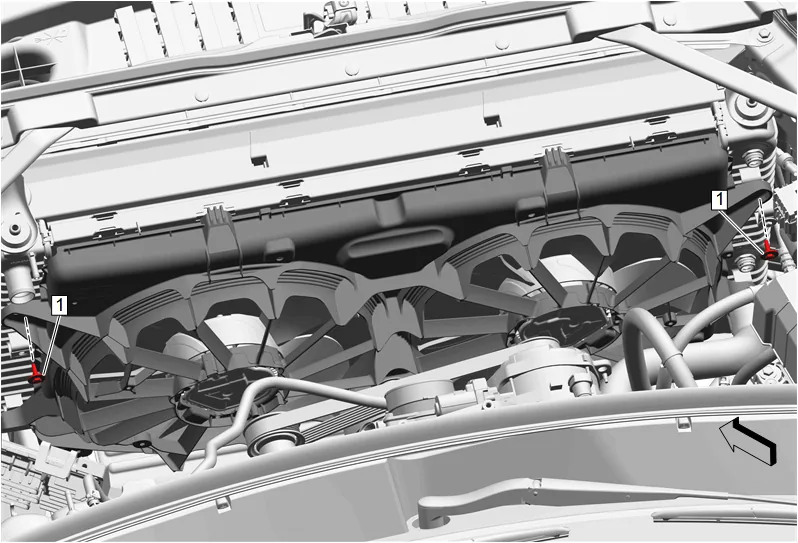

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 19

45. Engine Coolant Fan Bracket Bolt (1) » Remove [2x]

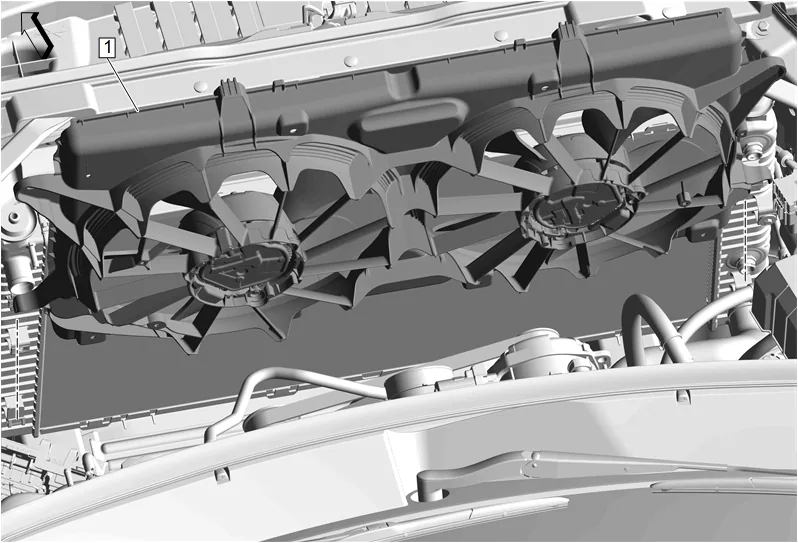

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 20

46. Engine Cooler Fan (1) @ Engine Radiator » Remove
47. Raise the vehicle.

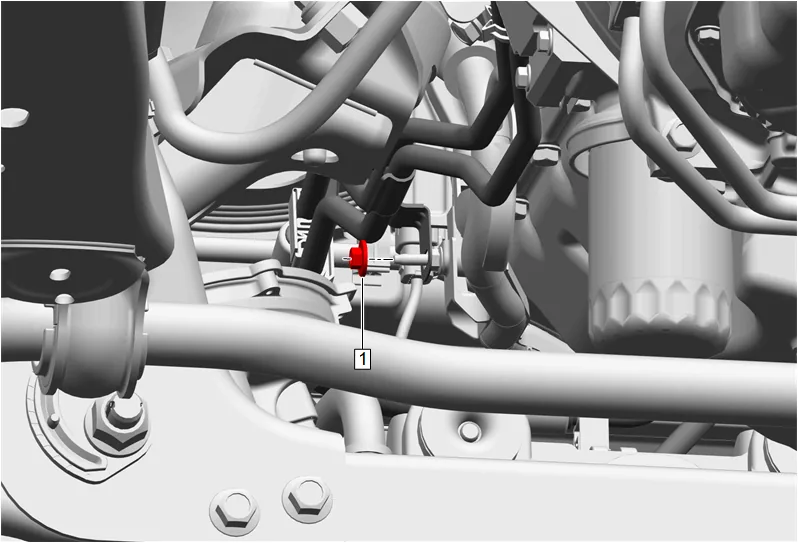

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 21

48. Engine Oil Cooler Hose Bracket Nut (1) » Remove

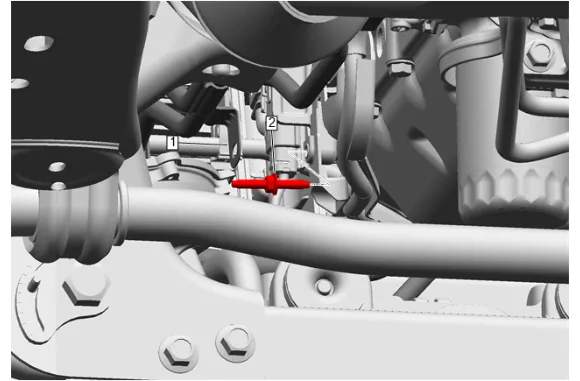

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 22

49. Position the engine oil cooler hose (1) away from the engine wiring harness stud (2).
50. Engine Wiring Harness Stud (2) » Remove

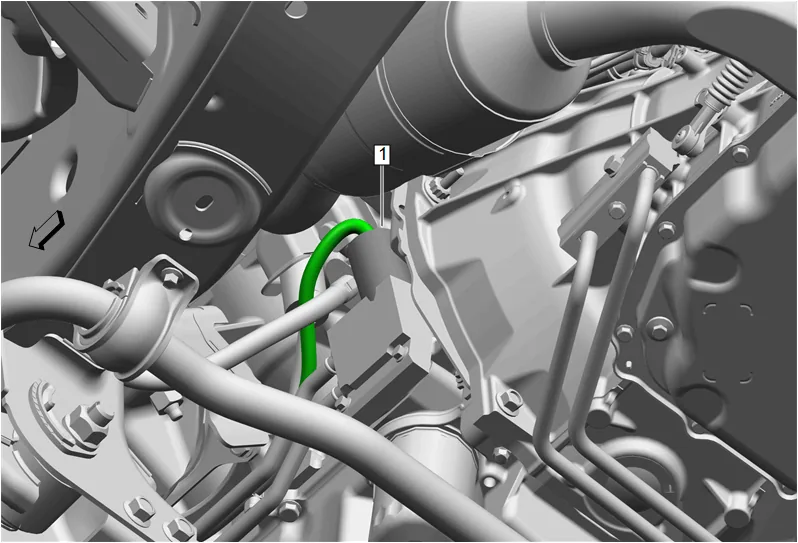

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 23

51. Engine Oil Pressure Sensor Sleeve (1) » Remove

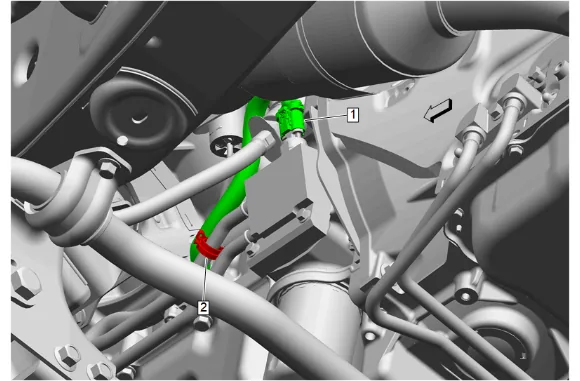

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 24

52. Electrical Connector (1) @ Engine Oil Pressure Sensor » Disconnect
53. Wiring Harness Retainer (2) @ Engine Oil Cooler Hose » Remove

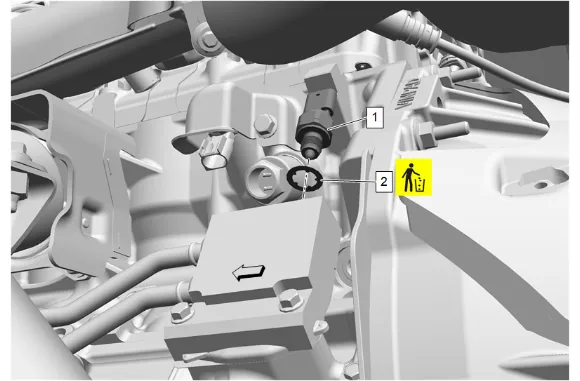

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 25

54. Engine Oil Pressure Sensor (1) » Remove
55. Engine Oil Pressure Sensor Gasket (2) » Remove and DISCARD

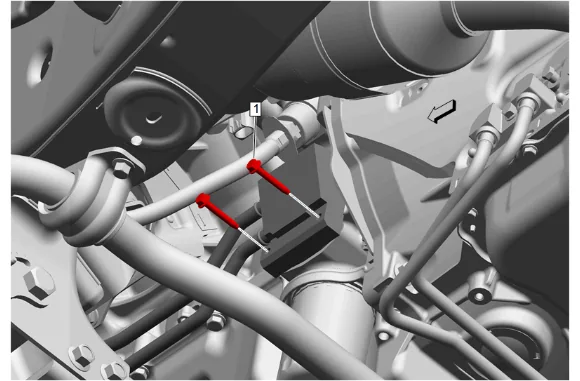

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 26

56. Engine Oil Cooler Hose Bolt (1) » Remove [2x]

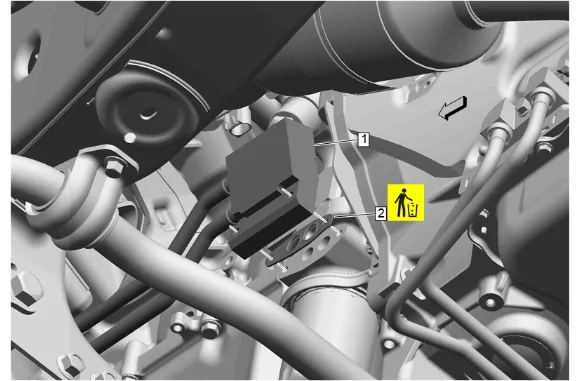

Engine Oil Cooler Hose Replacement (L84, L87 without RC1) — figure 27

57. Remove the engine oil cooler hose (1) towards the front of the vehicle.

58. Oil Pan Cover Gasket (2) » Remove and DISCARD Installation Procedure

59. Oil Pan Cover Gasket (2) » Install NEW

60. Engine Oil Cooler Hose (1) » Install

Caution

Refer to Fastener Caution.

3. Engine Oil Cooler Hose Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Engine Oil Pressure Sensor Gasket (2) » Install NEW

Caution

Refer to Component Fastener Tightening Caution.

5. Engine Oil Pressure Sensor (1) » Install — Fastener Specifications

6. Wiring Harness Retainer (2) @ Engine Oil Cooler Hose » Install

7. Electrical Connector (1) @ Engine Oil Pressure Sensor » Connect

8. Engine Oil Pressure Sensor Sleeve (1) » Install

9. Engine Wiring Harness Stud (2) » Install and tighten — Fastener Specifications

10. Position the engine oil cooler hose (1) onto the engine wiring harness stud (2).

11. Engine Oil Cooler Hose Bracket Nut (1) » Install — Fastener Specifications

12. Engine Cooler Fan (1) @ Engine Radiator » Install

13. Engine Coolant Fan Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

14. Transmission Fluid Cooler Pipe Clip (1) » Secure

15. Transmission Fluid Cooler Pipe Clip (2) » Install [2x]

16. Transmission Fluid Cooler Pipe Bolt (1) » Install and tighten — Fastener Specifications

17. Engine Oil Cooler Hose (1) @ Engine Radiator » Install [2x]

18. Engine Oil Cooler Pipe Bracket Bolt (3) » Install and tighten — Fastener Specifications

19. Engine Oil Cooler Retainer (2) » Install NEW [2x]

20. Engine Oil Cooler Hose Clip (1) » Secure

Note

Some components not shown for graphic clarity.

21. Position the wiring harness. (3)
22. Electrical Connector (1) » Connect
23. Wiring Harness Retainer (2) » Install [2x]

Note

Some components not shown for graphic clarity.

24. Position the wiring harness. (2)
25. Electrical Connector (3) » Connect
26. Wiring Harness Retainer (1) » Install [2x]

Note

Some components not shown for graphic clarity.

27. Radiator Inlet Hose (3) @ Engine Radiator » Install

28. Radiator Inlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

29. Radiator Inlet Hose Clip (2) » Install

30. Radiator Surge Tank Outlet Hose (3) » Move into position

31. Radiator Surge Tank Outlet Hose Clip (2) » Install [2x]

32. Engine Wiring Harness Fuse Block Bracket (3) » Install

33. Retaining Tab (1) » Engage

34. Engine Wiring Harness Fuse Block Bracket Bolt (2) » Tighten [2x] — Fastener Specifications

35. Electrical Connector (1) » Install [4x]

36. Engine Wiring Harness Junction Block (3) » Install

37. Retaining Tab (1) » Engage [4x]

38. Engine Wiring Harness Junction Block Bolt (2) » Tighten [4x] — Fastener Specifications

39. Starter Solenoid Cable (4) » Install

40. Battery Positive Cable Nut (3) » Install and tighten — Fastener Specifications

41. Engine Wiring Harness Junction Block Cover (2) » Install

42. Retaining Tab (1) » Engage [2x]

43. Air Cleaner Outlet Duct (3) » Install

44. Air Cleaner Outlet Duct Clamp (2) » Tighten [2x] — Fastener Specifications

45. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

46. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

47. Install the engine wiring harness to the air cleaner outlet duct bracket.

48. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

49. Raise the vehicle.

50. Front Bumper Fascia Extension (4) » Install

51. If equipped, install the wire harness retainer.

52. Front Bumper Fascia Extension Bolt (2) » Install and tighten [4x] — Fastener Specifications

53. Front Bumper Fascia Extension (1) » Install

54. Front Bumper Fascia Extension Bolt (2) » Install and tighten [8x] — Fastener Specifications

55. Front Bumper Fascia Air Deflector Bolt (1) » Install and tighten [10x] — Fastener Specifications

56. Underbody Skid Shield (2) » Install

57. Underbody Skid Shield Bolt (1) » Install and tighten [4x] — Fastener Specifications

58. Lower the vehicle.

59. Fill the cooling system. Cooling System Draining and Filling

60. Fill the engine oil to the proper level with NEW engine oil. Adhesives, Fluids, Lubricants, and Sealers
