Airbag Front End Discriminating Sensor Replacement

Removal Procedure

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Warning

Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury.

1. Disable the SIR system. SIR Disabling and Enabling
2. Front Bumper Fascia » Remove — Front Bumper Fascia Removal and Installation

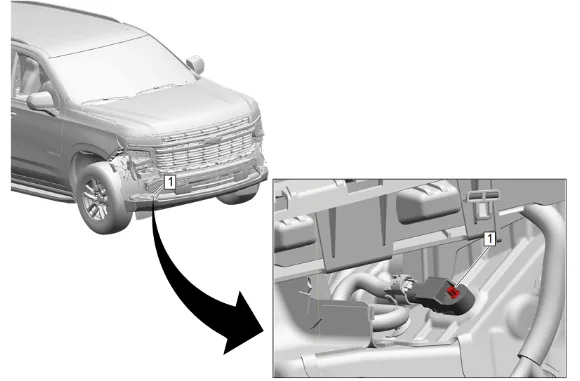

Airbag Front End Discriminating Sensor Replacement — figure 1

Note

Integral sensor assembly bolt uses Left Hand threads. Use counterclockwise rotation to loosen fastener at TORX® tip end. If accessing at pan head end of the fastener, use clockwise rotation to loosen bolt. The bolts are integral to the sensor, DO NOT remove separately.

3. Loosen the fastener and slide the sensor out of the keyhole slot.

4. Disconnect the electrical connector.

5. Airbag Front End Discriminating Sensor (1) » Remove Installation Procedure

6. Connect the electrical connector.

7. Slide the integral bolt into the narrow portion of the keyhole slot until the integral tab is fully seated into wide portion of the keyhole slot before securing.

Caution

Refer to Fastener Caution.

3. Airbag Front End Discriminating Sensor (1) » Install and tighten — Fastener Specifications
4. Front Bumper Fascia » Install — Front Bumper Fascia Removal and Installation
5. Enable the SIR System. SIR Disabling and Enabling
