Front Side Door Window Switch Replacement - Right Side

Removal Procedure

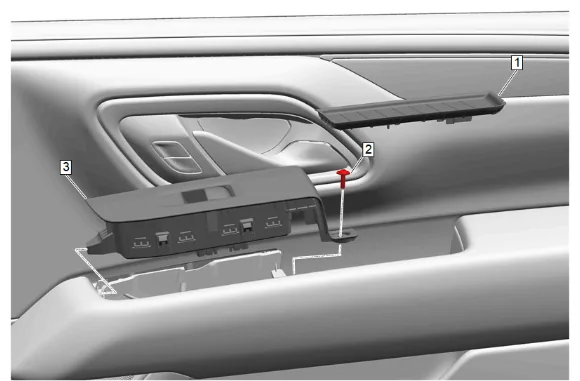

Front Side Door Window Switch Replacement - Right Side — figure 1

1. Front Side Door Armrest Pull Cup Bolt Cap (1) » Remove
2. Front Side Door Trim Bolt (2) » Remove
3. Using a flat bladed plastic trim tool, start at the rear of the front side door accessory switch mount plate (3) and gently insert trim tool to lift the front side door armrest switch mount plate from the door trim.
4. Rotate the front side door accessory switch mount plate (3) up and rearward to unhook the front retaining feature.
5. Disconnect the electrical connectors.
6. Front Side Door Accessory Switch Mount Plate - Passenger Side (3) » Remove

Front Side Door Window Switch Replacement - Right Side — figure 2

7. Release the switch (1)  from the switch mount plate by depressing the tabs along each side of the switch.

8. Front Side Door Window Switch - Right Side (1) » Remove Installation Procedure

9. Front Side Door Window Switch - Right Side (1) » Install

10. Connect the electrical connectors.

11. Rotate the front side door accessory switch mount plate (3) up and forward to hook the front retaining feature.

12. Front Side Door Accessory Switch Mount Plate - Passenger Side (3) » Install

Caution

Refer to Fastener Caution.

5. Front Side Door Trim Bolt (2) » Install and tighten — Fastener Specifications
6. Front Side Door Armrest Pull Cup Bolt Cap (1) » Install
