Multimedia Receptacle Replacement (without DCK)

Removal Procedure

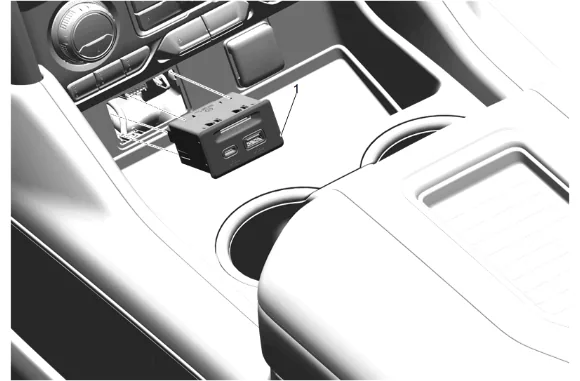

Multimedia Receptacle Replacement (without DCK) — figure 1

1. Using a suitable plastic trim tool, release the retaining tabs.

2. Disconnect the electrical connector.

3. Multimedia Receptacle (1) » Remove Installation Procedure

4. Connect the electrical connector.

5. Multimedia Receptacle (1) » Install
