Cylinder Head and Components

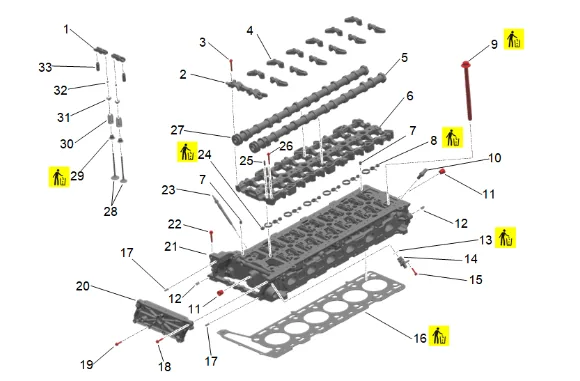

Cylinder Head and Components — figure 1

(1) Valve Rocker Arm [24x] (2) Camshaft Bearing Rear Cap (3) Camshaft Bearing Cap Bolt [28x] (4) Camshaft Bearing Cap (5) Exhaust Camshaft (6) Camshaft Carrier (7) Camshaft Housing Cover Locating Pin [2x] (8) Camshaft Housing Gasket [5x] (9) Cylinder Head Bolt [14x] (10) Cylinder Head Temperature Sensor (11) Cylinder Head Core Hole Plug [2x] (12) Engine Lift Bracket Retainer [2x] (13) Camshaft Position Sensor Seal (14) Camshaft Position Sensor (15) Camshaft Position Sensor Bolt (16) Cylinder Head Gasket (17) Engine Front Cover Locating Pin [2x] (18) Timing Chain Cover Bolt [4x] (19) Timing Chain Cover Bolt [2x] (20) Timing Chain Upper Cover (21) Cylinder Head (22) Cylinder Head Bolt [3x] (23) Diesel Engine Combustion Air Heater Glow Plug [6x] (24) Camshaft Housing Gasket (25) Camshaft Housing Cover Locating Pin [2x] (26) Camshaft Housing Bolt [16x] (27) Intake Camshaft (28) Intake Valve [12x] /Exhaust Valve [12x] (29) Valve Stem Oil Seal [24x] (30) Valve Spring [24x] (31) Valve Spring Retainer [24x] (32) Valve Stem Key [48x] (33) Hydraulic Valve Lash Adjuster [24x]
