Sunroof Sunshade Motor Replacement (Short Wheel Base)

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. Removal Procedure

1. Disable the SIR system. SIR Disabling and Enabling

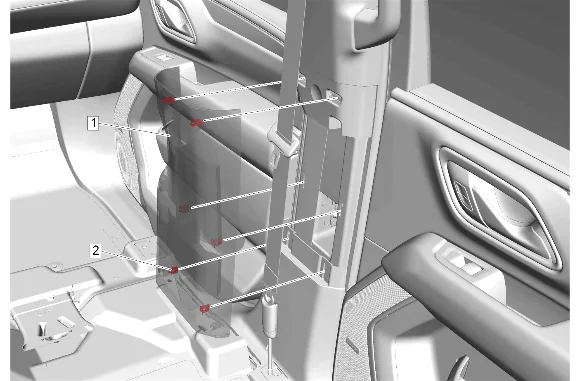

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 1

2. Move the front seat fully forward.
3. Use a flat bladed plastic tool between the center pillar center trim panel (1) and the center pillar upper trim panel to disengage the upper retaining clips (2).
4. Pull from both sides of the center pillar center trim panel (1) to release the middle and lower retaining clips (2).
5. Center Pillar Center Trim Panel (1) » Remove

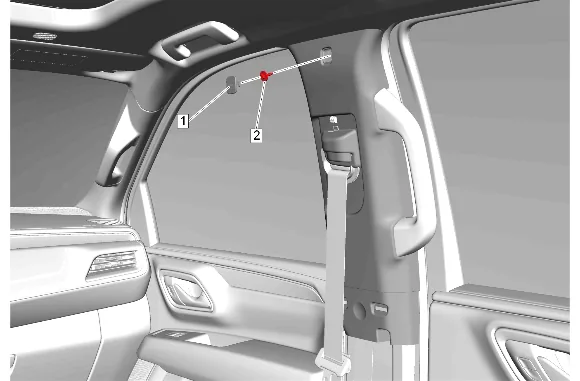

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 2

6. Center Pillar Upper Trim Panel Bolt Cap (1) » Remove
7. Center Pillar Upper Garnish Molding Bolt (2) » Remove

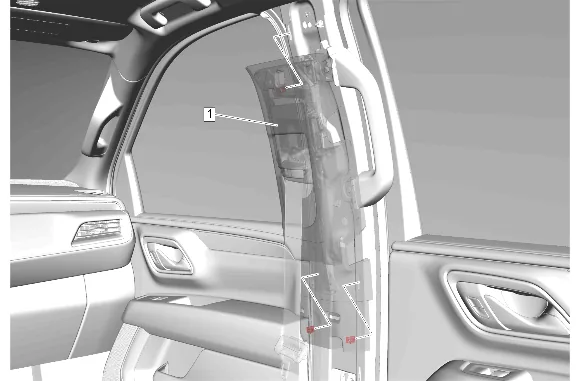

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 3

8. Pull the center pillar upper trim panel (1) toward the inside of the vehicle to disengage the retaining clips.
9. Center Pillar Upper Trim Panel (1) » Reposition

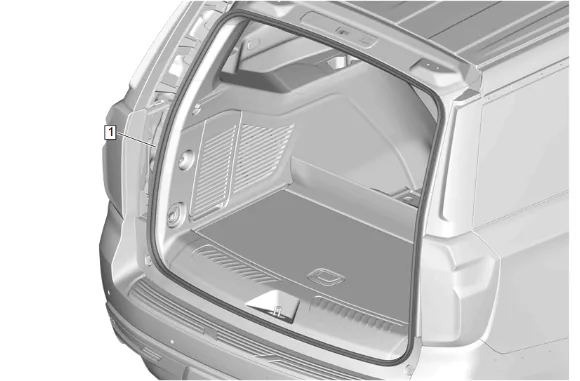

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 4

10. Liftgate Weatherstrip (1) » Reposition

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 5

11. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
12. Quarter Window Trim Finish Panel Bolt (2) » Remove

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 6

13. Using a flat-bladed plastic trim tool, release the retaining clips.
14. Body Lock Pillar Upper Trim Panel (1) » Reposition

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 7

15. Using a flat-bladed plastic trim tool, release the retaining clips.
16. Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.

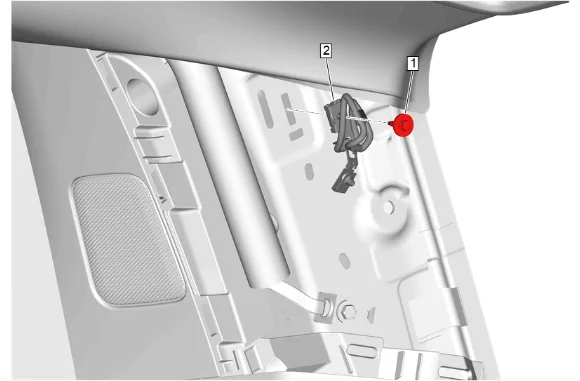

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 8

17. Body Side Rear Window Garnish Molding Bolt (1) » Remove
18. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Remove

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 9

19. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 10

20. Using a flat-bladed plastic trim tool, release the retaining clips.
21. Body Rear Corner Upper Garnish Molding (1) » Reposition

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 11

Note

Left side show, right side similar.

22. Place the coat hook (2) in the open position.
23. Coat Hook Bolt (1) » Remove [2x]
24. Coat Hook (2) » Remove [2x]

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 12

25. Using a suitable plastic trim tool, release the retaining tabs on the rear seat position center reading and courtesy lamp (1).

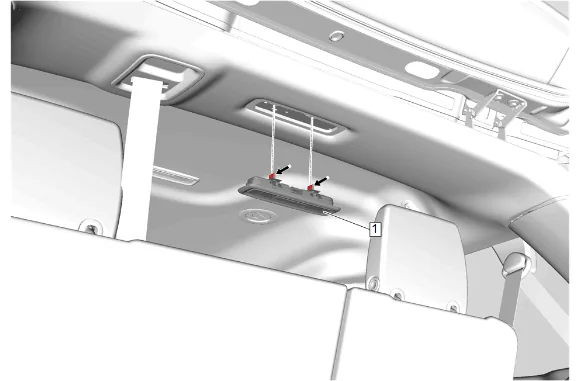

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 13

26. Using a suitable plastic trim tool, release the retaining tabs on the cargo center courtesy lamp  (1).

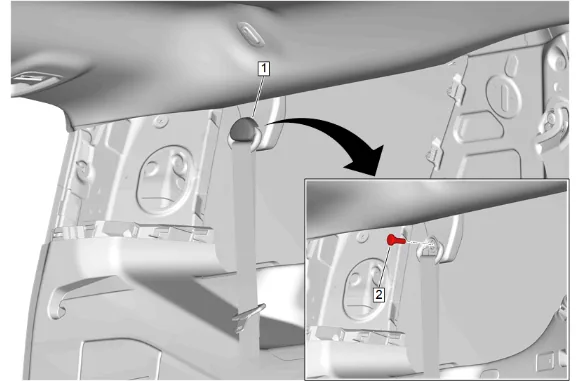

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 14

Note

Left side show, right side similar.

27. 3rd Row Seat Belt Guide Cover (1) » Open
28. Rear Seat Belt Guide Bolt (2) » Remove

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 15

Note

Left side show, right side similar.

29. 3rd Row Seat Belt Guide (1) » Reposition
30. Using a suitable trim tool, gently pry and pull downwards on the rear seat belt opening bezel  (2) to release the retaining clip.
31. Rear Seat Belt Opening Bezel (2) » Remove

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 16

32. Using a suitable plastic trim tool, release the retaining tabs.
33. Rear Seat Center Belt Opening Bezel - 3rd Row Seat (1) » Remove
34. Feed the 3rd row seat center belt through the rear seat center belt opening bezel (1).

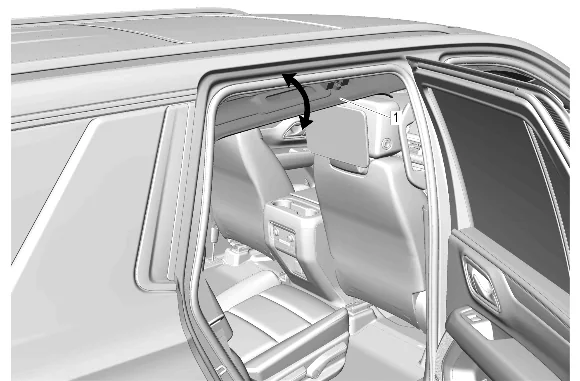

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 17

35. Lower the right rear section of the headlining trim panel (1).

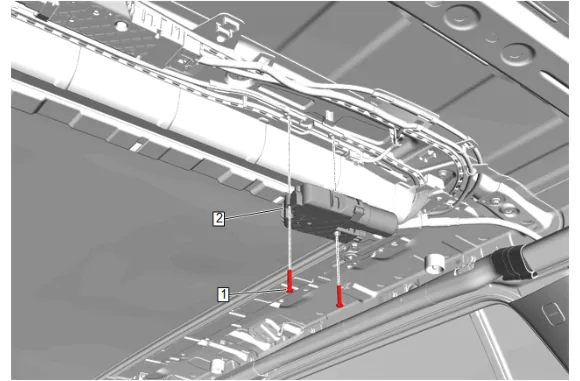

Sunroof Sunshade Motor Replacement (Short Wheel Base) — figure 18

36. Disconnect the electrical connector.

37. Sunroof Actuator Motor Bolt (1) » Remove [2x]

38. Sunroof Sunshade Motor (2) » Remove Installation Procedure

39. Sunroof Sunshade Motor (2) » Install

40. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 2.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 2.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 2.3. Remove loose debris from internal and external threads using compressed air. 2.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

Caution

Refer to Fastener Caution.

3. Sunroof Actuator Motor Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Connect the electrical connector.

5. Install the right rear section of the headlining trim panel (1).

6. Feed the 3rd row seat center belt through the rear seat center belt opening bezel (1).

7. Rear Seat Center Belt Opening Bezel - 3rd Row Seat (1) » Install

Note

Left side show, right side similar.

8. Rear Seat Belt Opening Bezel (2) » Install
9. 3rd Row Seat Belt Guide (1) » Install

Note

Left side show, right side similar.

10. Rear Seat Belt Guide Bolt (2) » Install and tighten — Fastener Specifications

11. 3rd Row Seat Belt Guide Cover (1) » Close

12. Apply pressure upward on the cargo center courtesy lamp (1) to engage the retaining tabs.

13. Apply pressure upward on the rear seat position center reading and courtesy lamp (1) to engage the retaining tabs.

Note

Left side show, right side similar.

14. Coat Hook (2) » Install [2x]

15. Coat Hook Bolt (1) » Install and tighten [2x] — Fastener Specifications

16. Body Rear Corner Upper Garnish Molding (1) » Install

17. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

18. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Install

19. Body Side Rear Window Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

Note

Position the body side rear window garnish molding tether in the same position as before the molding removal.

20. Body Side Rear Window Garnish Molding (1) » Install

21. Body Lock Pillar Upper Trim Panel (1) » Install

22. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

23. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

24. Liftgate Weatherstrip (1) » Reposition

25. Center Pillar Upper Trim Panel (1) » Install

26. Center Pillar Upper Garnish Molding Bolt (2) » Install and tighten — Fastener Specifications

27. Center Pillar Upper Trim Panel Bolt Cap (1) » Install

28. Align 6 retaining clips (2) with the upper and lower trim panels.

29. Center Pillar Center Trim Panel (1) » Install

30. Enable the SIR System. SIR Disabling and Enabling

31. Perform the necessary initialization procedure. Sunroof/Sunshade Motor Initialization
