Bosch Connectors (ECM)

Wiring Systems and Power Management | Diagnostic Information and Procedures | Document ID: 5207142 Special Tools EL-38125-550 Terminal Release Tool Kit EL-38125-580 Terminal Release Tool Kit J-38125-213 Terminal Release Tool J-38125-556 Terminal Release Tool For equivalent regional tools, refer to Special Tools. Terminal Removal Procedure

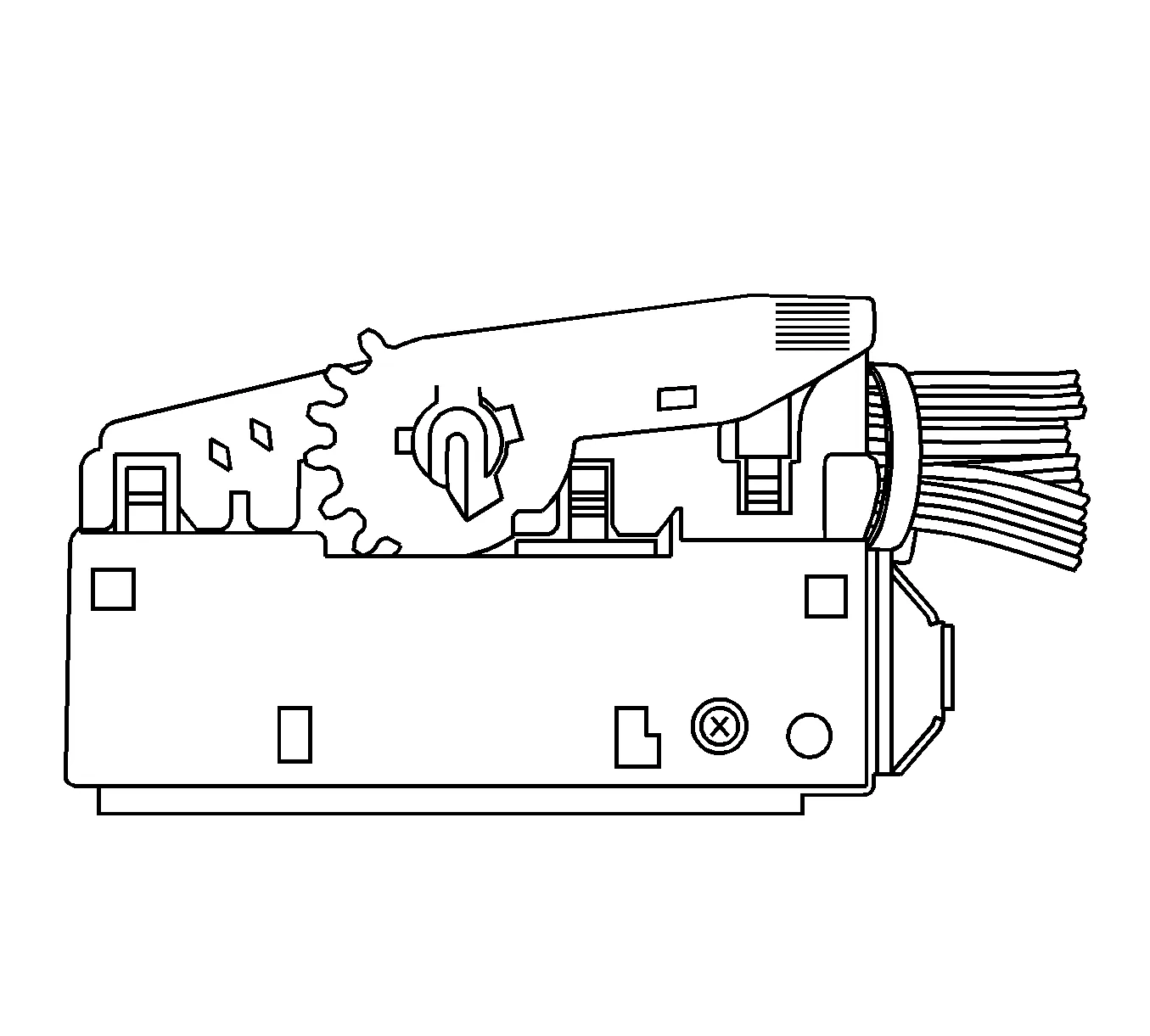

Bosch Connectors (ECM) — figure 1

1. Locate the assist lever on the top of the connector. Move the assist lever to the forward position.

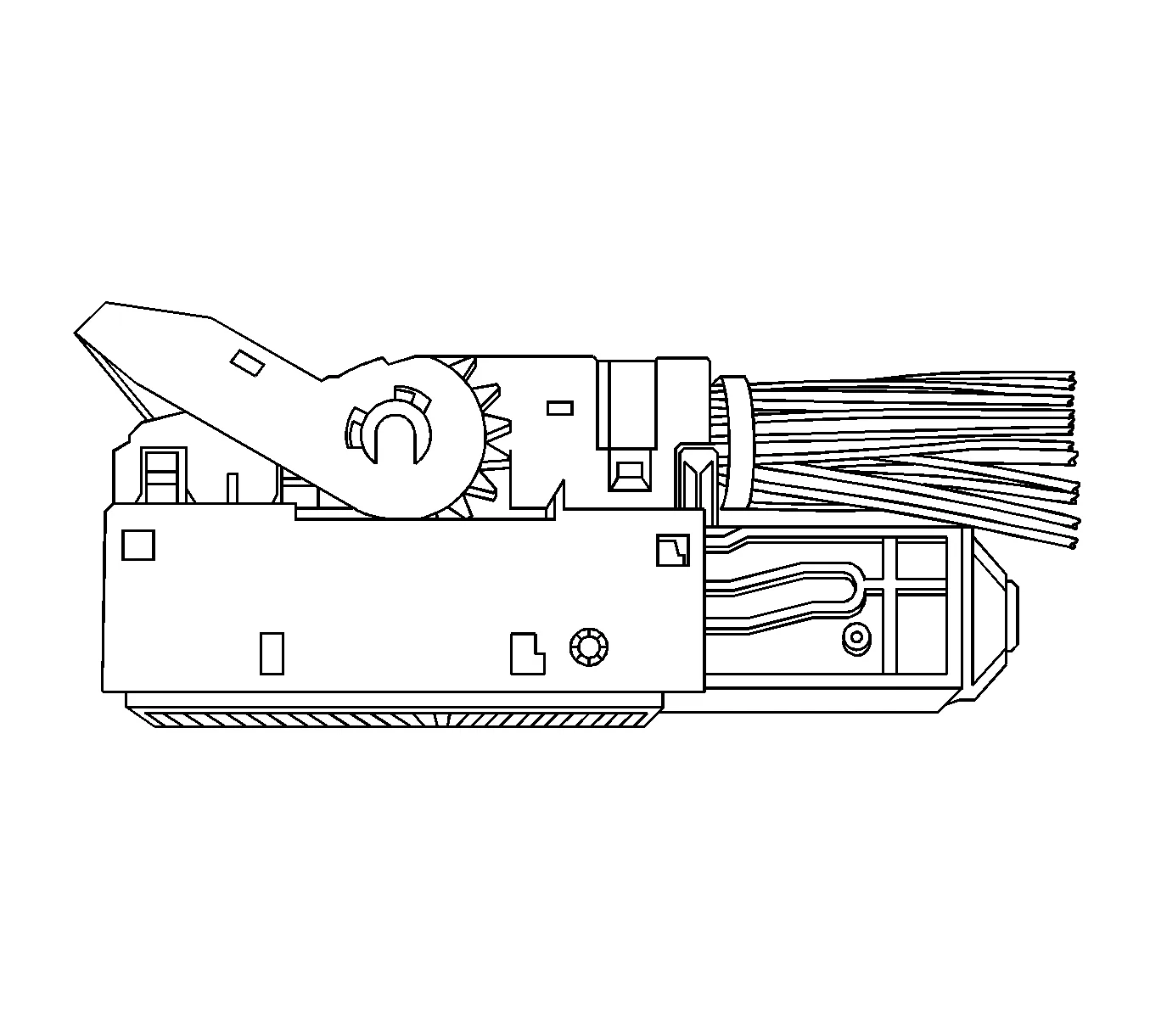

Bosch Connectors (ECM) — figure 2

2. Disconnect the connector from the component.
3. Locate the dress cover locking tabs at the corners of the connector. Use a small flat-blade tool to release the locking tabs and remove the dress cover.

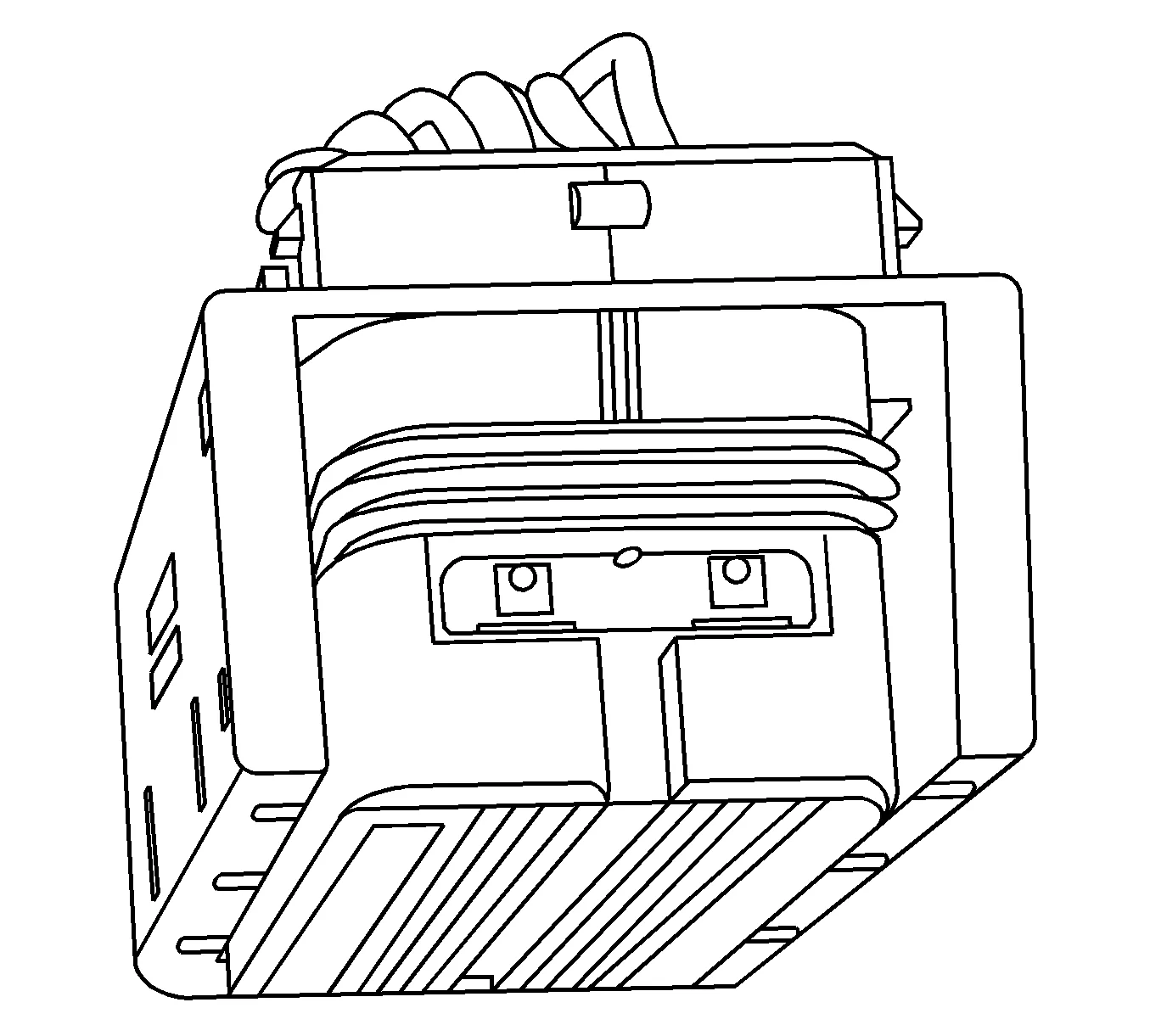

Bosch Connectors (ECM) — figure 3

4. The terminal positive assurance (TPA) is located in the front of the connector.

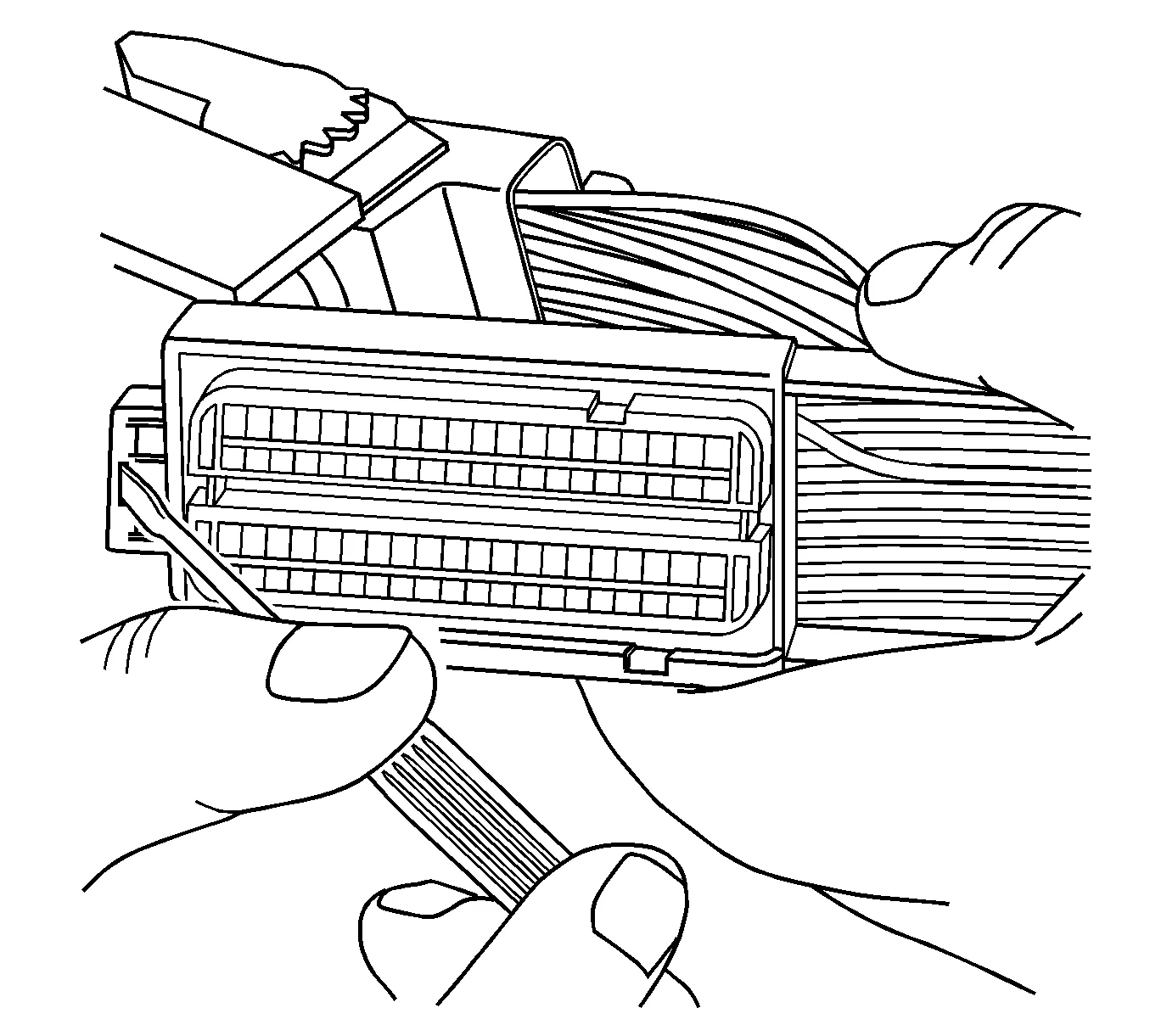

Bosch Connectors (ECM) — figure 4

5. Use a small flat-blade tool to remove TPA from the connector.

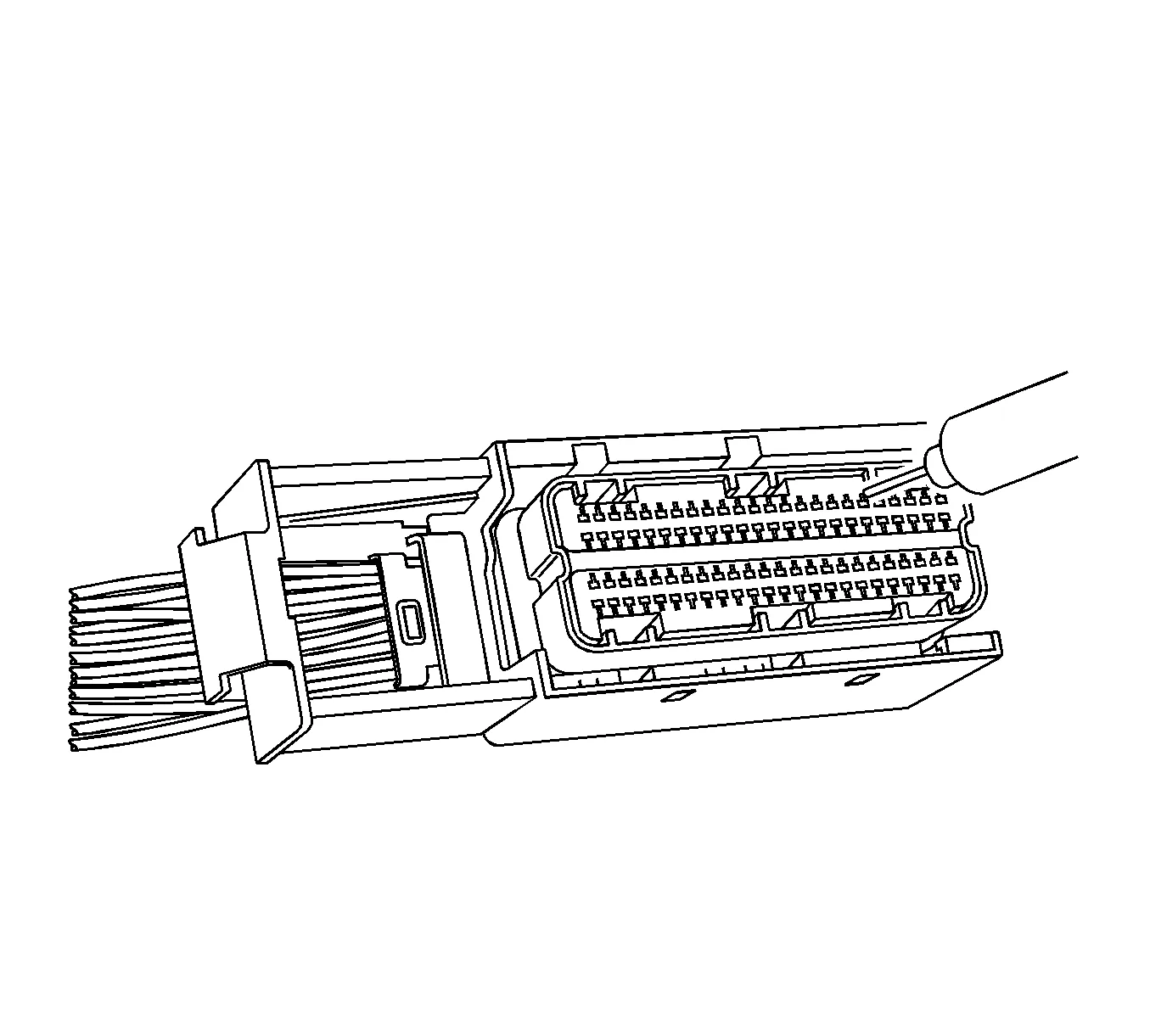

Bosch Connectors (ECM) — figure 5

6. Use the J-38125-213 or the J-38125-556 tool to release the terminals by inserting the tool into the terminal release cavity.
7. While holding the removal tool in place, gently pull the wire out of the back of the connector. Always remember never use force when pulling a terminal out of a connector.
8. Repair the terminal by following the Repairing Connector Terminals procedure.
9. Insert the repaired terminal back into the cavity. Repeat the diagnostic procedure to verify the repair and reconnect the connector bodies.

Note

Ensure that the dress cover and connector body are both in the released position before reassembling. Failure to do so may cause damage to the connector and component.

10. Reconnect the connector bodies.
