Instrument Panel Wiring Harness Junction Block Replacement

Removal Procedure

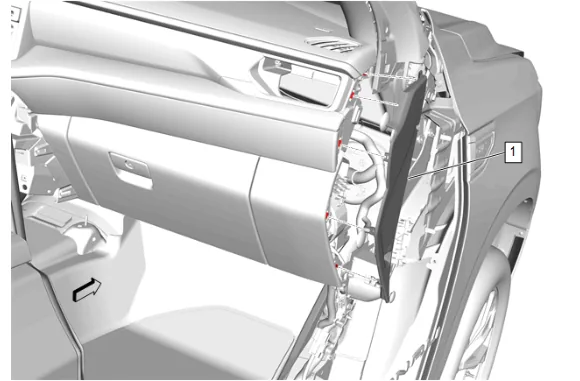

Instrument Panel Wiring Harness Junction Block Replacement — figure 1

1. Disengage the instrument panel fuse block access hole cover retainers and remove the instrument panel fuse block access hole cover (1).

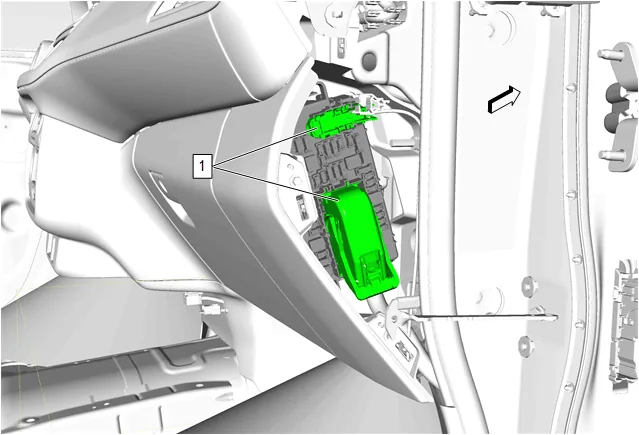

Instrument Panel Wiring Harness Junction Block Replacement — figure 2

2. Instrument Panel Wiring Harness Connector (1) » Remove [2x]

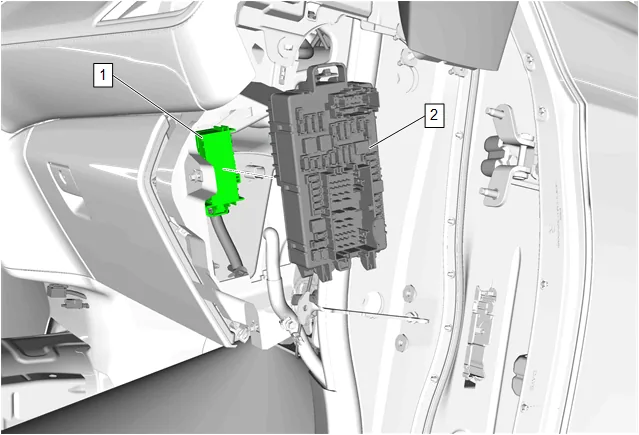

Instrument Panel Wiring Harness Junction Block Replacement — figure 3

3. Release the instrument panel wiring harness junction block retainers and reposition the instrument panel wiring harness junction block (2) .

4. Remove the retainer attached to the body wiring harness connector.

5. Body Wiring Harness Connector (1) » Disconnect

6. Instrument Panel Wiring Harness Junction Block (2) » Remove Installation Procedure

7. Body Wiring Harness Connector (1) » Connect

8. Install the retainer attached to the body wiring harness connector.

9. Instrument Panel Wiring Harness Junction Block (2) » Install

10. Instrument Panel Wiring Harness Connector (1) » Connect [2x]

11. Engage the instrument panel fuse block access hole cover retainers and install the instrument panel fuse block access hole cover (1).
