Fastener Specifications (1)

Fastener Specifications Table 1: Front Brake Caliper Overhaul (Inboard J55) Table 2: Front Brake Caliper Overhaul (Inboard J61) Table 3: Front Brake Caliper Overhaul (Outboard J55) Table 4: Front Brake Caliper Overhaul (Outboard J61) Table 5: Front Brake Corner (J55) Table 6: Front Brake Corner (J61) Table 7: Front Brake Rotor Bolt Table 8: Rear Brake Caliper and Bracket Table 9: Rear Brake Caliper Overhaul Table 10: Rear Brake Rotor Bolt

Fastener Specifications (1) — figure 1

Front Brake Caliper Overhaul (Inboard J55)

	Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Front Brake Caliper Piston Seal [3x]	Yes	—	—	Front Brake Caliper Overhaul
	2	Front Brake Caliper Piston Boot [3x]	Yes	—	—	Front Brake Caliper Overhaul

Fastener Specifications (1) — figure 2

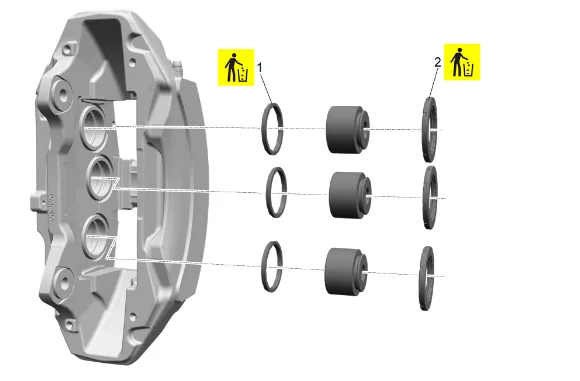

Front Brake Caliper Overhaul (Inboard J61)

Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Brake Caliper Piston Seal [2x]	Yes	—	—	Front Brake Caliper Overhaul
2	Front Brake Caliper Piston Boot [2x]	Yes	—	—	Front Brake Caliper Overhaul

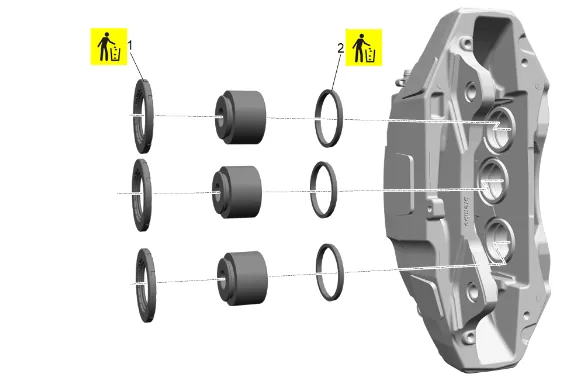

Fastener Specifications (1) — figure 3

Front Brake Caliper Overhaul (Outboard J55)

Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Brake Caliper Piston Boot [3x]	Yes	—	—	Front Brake Caliper Overhaul
2	Front Brake Caliper Piston Seal [3x]	Yes	—	—	Front Brake Caliper Overhaul

Fastener Specifications (1) — figure 4

Front Brake Caliper Overhaul (Outboard J61)

Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Brake Caliper Piston Boot [2x]	Yes	—	—	Front Brake Caliper Overhaul
2	Front Brake Caliper Piston Seal [2x]	Yes	—	—	Front Brake Caliper Overhaul

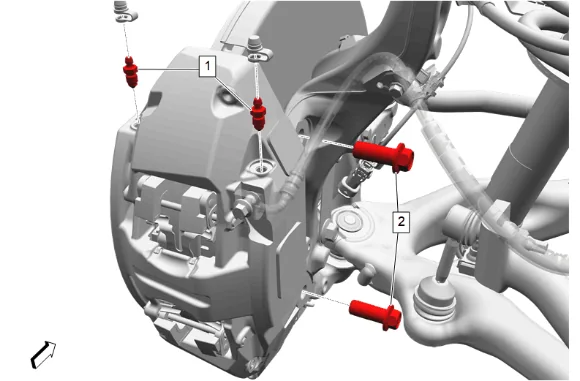

Fastener Specifications (1) — figure 5

Front Brake Corner (J55)

Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Brake Caliper Bleeder Valve [2x]	—	—	10 Y (89 lb in)	Front Brake Caliper Bleeder Valve Replacement
2	Front Brake Caliper Bolt [2x]	—	Yes	First Pass: 50 Y (37 lb ft) Final Pass: 30 - 45 degrees	Front Brake Caliper Replacement

Fastener Specifications (1) — figure 6

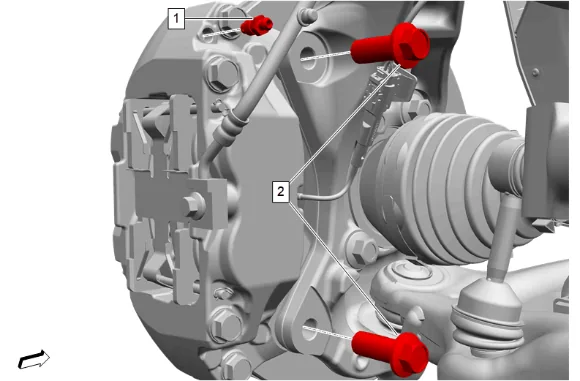

Front Brake Corner (J61)

Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Brake Caliper Bleeder Valve	—	—	10 Y (89 lb in)	Front Brake Caliper Bleeder Valve Replacement
2	Front Brake Caliper Bolt [2x]	—	Yes	First Pass: 50 Y (37 lb ft) Final Pass: 30 - 45 degrees	Front Brake Caliper Replacement

Fastener Specifications (1) — figure 7

Front Brake Rotor Bolt

Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Brake Rotor Bolt	—	—	22 Y (16 lb ft)	Front Brake Rotor Replacement

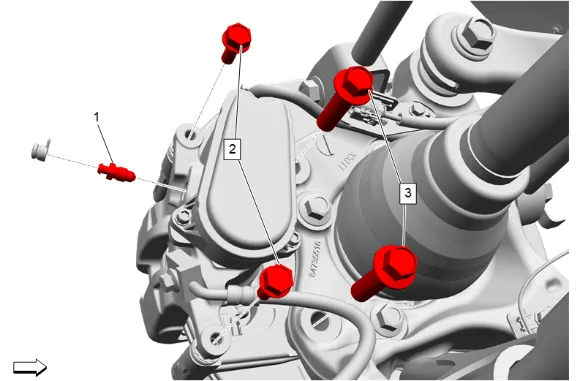

Fastener Specifications (1) — figure 8

Rear Brake Caliper and Bracket

Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Brake Bleeder Valve	—	—	17 Y (13 lb ft)	Rear Brake Bleeder Valve Replacement
2	Rear Brake Caliper Guide Pin Bolt [2x]	—	—	40 Y (30 lb ft)	Rear Brake Caliper Replacement
3	Rear Brake Caliper Bracket Bolt [2x]	—	Yes	First Pass: 150 Y (111 lb ft) Final Pass: 15 - 30 degrees	Rear Brake Caliper Bracket Replacement

Fastener Specifications (1) — figure 9

Rear Brake Caliper Overhaul

Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Brake Caliper Piston Boot	Yes	—	—	Rear Brake Caliper Overhaul
2	Rear Brake Caliper Piston Seal	Yes	—	—	Rear Brake Caliper Overhaul

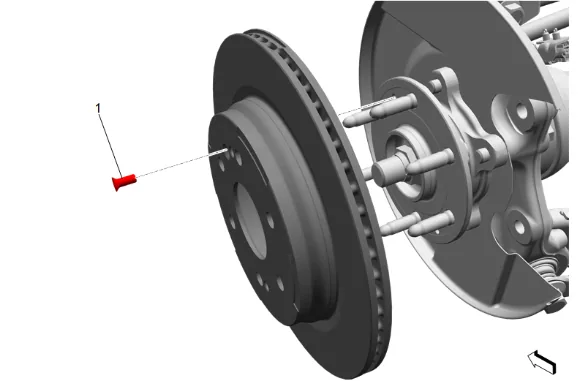

Fastener Specifications (1) — figure 10

Rear Brake Rotor Bolt

Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Brake Rotor Bolt	—	—	22 Y (16 lb ft)	Rear Brake Rotor Replacement
