Fuel Pump Fuel Feed Hose Replacement

Removal Procedure

1. Turn OFF the engine for 30 seconds before proceeding. This will purge the fuel pressure from the complete fuel system.
2. Front Wheelhouse Liner - Right Side (3) » Remove — Front Wheelhouse Liner Replacement

Fuel Pump Fuel Feed Hose Replacement — figure 1

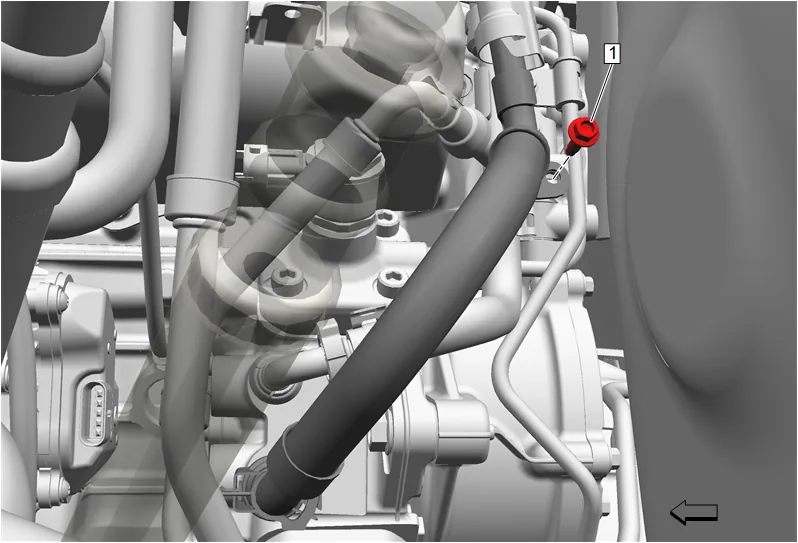

3. Fuel Feed Pipe Clip Bolt (1) » Remove

Fuel Pump Fuel Feed Hose Replacement — figure 2

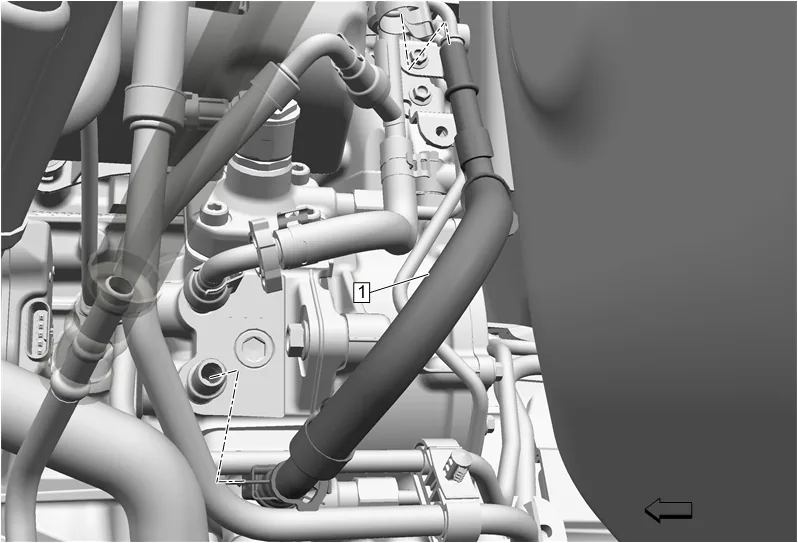

4. Fuel Pump Fuel Feed Hose (1) » Disconnect — Metal Collar Quick Connect Fitting Service

5. Fuel Pump Fuel Feed Hose (1) » Remove Installation Procedure

6. Fuel Pump Fuel Feed Hose (1) » Install

7. Fuel Pump Fuel Feed Hose (1) » Connect — Metal Collar Quick Connect Fitting Service

Caution

Refer to Fastener Caution.

3. Fuel Feed Pipe Clip Bolt (1) » Install and tighten — Fastener Specifications
4. Front Wheelhouse Liner - Right Side (3) » Install — Front Wheelhouse Liner Replacement
5. Prime the fuel system and inspect for leaks. Fuel System Priming
