Tahoe / Yukon Service Manual

Rear Bumper Fascia Molding Replacement

Removal Procedure

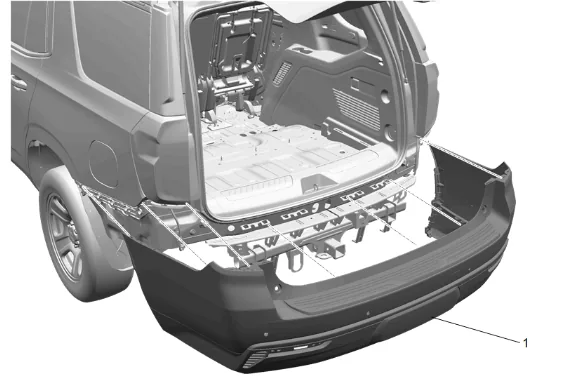

Rear Bumper Fascia Molding Replacement — figure 1
Rear Bumper Fascia Molding Replacement — figure 1
  1. Rear Bumper Fascia (1) » Remove — Rear Bumper Fascia Removal and Installation

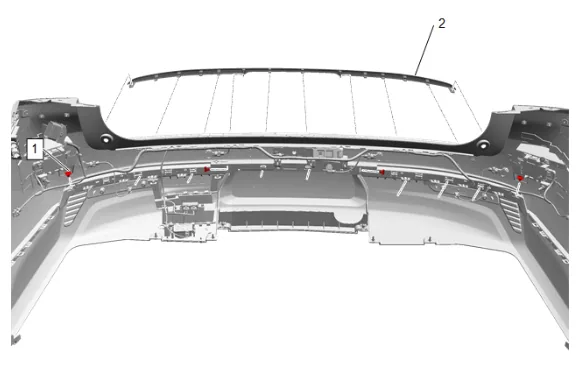

Rear Bumper Fascia Molding Replacement — figure 2
Rear Bumper Fascia Molding Replacement — figure 2

  1. Rear Bumper Fascia Molding Retainer (1) » Remove [4x]

  2. Using the appropriate tool, release the rear bumper fascia lower molding (2). Installation Procedure

  3. Rear Bumper Fascia Molding (2) » Install

  4. Rear Bumper Fascia Molding Retainer (1) » Install [4x]

  5. Rear Bumper Fascia (1) » Install — Rear Bumper Fascia Removal and Installation
