Positive Crankcase Ventilation Foul Air Tube Replacement (L87)

Positive Crankcase Ventilation Foul Air Tube Replacement (L87) Removal Procedure

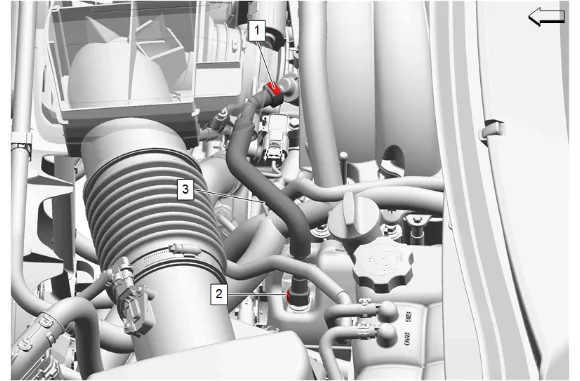

Positive Crankcase Ventilation Foul Air Tube Replacement (L87) — figure 1
Positive Crankcase Ventilation Foul Air Tube Replacement (L87) — figure 1
  1. Positive Crankcase Ventilation Tube Connector (2) @ Positive Crankcase Ventilation Fitting » Disconnect — Plastic Collar Quick Connect Fitting Service
  2. Positive Crankcase Ventilation Tube Connector (1) @ Intake Manifold » Disconnect — Plastic Collar Quick Connect Fitting Service
  3. Positive Crankcase Ventilation Foul Air Tube (3) » Remove Installation Procedure
  1. Positive Crankcase Ventilation Foul Air Tube (3) » Install
  2. Positive Crankcase Ventilation Tube Connector (1) @ Intake Manifold » Connect — Plastic Collar Quick Connect Fitting Service
  3. Positive Crankcase Ventilation Tube Connector (2) @ Positive Crankcase Ventilation Fitting » Connect — Plastic Collar Quick Connect Fitting Service
