Body Wiring Harness Junction Block Replacement

Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

Body Wiring Harness Junction Block Replacement — figure 1

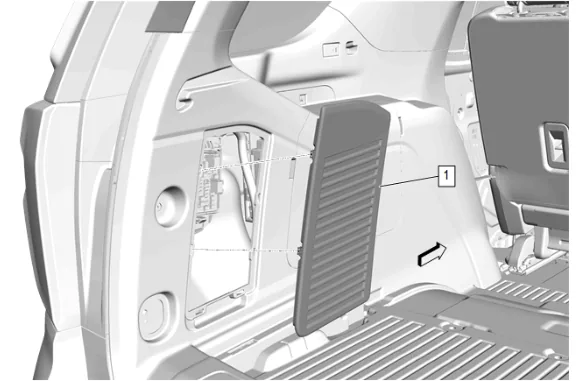

2. Quarter Stowage Pocket Door (1) » Remove

Body Wiring Harness Junction Block Replacement — figure 2

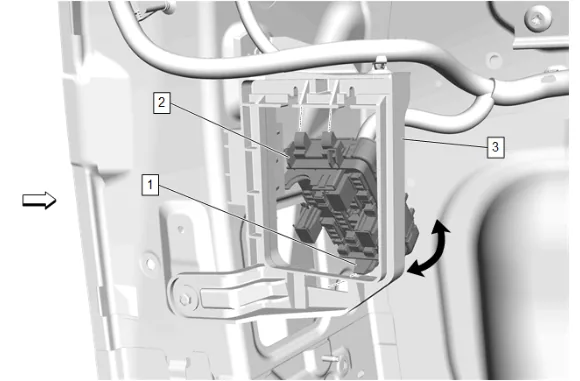

3. Disengage the retaining tab (1) and rotate the body wiring harness junction block (2), away from the body wiring harness junction block bracket (3).

Body Wiring Harness Junction Block Replacement — figure 3

4. Rotate the release handles (1) and disconnect the electrical connectors (3).

5. Body Wiring Harness Junction Block (2) » Remove Installation Procedure

6. Rotate the release handles (1) and engage the electrical connectors (3) into the body wiring harness junction block (2).

7. Install the body wiring harness junction block (2) and engage the retaining tab (1) into the body wiring harness junction block bracket (3).

8. Quarter Stowage Pocket Door (1) » Install

9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
