Tahoe / Yukon Service Manual

Cargo Center Courtesy Lamp Replacement

Removal Procedure

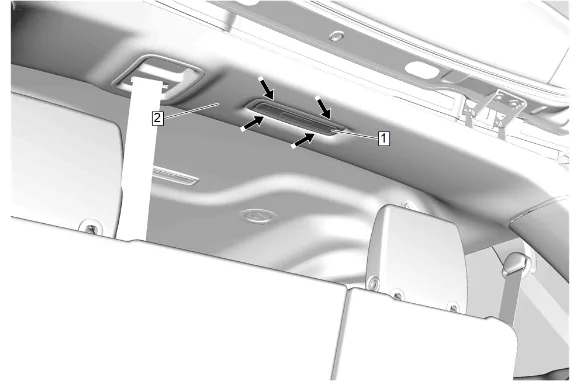

Cargo Center Courtesy Lamp Replacement — figure 1
Cargo Center Courtesy Lamp Replacement — figure 1
  1. Insert a suitable flat-bladed plastic trim tool between the cargo center courtesy lamp (1) and headlining trim panel (2).
  2. Separate the cargo center courtesy lamp (1) from the headlining trim panel (2).

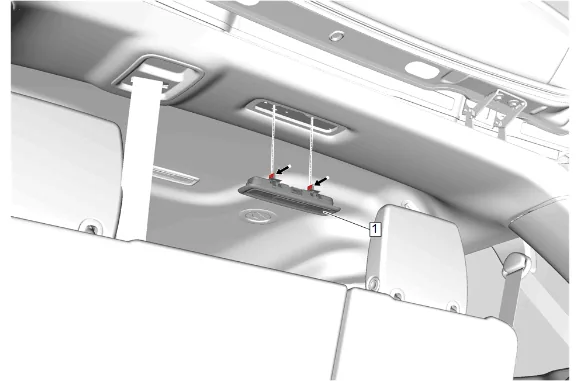

Cargo Center Courtesy Lamp Replacement — figure 2
Cargo Center Courtesy Lamp Replacement — figure 2

  1. Pull downward to release the retaining tabs.

  2. Cargo Center Courtesy Lamp (1) » Remove

  3. Disconnect the electrical connector. Installation Procedure

  4. Connect the electrical connector.

  5. Cargo Center Courtesy Lamp (1) » Install

  6. Apply pressure upward on the cargo center courtesy lamp (1) to engage the retaining tabs.
