Camshaft Position Actuator Magnet Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5591070 Single Use Fastener / Component Accessory Drive Auxiliary Belt Accessory Drive Primary Belt Camshaft Position Actuator Magnet Gasket Engine Oil Cooler Retainer [2x] Water Pump Gasket [2x] Special Tools EN-51767-2 Universal Stretchy Belt Installer Equivalent regional tools: Special Tools Removal Procedure

1. Drain the cooling system. Cooling System Draining and Filling
2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

Camshaft Position Actuator Magnet Replacement — figure 1

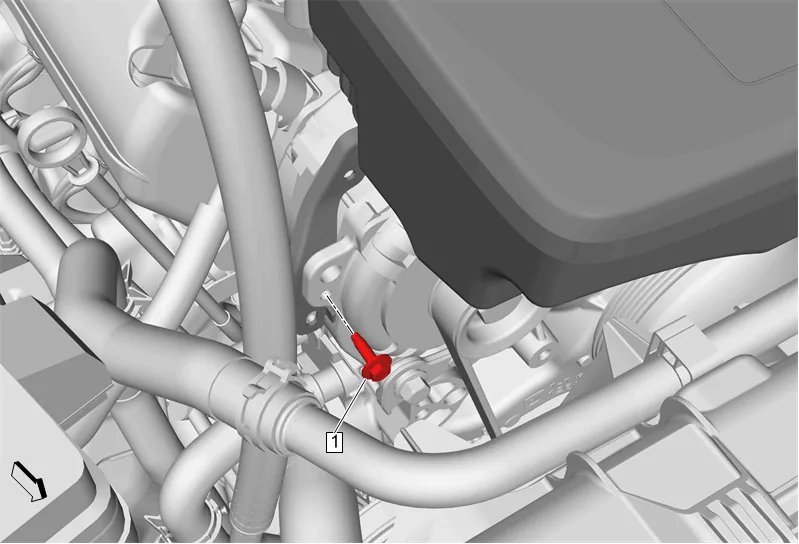

3. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
4. Remove engine wiring harness from air cleaner outlet duct bracket.

Camshaft Position Actuator Magnet Replacement — figure 2

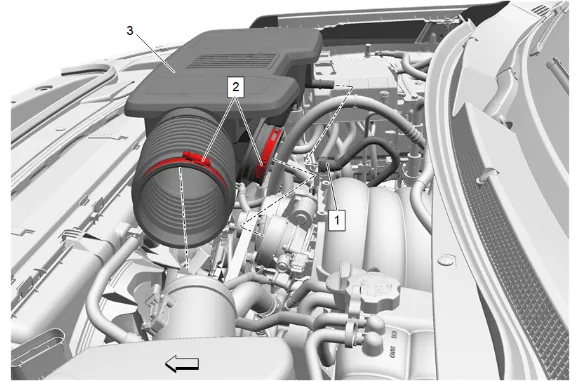

5. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
6. Air Cleaner Outlet Duct Clamp (2) » Loosen [2x]
7. Air Cleaner Outlet Duct (3) » Remove

Camshaft Position Actuator Magnet Replacement — figure 3

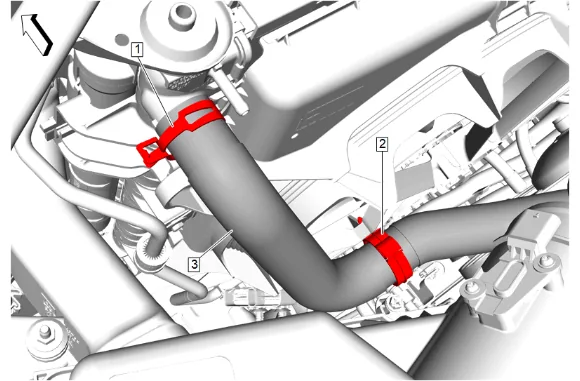

8. Radiator Surge Tank Outlet Hose Clip (2) » Remove [2x]
9. Radiator Surge Tank Outlet Hose (3) » Position aside

Camshaft Position Actuator Magnet Replacement — figure 4

Note

Some components not shown for graphic clarity.

10. Radiator Inlet Hose Clip (2) » Remove

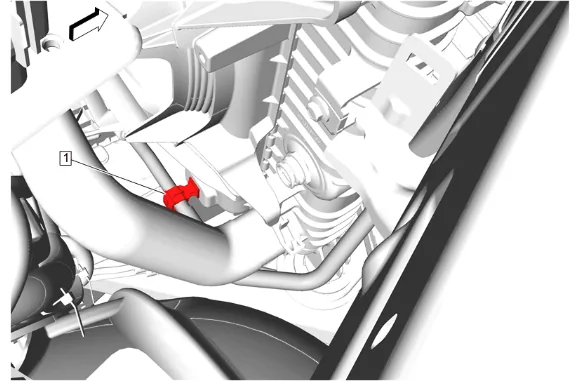

11. Radiator Inlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
12. Radiator Inlet Hose (3) @ Engine Radiator » Remove and position aside

Camshaft Position Actuator Magnet Replacement — figure 5

Note

Some components not shown for graphic clarity.

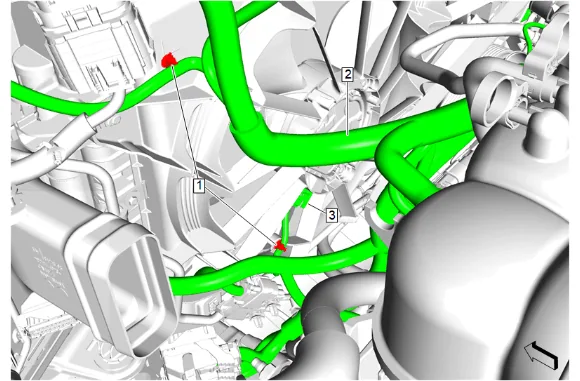

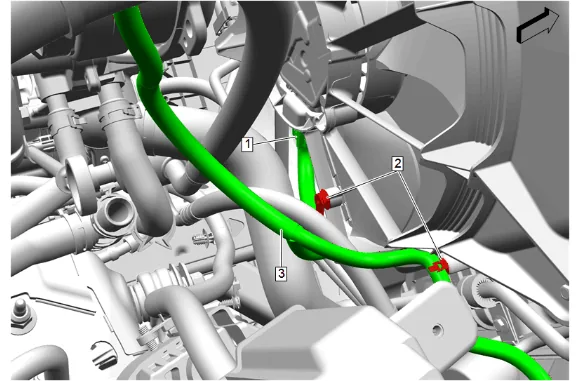

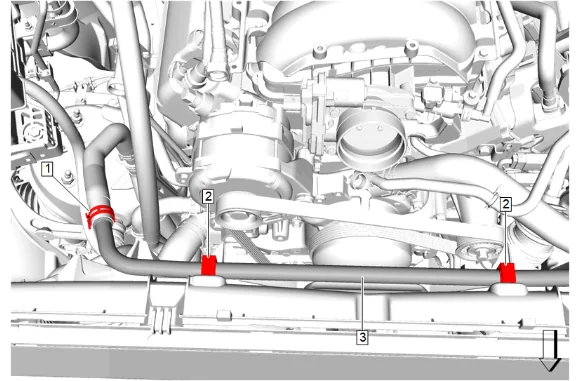

13. Wiring Harness Retainer (1) » Remove [2x]
14. Electrical Connector (3) » Disconnect
15. Wiring Harness (2) » Position aside

Camshaft Position Actuator Magnet Replacement — figure 6

Note

Some components not shown for graphic clarity.

16. Wiring Harness Retainer (2) » Remove [2x]
17. Electrical Connector (1) » Disconnect
18. Wiring Harness (3) » Position aside

Camshaft Position Actuator Magnet Replacement — figure 7

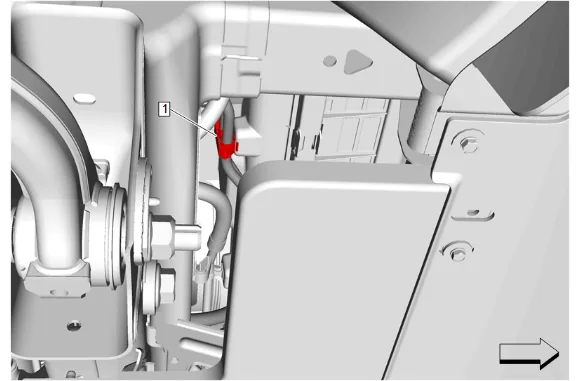

19. Engine Oil Cooler Hose Clip (1) » Release

Camshaft Position Actuator Magnet Replacement — figure 8

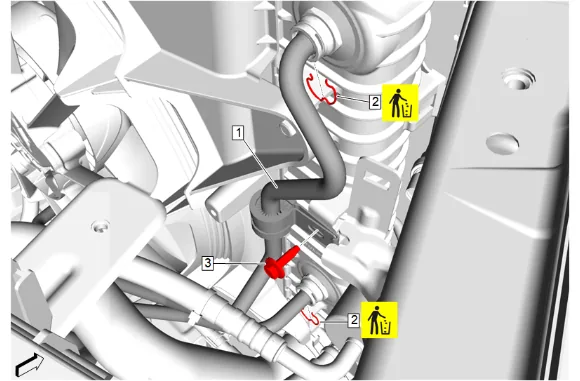

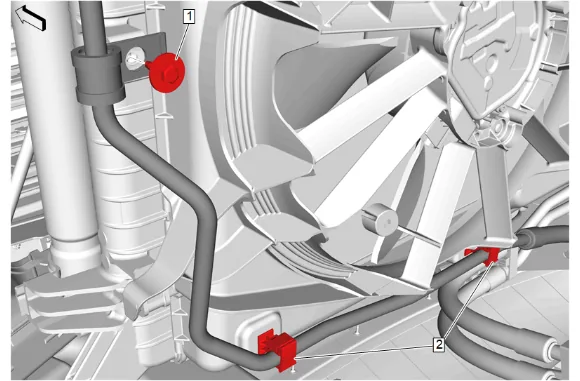

20. Engine Oil Cooler Retainer (2) » Remove and DISCARD [2x]
21. Engine Oil Cooler Pipe Bracket Bolt (3) » Remove
22. Engine Oil Cooler Hose (1) @ Engine Radiator » Remove [2x]
23. Cap the ends of the engine oil cooler hose (1) to prevent contamination.

Camshaft Position Actuator Magnet Replacement — figure 9

24. Transmission Fluid Cooler Pipe Bolt (1) » Remove
25. Transmission Fluid Cooler Pipe Clip (2) » Remove [2x]

Camshaft Position Actuator Magnet Replacement — figure 10

26. Transmission Fluid Cooler Pipe Clip (1) » Release

Camshaft Position Actuator Magnet Replacement — figure 11

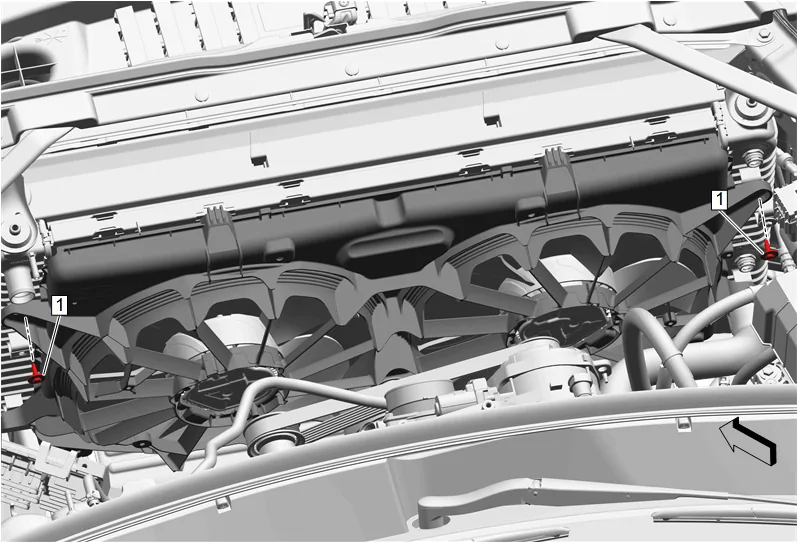

27. Engine Coolant Fan Bracket Bolt (1) » Remove [2x]

Camshaft Position Actuator Magnet Replacement — figure 12

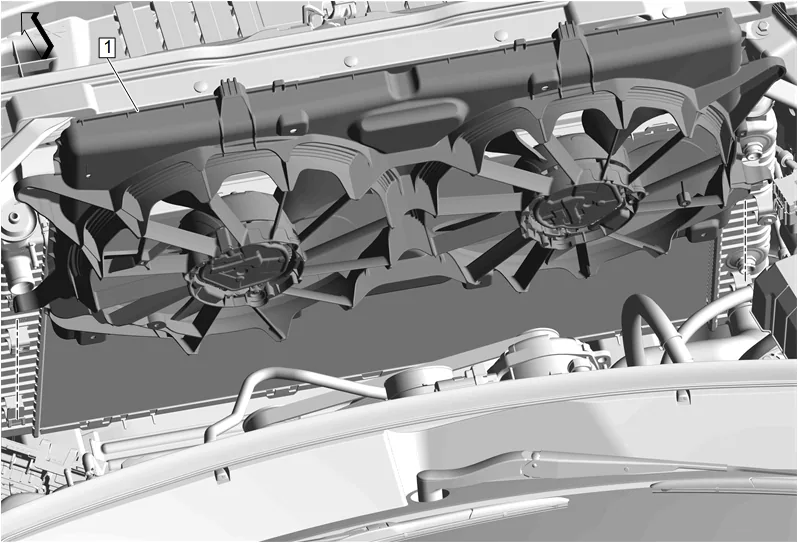

28. Engine Cooler Fan (1) @ Engine Radiator » Remove

Camshaft Position Actuator Magnet Replacement — figure 13

Note

Some components not shown for graphic clarity. The accessory drive primary belt is not reusable.

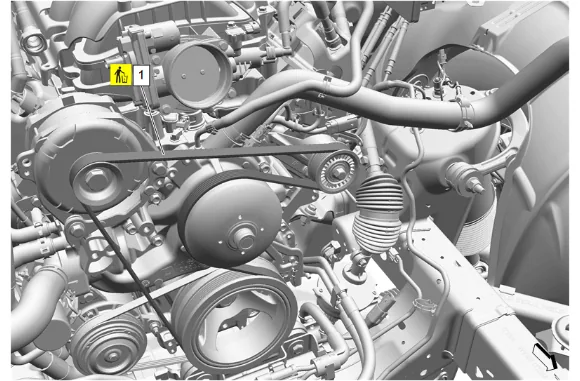

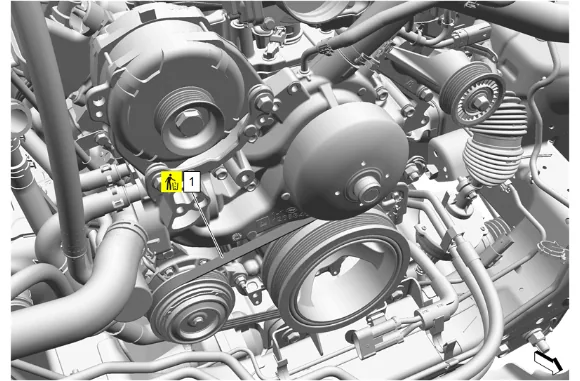

29. Using a suitable tool, cut the accessory drive primary belt (1).
30. Accessory Drive Primary Belt (1) » Remove and DISCARD

Camshaft Position Actuator Magnet Replacement — figure 14

Note

The accessory drive auxiliary belt is not reusable.

31. Using a suitable tool, cut the accessory drive auxiliary belt (1).
32. Accessory Drive Auxiliary Belt (1) » Remove and DISCARD

Camshaft Position Actuator Magnet Replacement — figure 15

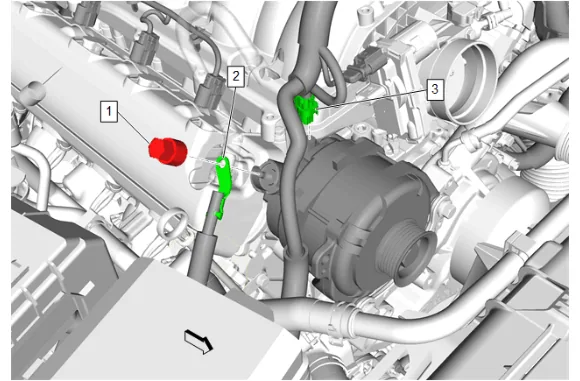

33. Battery Positive Cable Nut (1) » Remove
34. Starter Solenoid Cable (2) » Remove
35. Electrical Connector (3) » Disconnect

Camshaft Position Actuator Magnet Replacement — figure 16

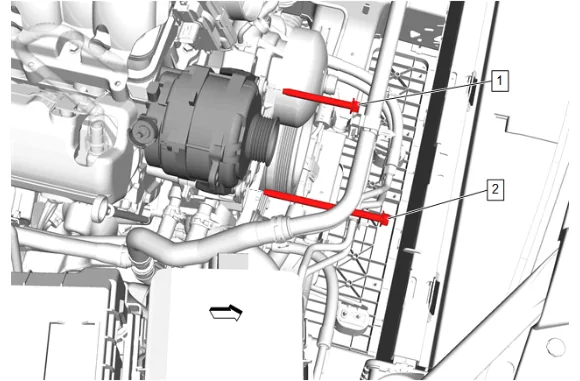

36. Generator Bolt (1) » Remove
37. Generator Bolt (2) » Remove

Camshaft Position Actuator Magnet Replacement — figure 17

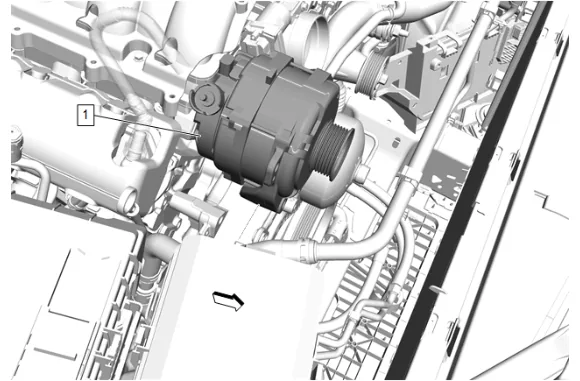

38. Generator (1) » Remove

Camshaft Position Actuator Magnet Replacement — figure 18

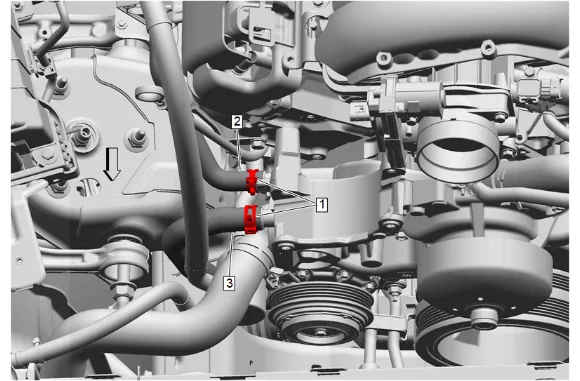

39. Hose Clamp (1) » Disengage [2x] — Hose Clamp Replacement Guidelines - Spring Type
40. Heater Inlet Hose (2) @ Water Pump » Remove
41. Heater Water Auxiliary Pump Hose (3) @ Water Pump » Remove

Camshaft Position Actuator Magnet Replacement — figure 19

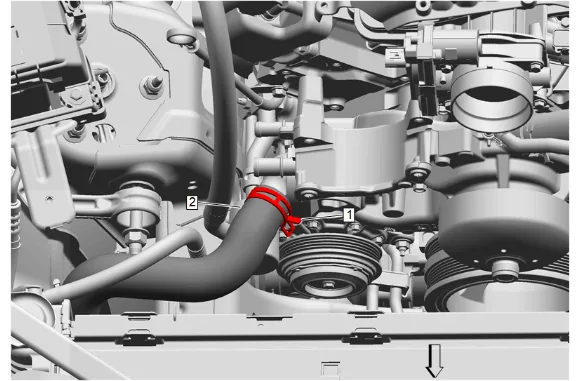

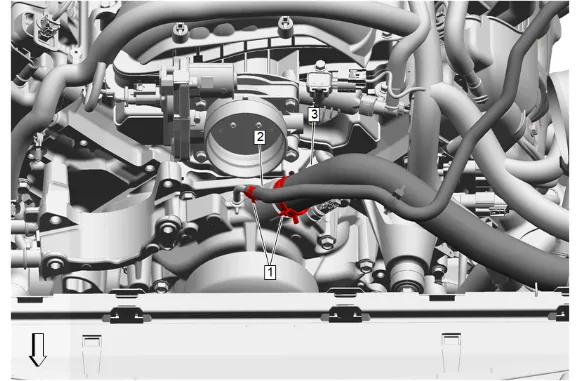

42. Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
43. Radiator Outlet Hose (2) @ Water Pump » Remove

Camshaft Position Actuator Magnet Replacement — figure 20

44. Hose Clamp (1) » Disengage [2x] — Hose Clamp Replacement Guidelines - Spring Type
45. Engine Coolant Air Bleed Hose (2) @ Water Pump » Remove
46. Radiator Inlet Hose (3) @ Water Pump » Remove

Camshaft Position Actuator Magnet Replacement — figure 21

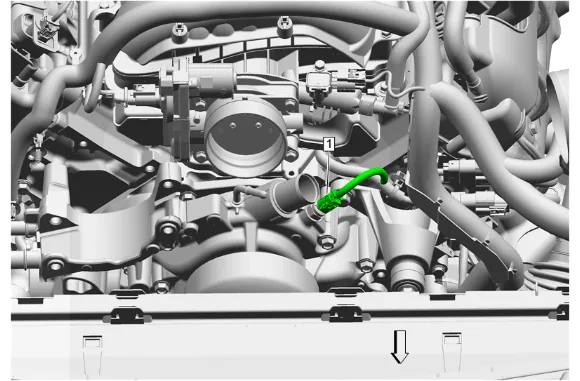

47. Engine Coolant Temperature Sensor Electrical Connector (1) » Disconnect

Camshaft Position Actuator Magnet Replacement — figure 22

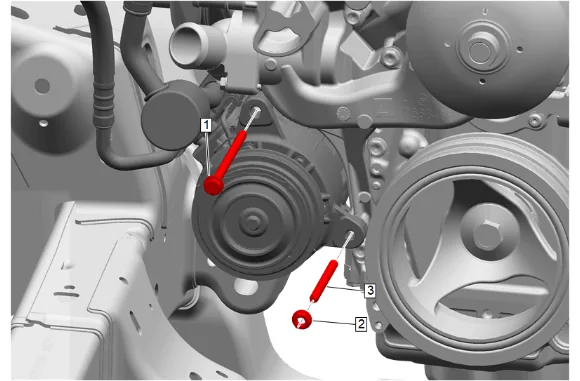

48. Air Conditioning Compressor Bolt (1) » Remove
49. Air Conditioning Compressor Nut (2) » Remove
50. Air Conditioning Compressor Stud (3) » Remove

Camshaft Position Actuator Magnet Replacement — figure 23

Note

It is not necessary to recover and recharge the refrigerant to perform this repair.

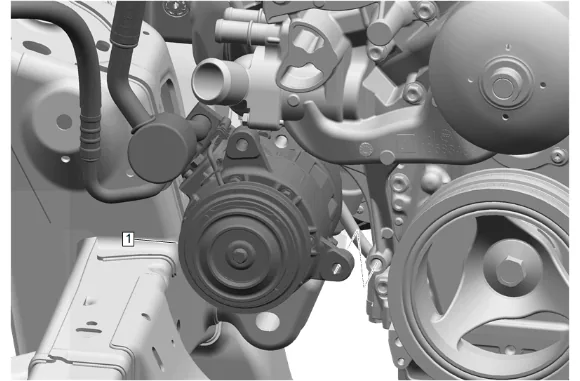

51. Air Conditioning Compressor (1) » Remove and position aside

Camshaft Position Actuator Magnet Replacement — figure 24

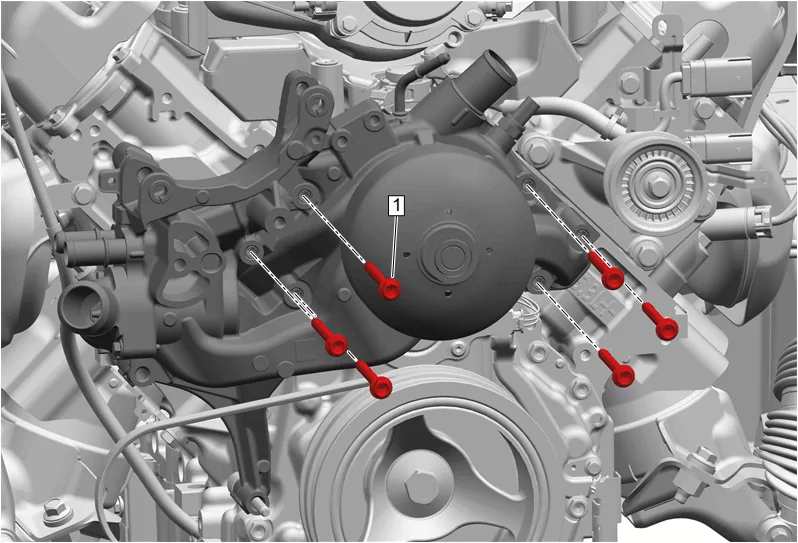

52. Water Pump Bolt (1) » Remove [6x]

Camshaft Position Actuator Magnet Replacement — figure 25

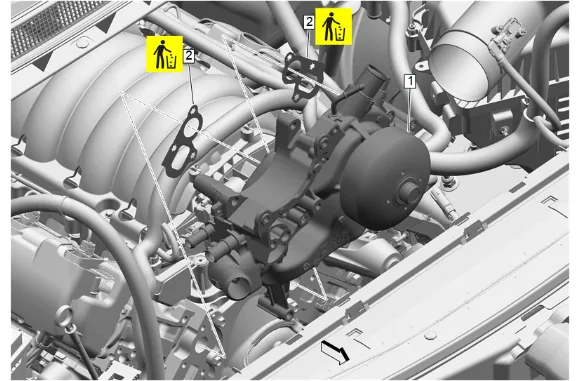

53. Water Pump (1) » Remove
54. Water Pump Gasket (2) » Remove and DISCARD [2x]

Camshaft Position Actuator Magnet Replacement — figure 26

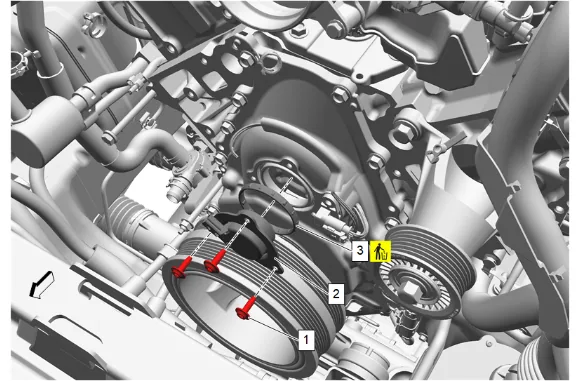

55. Disconnect the camshaft position actuator magnet electrical connector.
56. Camshaft Position Actuator Magnet Bolt (1) » Remove [3x]
57. Camshaft Position Actuator Magnet (2) » Remove
58. Camshaft Position Actuator Magnet Gasket (3) » Remove and DISCARD Cleaning and Inspection Procedure - Required

Camshaft Position Actuator Magnet Replacement — figure 27

Note

If checking the operating range of the camshaft position (CMP) magnet pintle, DO NOT energize the magnet with a 12V power supply. Use steps 2 thru 5 below to check pintle operating range.

1. Inspect the camshaft position (CMP) actuator magnet for the following conditions: 1.1. A damaged electrical connector 1.2. An accumulation of dirt or debris in the recessed area around the pintle. 1.3. A build-up of burnt engine oil on the shaft of the pintle which may cause the pintle to stick and not move freely within the proper range of travel.
2. Holding the CMP magnet with the pintle facing upward, measure the pintle retracted position (a). Record the dimension.

Camshaft Position Actuator Magnet Replacement — figure 28

3. Holding the CMP magnet with the pintle facing downward, measure the pintle extended position (b). Record the dimension.
4. Subtract the retracted dimension (a) from the extended dimension (b) to determine pintle travel. A properly moving pintle will travel 3.0–5.5 mm (0.12–0.22 in).
5. If the pintle of the CMP magnet is binding or does not move within the proper range of travel, replace the CMP magnet as an assembly.

Camshaft Position Actuator Magnet Replacement — figure 29

6. Clean all excess dirt and debris from the water pump (1).

7. Inspect the water pump (1) for the following conditions: 7.1. Water pump gasket and hose sealing surfaces for excessive scratches or gouging 7.2. Restrictions within the internal coolant passages 7.3. Excessive side-to-side play in the pulley shaft 7.4. Leakage at the water inlet housing or rear cover 7.5. Leakage at the water outlet housing or water pump outlet 7.6. Leakage at the water pump vent hole A stain around the vent hole is acceptable. If leakage or dripping occurs with the engine running and the cooling system pressurized, replace the water pump (1). 7.7. Wear or damage in the belt tracking area of the water pump pulley Installation Procedure

8. Camshaft Position Actuator Magnet Gasket (3) » Install NEW

9. Camshaft Position Actuator Magnet (2) » Install

Caution

Refer to Fastener Caution.

3. Camshaft Position Actuator Magnet Bolt (1) » Install and tighten [3x] — Fastener Specifications

4. Connect the camshaft position actuator magnet electrical connector.

5. Water Pump Gasket (2) » Install NEW [2x]

6. Water Pump (1) » Install

7. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 7.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 7.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 7.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 7.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

8. Water Pump Housing Bolt (1) » Tighten in sequence [6x] — Fastener Specifications

9. Air Conditioning Compressor (1) » Install

10. Air Conditioning Compressor Stud (3) » Install and tighten — Fastener Specifications

11. Air Conditioning Compressor Nut (2) » Install and tighten — Fastener Specifications

12. Air Conditioning Compressor Bolt (1) » Install and tighten — Fastener Specifications

13. Engine Coolant Temperature Sensor Electrical Connector (1) » Connect

14. Radiator Inlet Hose (3) @ » Install

15. Engine Coolant Air Bleed Hose (2) @ Water Pump » Install

16. Hose Clamp (1) » Engage [2x] — Hose Clamp Replacement Guidelines - Spring Type

17. Radiator Outlet Hose (2) @ Water Pump » Install

18. Radiator Outlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

19. Heater Water Auxiliary Pump Hose (3) @ Water Pump » Install

20. Heater Inlet Hose (2) @ Water Pump » Install

21. Hose Clamp (1) » Engage [2x] — Hose Clamp Replacement Guidelines - Spring Type

22. Generator (1) » Install

23. Generator Bolt (1) » Install and tighten — Fastener Specifications

24. Generator Bolt (2) » Install and tighten — Fastener Specifications

25. Starter Solenoid Cable (2) » Install

26. Battery Positive Cable Nut (1) » Install and tighten — Fastener Specifications

27. Electrical Connector (3) » Connect

Note

The OEM replacement stretchy belt is packaged with a disposable installation tool and installation instructions.

28. Install the accessory drive auxiliary belt following the instructions included with the belt.

Camshaft Position Actuator Magnet Replacement — figure 30

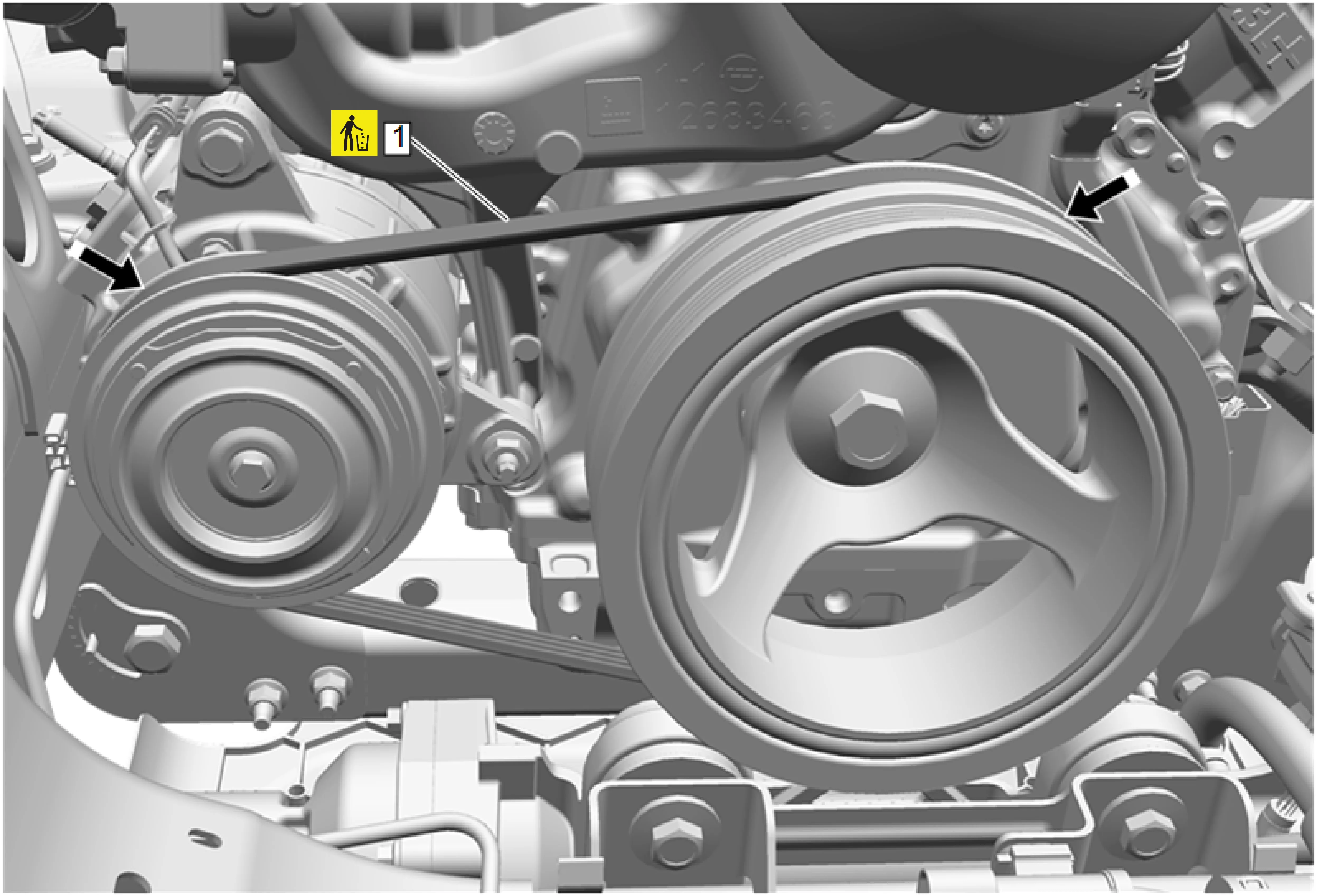

29. Inspect the accessory drive auxiliary belt (1) for proper installation and alignment.

Camshaft Position Actuator Magnet Replacement — figure 31

30. Rotate the balancer (1) an additional 360 degrees to ensure proper accessory drive auxiliary belt installation.

Camshaft Position Actuator Magnet Replacement — figure 32

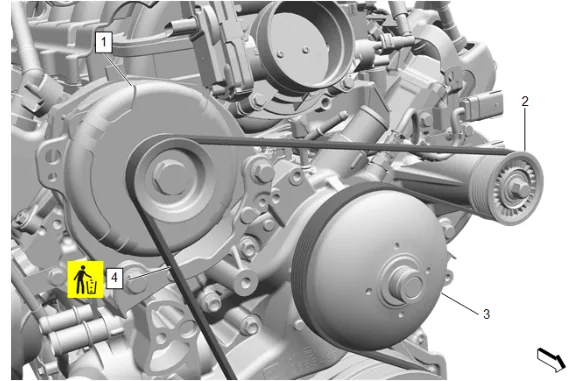

31. Position the accessory drive primary belt (4) on the belt idler pulley (2), fan and water pump pulley (3) and generator (1).

Camshaft Position Actuator Magnet Replacement — figure 33

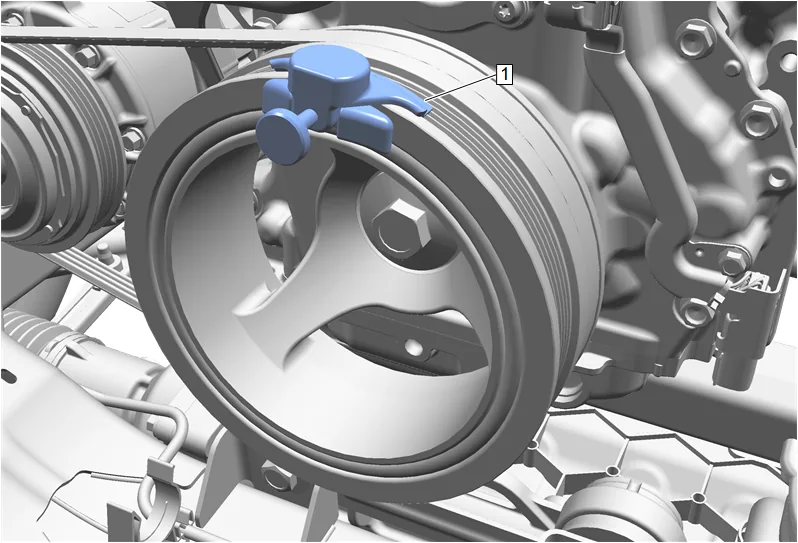

32. Install the EN-51767-2 Universal Stretchy Belt Installer (1) onto the crankshaft balancer.

Camshaft Position Actuator Magnet Replacement — figure 34

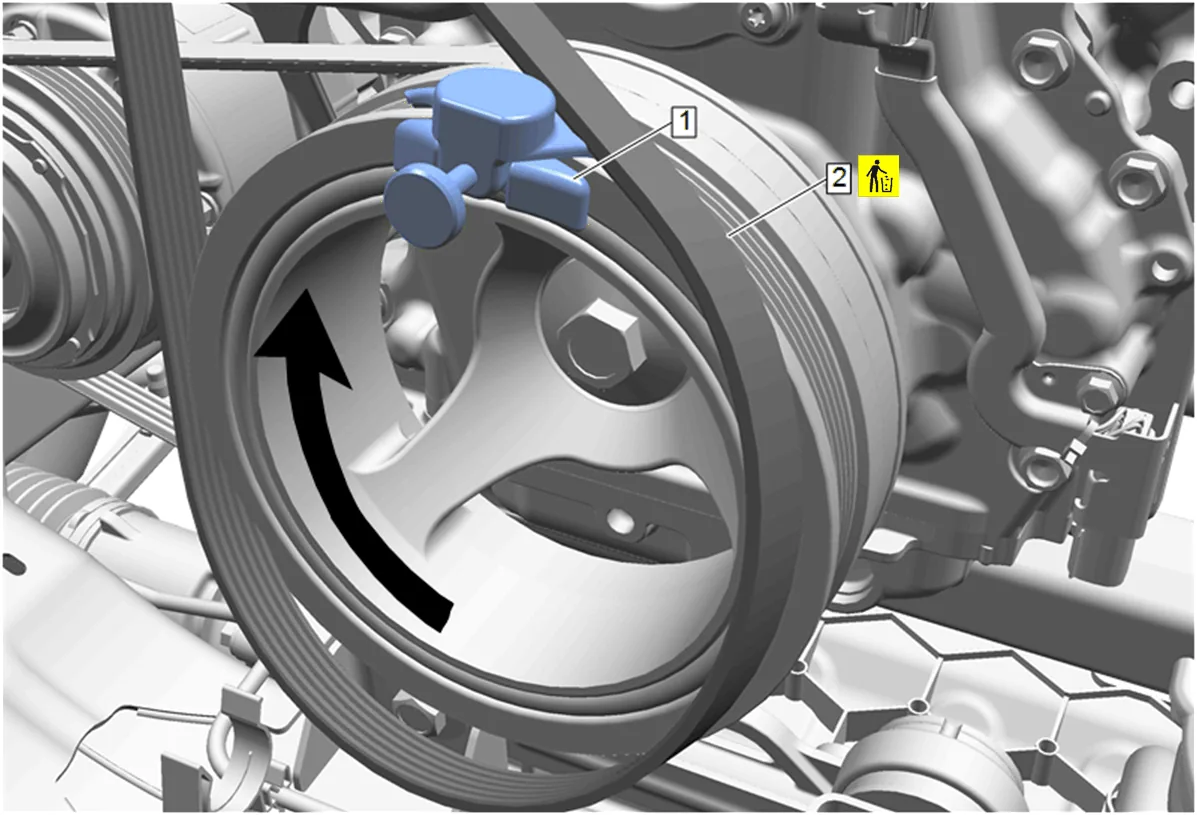

33. Position the accessory drive primary belt (2) on the crankshaft balancer.

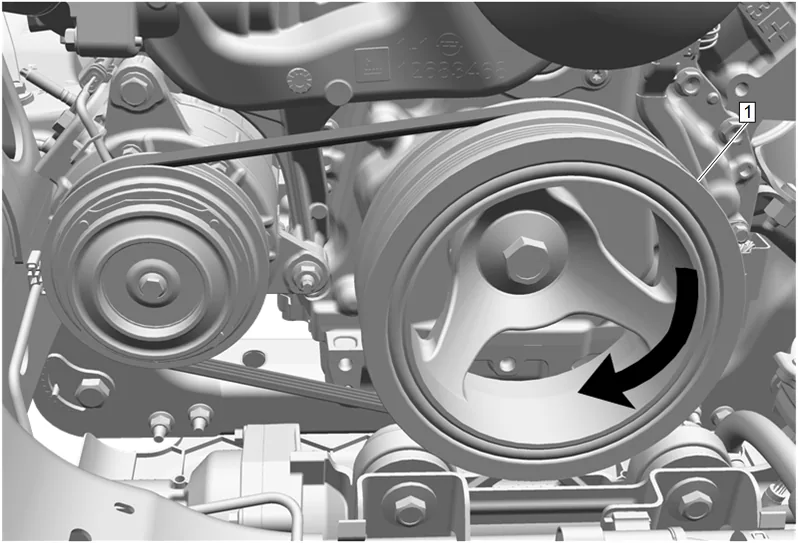

34. Slowly rotate the crankshaft balancer in a clockwise direction until the accessory drive primary belt (2) fully seats on the crankshaft balancer.
35. Remove the EN-51767-2 Universal Stretchy Belt Installer (1) from the crankshaft balancer.

Camshaft Position Actuator Magnet Replacement — figure 35

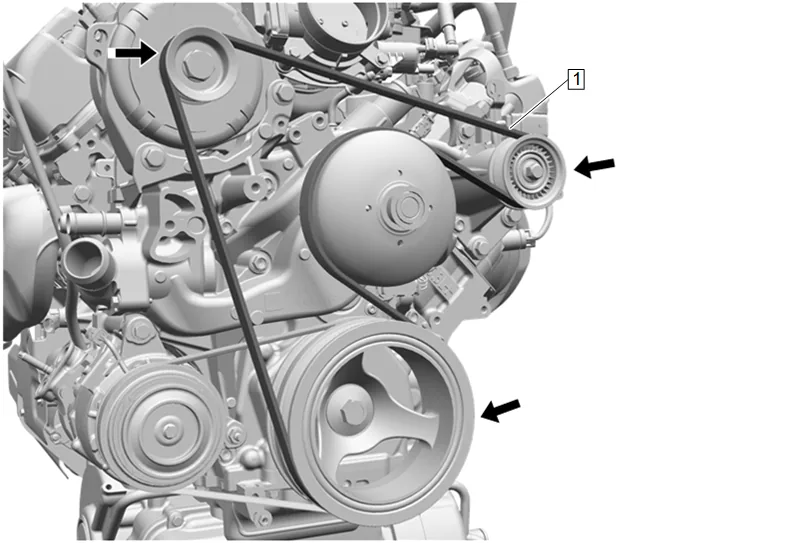

36. Inspect the accessory drive primary belt (1) for proper installation and alignment.

Camshaft Position Actuator Magnet Replacement — figure 36

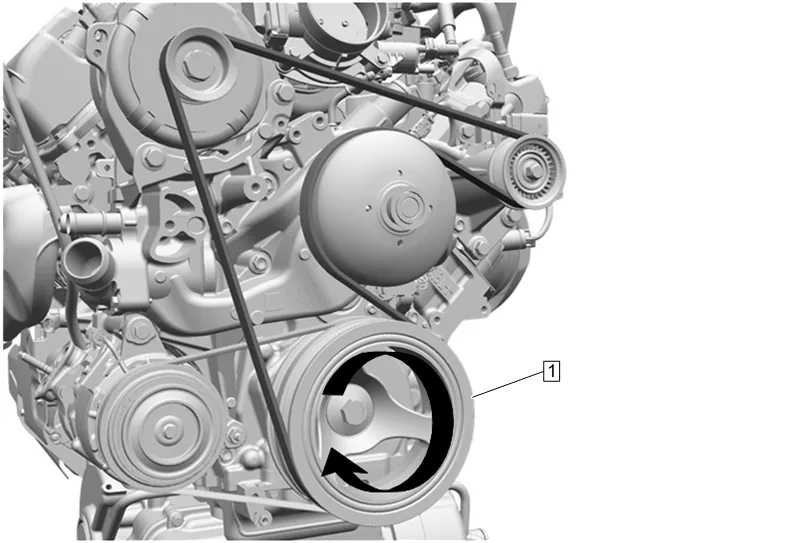

37. Rotate the crankshaft balancer (1) and additional 360 degrees to ensure proper accessory drive primary belt installation.

38. Engine Cooler Fan (1) @ Engine Radiator » Install

39. Engine Coolant Fan Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

40. Transmission Fluid Cooler Pipe Clip (1) » Secure

41. Transmission Fluid Cooler Pipe Clip (2) » Install [2x]

42. Transmission Fluid Cooler Pipe Bolt (1) » Install and tighten — Fastener Specifications

43. Remove caps installed to prevent contamination.

44. Engine Oil Cooler Hose (1) @ Engine Radiator » Install [2x]

45. Engine Oil Cooler Pipe Bracket Bolt (3) » Install and tighten — Fastener Specifications

46. Engine Oil Cooler Retainer (2) » Install NEW [2x]

47. Engine Oil Cooler Hose Clip (1) » Secure

Note

Some components not shown for graphic clarity.

48. Position the wiring harness. (3)
49. Electrical Connector (1) » Connect
50. Wiring Harness Retainer (2) » Install [2x]

Note

Some components not shown for graphic clarity.

51. Position the wiring harness. (2)
52. Electrical Connector (3) » Connect
53. Wiring Harness Retainer (1) » Install [2x]

Note

Some components not shown for graphic clarity.

54. Radiator Inlet Hose (3) @ Engine Radiator » Install

55. Radiator Inlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

56. Radiator Inlet Hose Clip (2) » Install

57. Radiator Surge Tank Outlet Hose (3) » Move into position

58. Radiator Surge Tank Outlet Hose Clip (2) » Install [2x]

59. Air Cleaner Outlet Duct (3) » Install

60. Air Cleaner Outlet Duct Clamp (2) » Tighten [2x] — Fastener Specifications

61. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

62. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

63. Install the engine wiring harness to the air cleaner outlet duct bracket.

64. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

65. Fill the cooling system. Cooling System Draining and Filling

66. Start the engine and check for coolant leaks.
